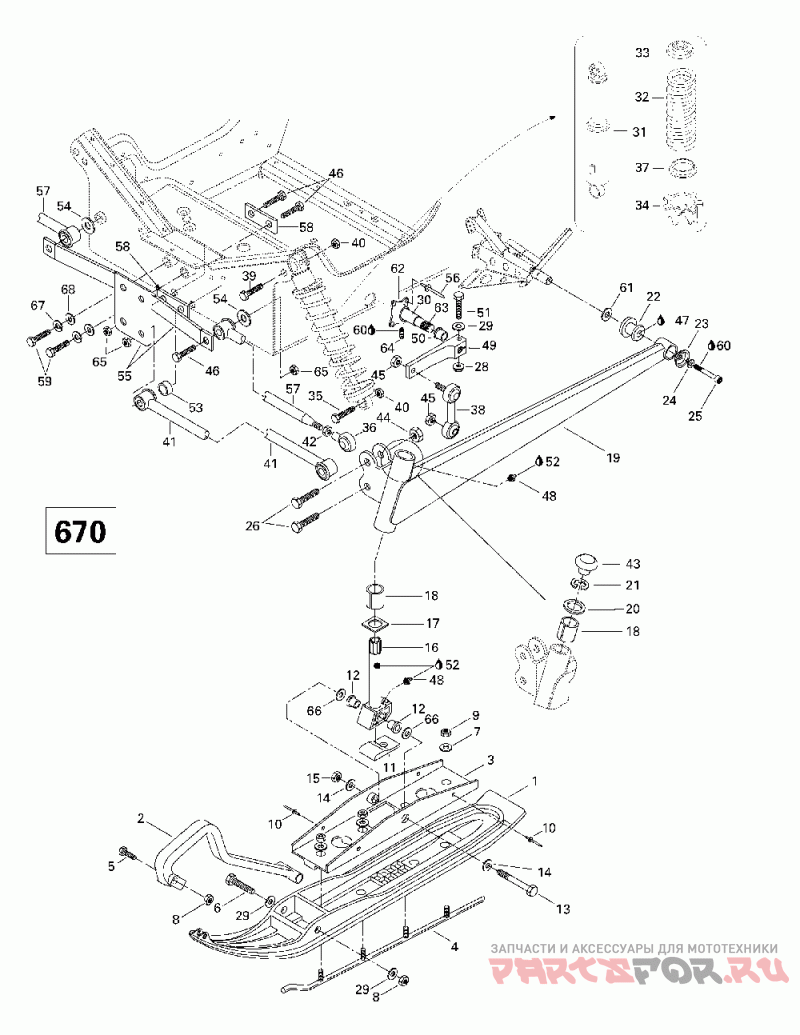

07- front suspension and ski (670)

Ski-Doo (Bombardier) MX Z 500/583/670

Ski-Doo (Bombardier)
#oem кодцена
1
505070189
Ski Plast.flex *ski-liner Flex Mx Z 670.
2
505070963
Poignee *handle Mx Z 670.
3
505071118
Douille *bushing Mx Z 670.
4
860501900
Ens.lisse Carb.*kit-runner Carbide Mx Z 670.
5
207085044
Screw-hex.cap Din.931 Mx Z 670.
6
230080044
Screw-hex.cap Din.931 Mx Z 670.
7
234001410
0asher-flat Din.125a Mx Z 670.
8
232581414
Nut-stop Elastic Din.985 Mx Z 670.
9
233601416
Nut-locking Elastic Din.982 Mx Z 670.
10
293150100
Rivet-pop 3/16 *pop Rivet 3/16 Mx Z 670.
11
570053300
Butee De Ski *stopper-ski Mx Z 670.
12
414530600
Coussinet *cushion Mx Z 670.
13
230022044
Screw-hex.cap Iso.4014 Mx Z 670.
14
506136400
Rondelle *washer Mx Z 670.
15
232521414
Nut-stop Elastic Din.985 Mx Z 670.
16
506144500
Jambe De Ski *leg-ski Mx Z 670.
17
506081200
Plaque Usure *plate-wear Mx Z 670.
18
572069900
Coussinet *cushion Mx Z 670.
19
505070195
Bras Osc.ga. *arm-swing Lh Mx Z 670.
506144300
Bras Osc.dr. *arm-swing Rh Mx Z 670.
20
506080900
Rondelle Retenu*washer-retaine Mx Z 670.
21
371910400
Circlip *circlip Mx Z 670.
22
570062200
Amort. Caout. *damper Mx Z 670.
23
506079600
Coupole *cup Mx Z 670.
24
234181401
Washer-lock Din.127b Mx Z 670.
25
205082544
Screw-socket Hd.din.912 Mx Z 670.
26
222025565
Screw-hex.cap Iso.4014 Mx Z 670.
28
233281414
Nut-flange Elastic Din.6926 Mx Z 670.
29
234081410
Washer-flat Din.125a Mx Z 670.
30
506136200
Tube Principal *tube-main Mx Z 670.
31
415082200
Amort. Avant *shock-front Mx Z 670.
32
415076000
Ressort *spring Mx Z 670.
33
706200881
Butee Ressort *spring Stopper Mx Z 670.
34
505070150
Came 45 Degres *cam 45 Degres Mx Z 670.
35
207005544
Screw-hex.cap Iso.4014 Mx Z 670.
36
415042500
Joint Rotule *ball Joint Mx Z 670.
37
517184300
Guide Ressort *guide-spring Mx Z 670.
38
415042300
Joint Rotule *ball Joint Mx Z 670.
39
207006044
Screw-hex.cap Iso.4014 Mx Z 670.
41
580650800
Barreau Fixe As*arm-fixed Assy Mx Z 670.
42
232170411
Nut-jam Hexagonal Din.439b Mx Z 670.
43
572091300
Bouchon *cap Mx Z 670.
46
732601113
Screw-hex.cap Iso.4014 Mx Z 670.
47
293550030
Graisse *grease Mx Z 670.
48
408200700
Graisseur *grease Fitting Mx Z 670.
49
506145600
Levier Stabil.u*lever-stabil.mach. Mx Z 670.
506141100
Levier Stabil.u*lever-stabil.mach. Mx Z 670.
50
415039500
Coussinet *cushion Mx Z 670.
561723300
Coussinet Retr.*cushion-rew. Mx Z 670.
51
207084544
Screw-hex.cap Din.931 Mx Z 670.
52
413706100
Graisse Lith. *grease Lith. Mx Z 670.
53
506146300
Entretoise *spacer Mx Z 670.
54
234021410
Washer-flat Din.125a Mx Z 670.
55
415065300
Plaque Racc.p. *plate-link Mx Z 670.
56
390404900
Rivet-pop 1/4 *rivet-pop 1/4 Mx Z 670.
57
580665900
Barreau Ass. *arm-assy Mx Z 670.
58
415061100
Plaque Racc.inf*plate-link Low Mx Z 670.
59
207085544
Screw-hex.cap Din.931 Mx Z 670.
60
293800060
Loctite 243 *loctite-243 Mx Z 670.
61
503146700
Rondelle *washer Mx Z 670.
62
506139000
Logement Usine *housing-mach. Mx Z 670.
63
506134300
Stabilisateur *stabilisator Mx Z 670.
64
414440800
Screw-set Din 916-a2 Mx Z 670.
66
732900048
Rondelle *washer Mx Z 670.
68
234082410
Washer-flat Din.9021b Mx Z 670.
505070189
Ski Plast.flex *ski-liner Flex Mx Z 670.
27
232521414
Nut-stop Elastic Din.985 Mx Z 670.
40
233601416
Nut-locking Elastic Din.982 Mx Z 670.
44
232521414
Nut-stop Elastic Din.985 Mx Z 670.
45
233601416
Nut-locking Elastic Din.982 Mx Z 670.
65
232521414
Nut-stop Elastic Din.985 Mx Z 670.
67
234181401
Washer-lock Din.127b Mx Z 670.
