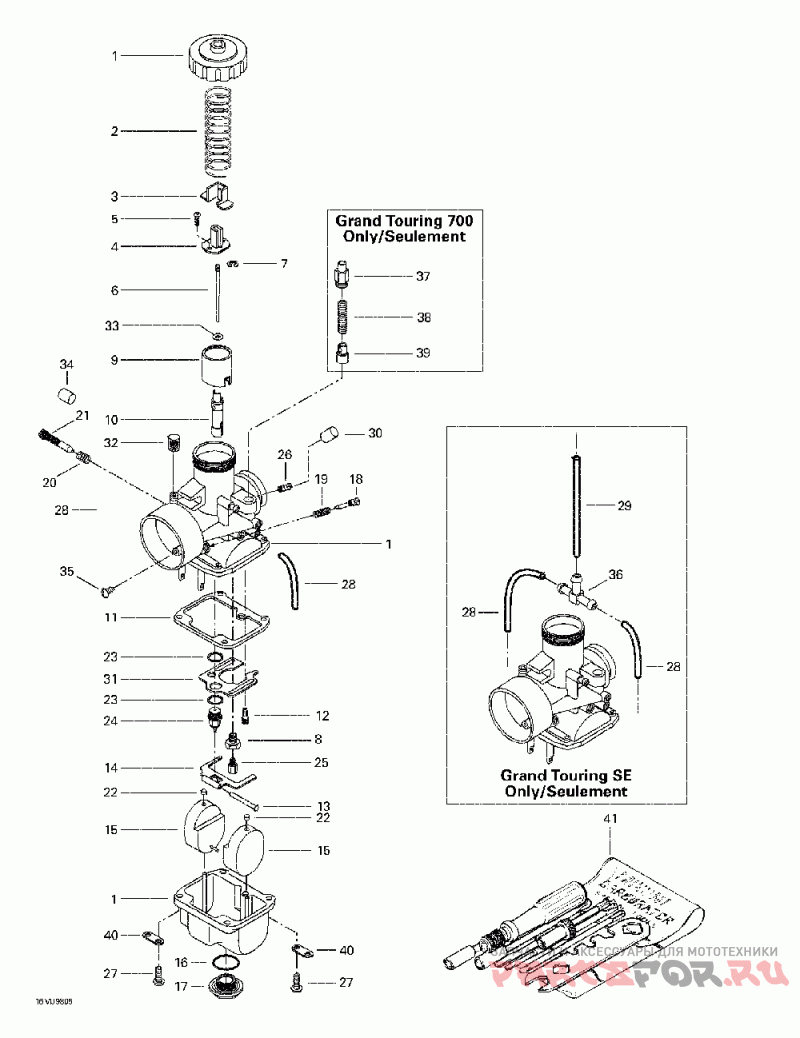

Карбюратор

Ski-Doo (Bombardier) Grand Touring SE

Ski-Doo (Bombardier)
#oem кодцена
1
403133000
Carb.vm-38 *carb-vm-38 Includes 1 - 40. Grand Touring 700.
403133100
Carb.vm-38 *carb-vm-38 Grand Touring 700.
1
403132100
Carb.vm-38 *carb-vm-38 Includes 1 - 36. Grand Touring Se.
1
404105100
Крышка
2
404154800
Пружина
3
404122100
Крышка
4
404160800
Connecteur *connector
5
404121300
Vis W.rondelle*screw-with Washer
6
404161800
Aiguille 6deh05*needle Grand Touring 700.
404157900
Aiguille 6dey02*needle Grand Touring Se.
7
404152400
Rondelle E *ring-e
8
404105500
Vis Guide *screw-guide
9
404131300
Tiroir Acc.2.5 *piston-val.2.5
10
404159000
Gicleur Aiguil.*jet Needle Grand Touring 700.
404161805
Gicleur Aiguil.*jet Needle Grand Touring Se.
11
404104700
Прокладка
12
404109500
Gicleur Ralenti*jet-pilot 50
13
404103300
Палец крепления рычага
14
404105000
Levier Flotteur*lever-float
15
404105400
Flotte *float
16
404101500
Шайба
17
404105600
Vis Bouchon *screw-drain Plug
18
404149000
Vis Air *screw-air
19
404139800
Пружина
20
404101700
Пружина
21
404102800
Vis Ajustement*screw-idle Speed
22
404105800
Крышка
23
404101600
Rondelle Siege *washer-seat
24
404147400
Pointeau Vs 1.5*valve Needle
25
404107800
Gicleur Mj 310 *jet-main 310 Grand Touring 700.
404101200
Gicleur Mj 300 *jet-main 300
26
404153400
Raccord *nipple
27
404102000
Screw-w/lock *screw-w/lockwasher
28
404161880
Boyau *hose Grand Touring 700.
30
404154900
Крышка
32
404158900
Фильтр
33
404117000
Joint Tampon *packing
34
404152500
Крышка
35
404131700
Vis Bouchon *screw-plug Grand Touring Se.
36
404161807
Raccord *nipple Grand Touring Se.
37
404161100
Guide *guide Holder Grand Touring 700.
38
404127400
Ressort *spring Grand Touring 700.
39
404161000
Plongeur Ass. *plunger-assy Grand Touring 700.
40
404103000
Plaque *plate Grand Touring 700.
41
404112000
Комплект инструментов
404161880
Boyau *hose Grand Touring Se.
