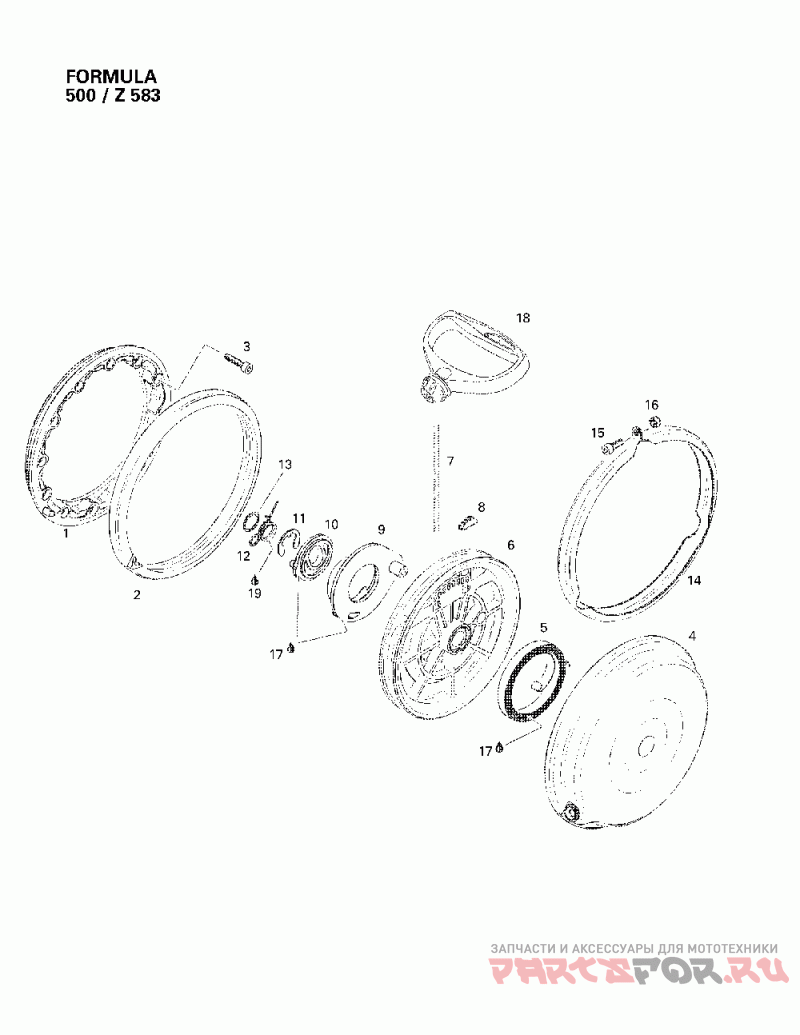

Ручной стартер

Ski-Doo (Bombardier) Formula 500

Ski-Doo (Bombardier)
#oem кодцена
1
420887448
Деталь Demarreur *rewind Starter Includes 1 - 16. Formula 500. Formula Z 583.
1
420810860
Деталь Flasque Con. *flange-con. Formula 500. Formula Z 583.
2
420860950
Деталь Bague Batteur *ring-damper Formula 500. Formula Z 583.
3
205062544
Деталь Screw-socket Hd.din.912 Formula 500. Formula Z 583.
4
205062044
Деталь Screw-socket Hd.din.912 Includes 4 - 13. Formula 500. Formula Z 583.
4
420944310
Деталь Washer-distance 6.7x14x3 Includes 4 - 13. Formula 500. Formula Z 583.
5
420939115
Деталь Ressort Rappel *spring-rewind Formula 500. Formula Z 583.
6
420852287
Деталь Poulie Demarrag*sheave-rope Formula 500. Formula Z 583.
7
412500200
Деталь Corde Demarreur*rope-starter Formula 500. Formula Z 583.
8
420852070
Деталь Coin *clamp-key Formula 500. Formula Z 583.
9
420852296
Деталь Cliquet *pawl Formula 500. Formula Z 583.
10
420852302
Деталь Barrure Cliquet*lock-pawl Formula 500. Formula Z 583.
11
420845300
Деталь Circlip *circlip Formula 500. Formula Z 583.
12
420938986
Деталь Ressort D Arret*spring-pawl Formula 500. Formula Z 583.
13
420945770
Деталь Bague D Arret *ring-lock Formula 500. Formula Z 583.
14
420851330
Деталь Bride *clamp Formula 500. Formula Z 583.
15
420241236
Деталь Screw-socket M6 X 16 Formula 500. Formula Z 583.
16
232561414
Деталь Nut-stop Elastic Din.985 Formula 500. Formula Z 583.
17
293550004
Деталь Graisse Dielect*grease-dielect Dc4 Formula 500. Formula Z 583.
18
572084400
Деталь Poignee Demar. *grip-starter Formula 500. Formula Z 583.
4
420887448
Деталь Demarreur *rewind Starter Includes 4 - 13. Formula 500. Formula Z 583.
10
420852301
Деталь Barrure Cliquet*lock-pawl Formula 500. Formula Z 583.
