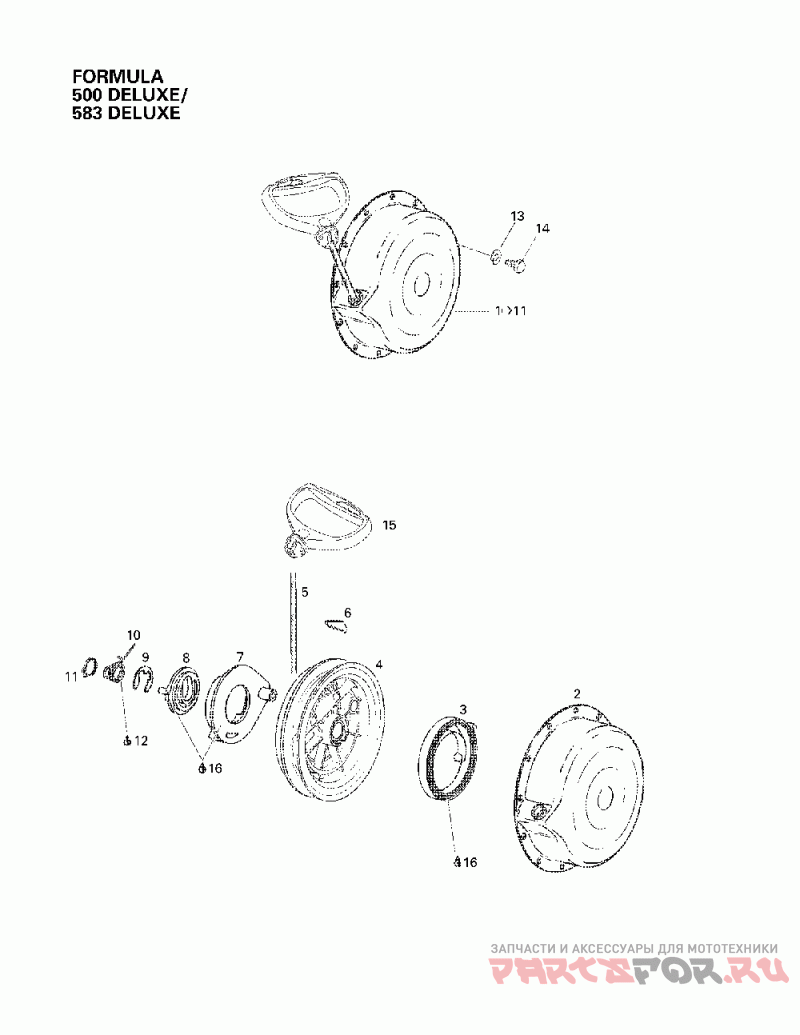

04- rewind starter #2

Ski-Doo (Bombardier) Formula 500

Ski-Doo (Bombardier)
#oem кодцена
1
420887454
Деталь Demar.rappel *starter-rewind Includes 1 - 11. Formula 500 Deluxe. Formula 583 Deluxe.
3
420939115
Деталь Ressort Rappel *spring-rewind Formula 500 Deluxe. Formula 583 Deluxe.
4
420852283
Деталь Poulie Demarrag*sheave-rope (pulley) Formula 500 Deluxe. Formula 583 Deluxe.
5
412500200
Деталь Corde Demarreur*rope-starter Formula 500 Deluxe. Formula 583 Deluxe.
6
420852070
Деталь Coin *clamp-key Formula 500 Deluxe. Formula 583 Deluxe.
7
420852296
Деталь Cliquet *pawl Formula 500 Deluxe. Formula 583 Deluxe.
8
420852302
Деталь Barrure Cliquet*lock-pawl Formula 500 Deluxe. Formula 583 Deluxe.
9
420845300
Деталь Circlip *circlip Formula 500 Deluxe. Formula 583 Deluxe.
10
420938986
Деталь Ressort D Arret*spring-pawl Formula 500 Deluxe. Formula 583 Deluxe.
11
420945770
Деталь Bague D Arret *ring-lock Formula 500 Deluxe. Formula 583 Deluxe.
13
420945751
Деталь Washer-lock Din.128 Formula 500 Deluxe. Formula 583 Deluxe.
14
207161644
Деталь Screw-hex.cap Din.933 Formula 500 Deluxe. Formula 583 Deluxe.
15
572084400
Деталь Poignee Demar. *grip-starter Formula 500 Deluxe. Formula 583 Deluxe.
16
293550004
Деталь Graisse Dielect*grease-dielect Dc4 Formula 500 Deluxe. Formula 583 Deluxe.
2
420887454
Деталь Demar.rappel *starter-rewind Formula 500 Deluxe. Formula 583 Deluxe.
8
420852301
Деталь Barrure Cliquet*lock-pawl Formula 500 Deluxe. Formula 583 Deluxe.
