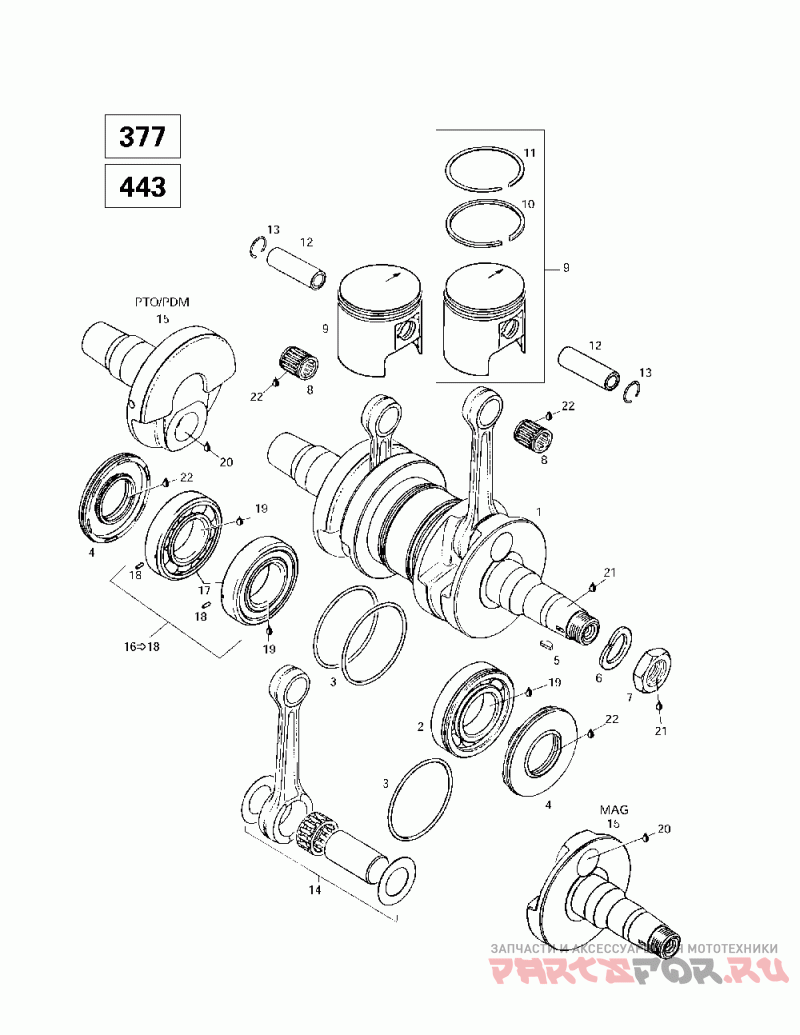

01- crankshaft (377, 443)

Ski-Doo (Bombardier) Touring E

Ski-Doo (Bombardier)
#oem кодцена
1
420889630
Деталь Vilebrequin *crankshaft Touring E. Touring E Lt (2). Touring Le.
2
420832570
Деталь Roulement Bille*ball Bearing Touring E. Touring E Lt (2). Touring Le.
3
293300022
Деталь Joint Torique *o-ring Touring E. Touring E Lt (2). Touring Le.
4
420831952
Деталь Anneau Etanche *seal-oil Touring E. Touring E Lt (2). Touring Le.
5
420246055
Деталь Clavette *key-woodruff Touring E. Touring E Lt (2). Touring Le.
6
420945759
Деталь Rondelle-frein *washer-lock 22 Touring E. Touring E Lt (2). Touring Le.
7
420842234
Деталь Nut-hex.m22 X 1, 5 Touring E. Touring E Lt (2). Touring Le.
8
420932904
Деталь Roul.aiguille *needle Bearing Touring E. Touring E Lt (2). Touring Le.
9
420890060
Деталь Piston 61.93 *piston 61.93 Includes 9 - 11. Touring E. Touring E Lt (2).
420887485
Деталь Piston *piston Touring Le.
420890061
Деталь Piston 62.18 *piston 62.18 Touring E. Touring E Lt (2).
420890062
Деталь Piston 62.43 *piston 62.43 Touring E. Touring E Lt (2).
420887486
Деталь Piston *piston Touring Le.
420887487
Деталь Piston *piston Touring Le.
10
420915895
Деталь Segment R 62.00*ring-r 62.00 Touring E. Touring E Lt (2).
420915896
Деталь Segment R 62.25*ring-r 62.25 Touring E. Touring E Lt (2).
420915897
Деталь Segment R 62.5 *ring-r 62.5 Touring E. Touring E Lt (2).
420915960
Деталь Segment R 67.5 *ring-r 67.5 Touring Le.
420915961
Деталь Segment R 67.75*ring-r 67.75 Touring Le.
420915962
Деталь Segment R 68 *ring-r 68 Touring Le.
11
420215215
Деталь Segment Semi-tr*ring-semi Trap Touring E. Touring E Lt (2).
420215216
Деталь Segment Semi-tr*ring-semi Trap Touring E. Touring E Lt (2).
420215217
Деталь Segment Semi-tr*ring-semi Trap Touring E. Touring E Lt (2).
420915845
Деталь Segment L 67.5 *ring-l 67.5 Touring Le.
420915846
Деталь Segment L 67.75*ring-l 67.75 Touring Le.
420915847
Деталь Segment L 68.0 *ring-l 68.0 Touring Le.
12
420916260
Деталь Axe De Piston *pin-gudgeon Touring E. Touring E Lt (2).
420916136
Деталь Axe De Piston *pin-piston Touring Le.
13
420945735
Деталь Circlip Piston *circlip-piston Touring E. Touring E Lt (2). Touring Le.
14
420889634
Деталь Ens.tige Rep. *kit-rod Repair Touring E. Touring E Lt (2). Touring Le.
15
420818204
Деталь Vilebrequin Pto*crankshaft-pto Touring E. Touring E Lt (2). Touring Le.
420819010
Деталь Demi-vileb.mag.*half-crank Mag Touring E. Touring E Lt (2). Touring Le.
16
420832573
Деталь Roulement Bille*ball Bearing Includes 16 - 18.
18
420929972
Деталь Goupille Ressor*pin-roll
20
413711400
Герметик loctite-648
21
293800060
Фиксатор резьбы loctite-243
22
413707000
Смазка Corning 111
7
420842239
Деталь Ecrou*hex Nut M22x1, 5 Touring E. Touring E Lt (2). Touring Le.
17
420832573
Подшипник
