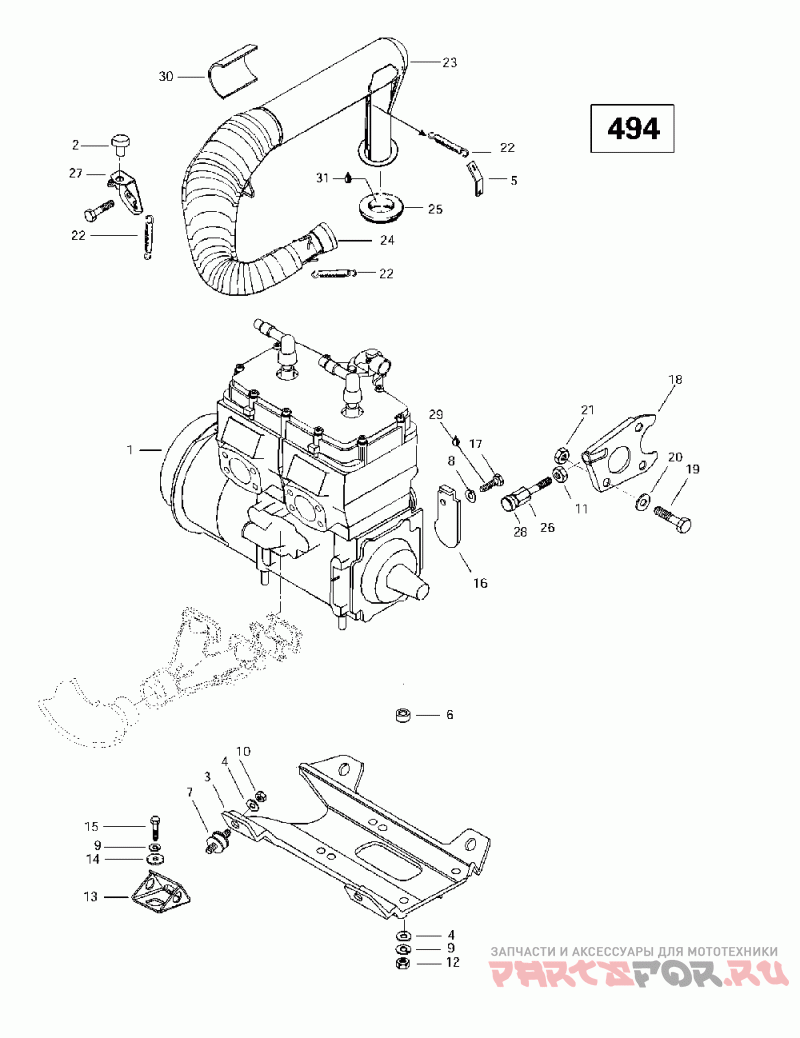

Крепление двигателя и глушитель (494)

Ski-Doo (Bombardier) Summit 500/583/670

Ski-Doo (Bombardier)
#oem кодцена
2
514048200
Butoir *bumper Summit 500.
3
512054400
Socle *support-engine Summit 500.
4
234001410
0asher-flat Din.125a Summit 500.
5
514034000
Attache Ressort*bracket-spring Summit 500.
6
503128100
Entretoise *spacer Summit 500.
7
570128700
Tampon Ancrage *mount-rubber Summit 500.
8
234161471
Washer-lock Black Din.127b Summit 500.
9
234100602
Washer-lock Spring Din.128a-a2 Summit 500.
10
233601416
Nut-locking Elastic Din.982 Summit 500.
11
732610019
Nut-jam Hexagonal Rh. Summit 500.
12
232006414
Nut-hexagonal Din.934 Summit 500.
13
512050900
Supp.moteur Sou*supp-engine Weld Summit 500.
14
512056700
Rondelle-frein *washer-lock Summit 500.
15
207102544
Screw-hex.cap Iso.4017 Summit 500.
16
512052900
Plaque Butee *plate Stopper Summit 500.
17
207161644
Screw-hex.cap Din.933 Summit 500.
18
512055600
Plaque App.soud*plate-weld Summit 500.
19
207182544
Screw-hex.cap Din.933 Summit 500.
20
234081410
Washer-flat Din.125a Summit 500.
21
232581414
Nut-stop Elastic Din.985 Summit 500.
22
415107100
Ressort *spring Summit 500.
23
514048500
Tuyau Echap.ass*pipe-muffler Assy Includes 23 - 24. Summit 500.
24
420879991
Rotule Femelle *joint-female Summit 500.
25
570039000
Grommet-exhaust D70 Summit 500.
26
512052400
Vis De Butee *screw-stopper Summit 500.
27
514048600
Support Tuyau *support-pipe Summit 500.
28
512059056
Butee *stopper Summit 500.
28
512059057
Rondelle *washer Summit 500.
29
293800005
Loctite 271 *loctite-271 Summit 500.
30
414746400
Feuille Reflect*sheet-reflect. Summit 500.
31
293550030
Graisse *grease Summit 500.
