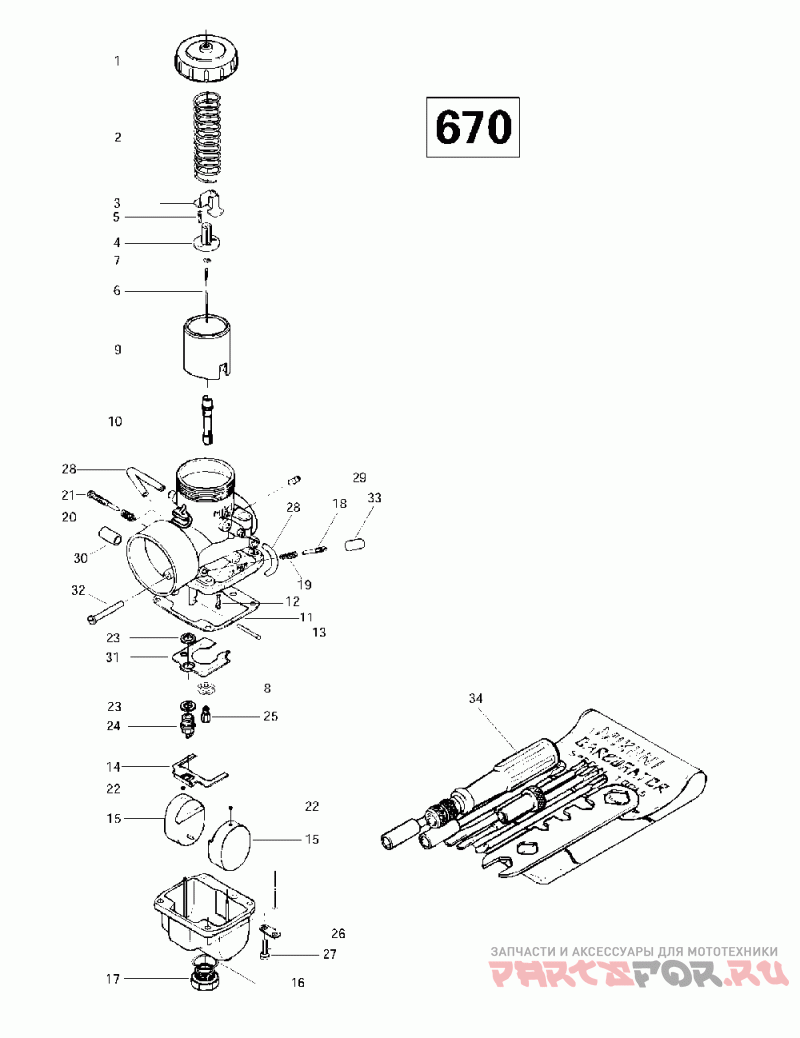

02- carburetors (670)

Ski-Doo (Bombardier) Summit 500/583/670

Ski-Doo (Bombardier)
#oem кодцена
1
403131600
Carb.vm-40 *carb-vm-40 Includes 1 - 33. Summit 670.
1
404126800
Couvercle Carb.*top-mix.chamb. Summit 670.
2
404156500
Ressort *spring Summit 670.
3
404128100
Couvercle *cover Summit 670.
4
404160800
Connecteur *connector Summit 670.
5
404121300
Vis W.rondelle*screw-with Washer Summit 670.
6
404157700
Aiguille *needle Summit 670.
7
404152200
Rondelle E *ring-e Summit 670.
8
404116700
Rondelle *washer Summit 670.
9
404132300
Tiroir Acc.2.5 *piston-val.2.5 Summit 670.
10
404147600
Gicleur Aiguil.*jet Needle Summit 670.
11
404104700
Joint *gasket Summit 670.
12
404148100
Gicleur Ralenti*jet-pilot 75 Summit 670.
13
404103300
Goupille Levier*pin-lever Summit 670.
14
404105000
Levier Flotteur*lever-float Summit 670.
15
404105400
Flotte *float Summit 670.
16
404112800
Rondelle *washer Summit 670.
17
404112900
Vis Bouchon *screw-drain Plug Summit 670.
18
404149000
Vis Air *screw-air Summit 670.
19
404139800
Ressort *spring Summit 670.
20
404101700
Ressort *spring Summit 670.
21
404151900
Vis *screw-adj. Summit 670.
22
404105800
Capuchon *cap Summit 670.
23
404101600
Rondelle Siege *washer-seat Summit 670.
24
404147400
Pointeau Vs 1.5*valve Needle Summit 670.
25
404106300
Gicleur Mj 380 *jet-main 380 Summit 670.
404106200
Gicleur Mj 370 *jet-main 370 Summit 670.
26
404103000
Plaque *plate Summit 670.
27
404102000
Screw-w/lock *screw-w/lockwasher Summit 670.
28
404109800
Tuyau Aeration *tube-air Vent Summit 670.
29
404153400
Raccord *nipple Summit 670.
30
270500095
Capuchon Obtur.*cap-closure Summit 670.
31
404112700
Chicane *baffle Plate Summit 670.
32
404131700
Vis Bouchon *screw-plug Summit 670.
33
404155200
Bouchon *cap Summit 670.
34
404112000
Trousse Outils *tool Kit Summit 670.
