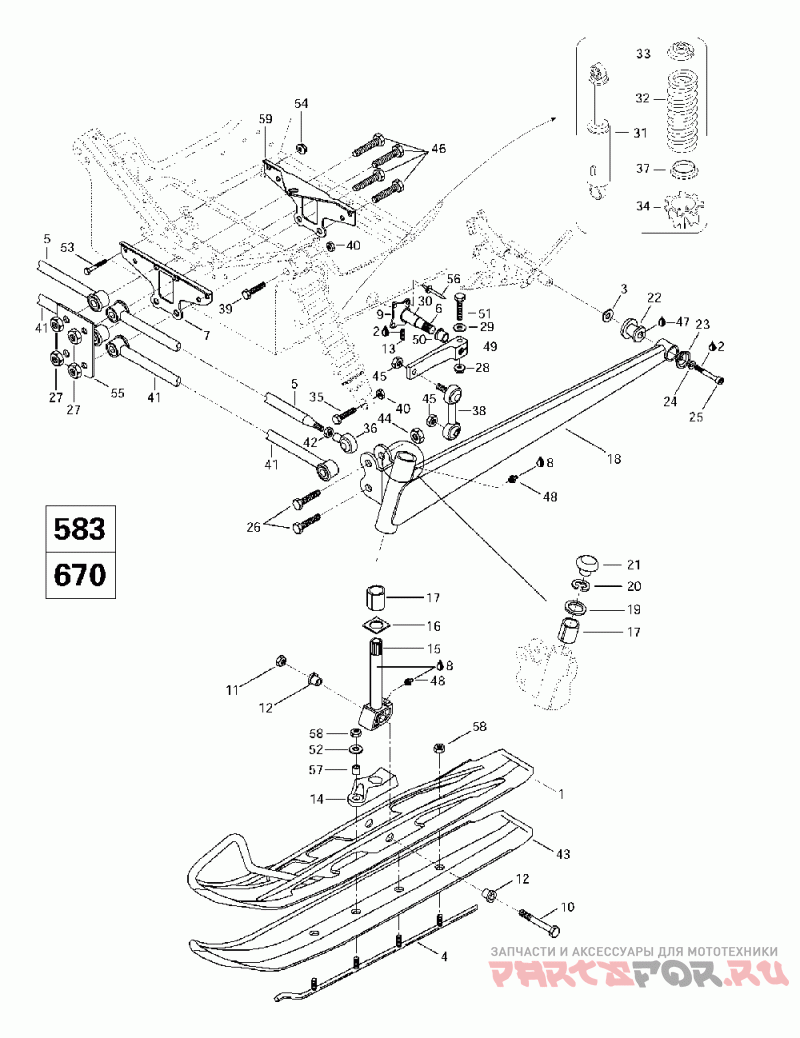

07- front suspension and ski (583, 670)

Ski-Doo (Bombardier) MX Z 440 F/Z 583/Z 670 1997

Ski-Doo (Bombardier)
#oem кодцена
1
505066610
Ski Soude Etroi*ski-weld.narrow Mx Z 583. Mx Z 670.
2
293800060
Loctite 243 *loctite-243 Mx Z 583. Mx Z 670.
3
503146700
Rondelle *washer Mx Z 583. Mx Z 670.
4
860505900
Ens.lisse 1/2ca*kit-runner 1/2 Car.4 In Mx Z 583. Mx Z 670.
5
580649900
Barreau Ass. *arm-assy Mx Z 583. Mx Z 670.
6
506134300
Stabilisateur *stabilisator Mx Z 583. Mx Z 670.
7
517254800
Plaque Racc.av.*plate-link Front Mx Z 583. Mx Z 670.
8
413706100
Graisse Lith. *grease Lith. Mx Z 583. Mx Z 670.
9
506139000
Logement Usine *housing-mach. Mx Z 583. Mx Z 670.
10
732601176
Screw-hexagonal Mx Z 583. Mx Z 670.
11
232521414
Nut-stop Elastic Din.985 Mx Z 583. Mx Z 670.
12
414530600
Coussinet *cushion Mx Z 583. Mx Z 670.
13
414440800
Screw-set Din 916-a2 Mx Z 583. Mx Z 670.
14
570053500
Butee De Ski *stopper-ski Mx Z 583. Mx Z 670.
15
506139200
Jambe De Ski *leg-ski Mx Z 583. Mx Z 670.
16
506081200
Plaque Usure *plate-wear Mx Z 583. Mx Z 670.
17
572069900
Coussinet *cushion Mx Z 583. Mx Z 670.
18
506136900
Bras Oscill.g.p*arm-swing Lh Paint Mx Z 583. Mx Z 670.
506136810
Bras Osc.dr. P.*arm-swing Rh Paint Mx Z 583. Mx Z 670.
19
506080900
Rondelle Retenu*washer-retaine Mx Z 583. Mx Z 670.
20
371910400
Circlip *circlip Mx Z 583. Mx Z 670.
21
572091300
Bouchon *cap Mx Z 583. Mx Z 670.
22
570062200
Amort. Caout. *damper Mx Z 583. Mx Z 670.
23
506079600
Coupole *cup Mx Z 583. Mx Z 670.
24
234181401
Washer-lock Din.127b Mx Z 583. Mx Z 670.
25
205082544
Screw-socket Hd.din.912 Mx Z 583. Mx Z 670.
26
222025565
Screw-hex.cap Iso.4014 Mx Z 583. Mx Z 670.
28
233281414
Nut-flange Elastic Din.6926 Mx Z 583. Mx Z 670.
29
234081410
Washer-flat Din.125a Mx Z 583. Mx Z 670.
30
506136200
Tube Principal *tube-main Mx Z 583. Mx Z 670.
31
414956700
Amortisseur Hpg*shock-hpg Mx Z 583. Mx Z 670.
32
414956300
Ressort Jaune *spring-yellow Mx Z 583. Mx Z 670.
33
706200881
Butee Ressort *spring Stopper Mx Z 583. Mx Z 670.
34
505070150
Came 45 Degres *cam 45 Degres Mx Z 583. Mx Z 670.
35
207005544
Screw-hex.cap Iso.4014 Mx Z 583. Mx Z 670.
36
415042500
Joint Rotule *ball Joint Mx Z 583. Mx Z 670.
37
517184300
Guide Ressort *guide-spring Mx Z 583. Mx Z 670.
38
415042300
Joint Rotule *ball Joint Mx Z 583. Mx Z 670.
39
207006044
Screw-hex.cap Iso.4014 Mx Z 583. Mx Z 670.
40
233601416
Nut-locking Elastic Din.982 Mx Z 583. Mx Z 670.
41
580650800
Barreau Fixe As*arm-fixed Assy Mx Z 583. Mx Z 670.
42
232170411
Nut-jam Hexagonal Din.439b Mx Z 583. Mx Z 670.
46
732601113
Screw-hex.cap Iso.4014 Mx Z 583. Mx Z 670.
47
293550030
Graisse *grease Mx Z 583. Mx Z 670.
48
408200700
Graisseur *grease Fitting Mx Z 583. Mx Z 670.
49
506134402
Levier Stabil.u*lever-stabil.mach. Mx Z 583. Mx Z 670.
506141100
Levier Stabil.u*lever-stabil.mach. Mx Z 583.
50
415039500
Coussinet *cushion Mx Z 583. Mx Z 670.
561723300
Coussinet Retr.*cushion-rew. Mx Z 583.
51
207084544
Screw-hex.cap Din.931 Mx Z 583. Mx Z 670.
52
234082410
Washer-flat Din.9021b Mx Z 583. Mx Z 670.
53
207065544
Screw-hex.cap Din.931 Mx Z 583. Mx Z 670.
54
233261414
Nut-flange Elastic Din.6926 Mx Z 583. Mx Z 670.
55
518306700
Support *support Mx Z 583. Mx Z 670.
57
506117300
Douille *bushing Mx Z 583. Mx Z 670.
58
232581414
Nut-stop Elastic Din.985 Mx Z 583. Mx Z 670.
59
517254900
Plaque Racc.ar.*plate-link Rear Mx Z 583. Mx Z 670.
4
505066720
Lisse Carbure *runner-carbide Mx Z 583. Mx Z 670.
27
232521414
Nut-stop Elastic Din.985 Mx Z 583. Mx Z 670.
44
232521414
Nut-stop Elastic Din.985 Mx Z 583. Mx Z 670.
45
233601416
Nut-locking Elastic Din.982 Mx Z 583. Mx Z 670.
