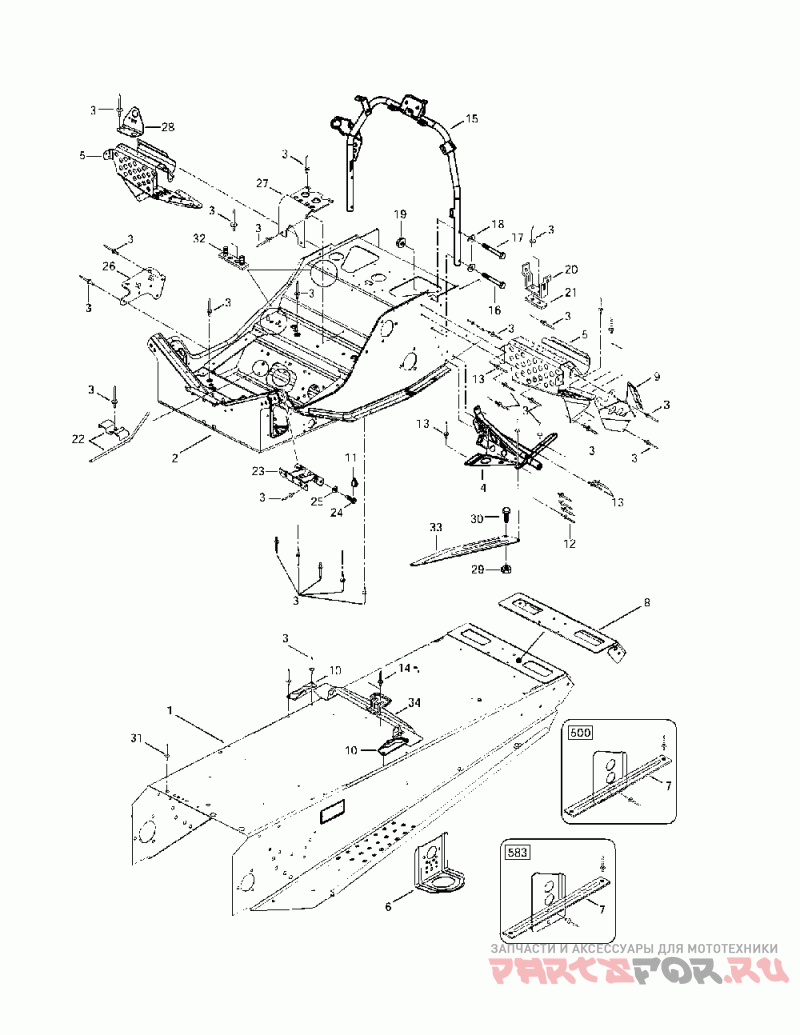

Рама

Ski-Doo (Bombardier) Grand Touring 500/583

Ski-Doo (Bombardier)
#oem кодцена
3
390402200
Заклепка 3/16
4
518320507
Support Gauche *lh.support
518320506
Support Droit *rh.support
5
518313804
Repose-pied Dr.*footrest-rh
518313805
Repose-pied Ga.*footrest-lh
6
518321495
Attache Avant *bracket-front
7
518316740
Att.arr.ga.sou.*brkt-rr Lh Weld Grand Touring 500.
518316741
Att.arr.dr.sou.*brkt-rr Rh Wel Grand Touring 500.
518316733
Att.arr.ga.sou.*brkt-rr Lh Weld Grand Touring 583.
518316734
Att.arr.dr.sou.*brkt-rr Rh Weld Grand Touring 583.
9
518308714
Plaque Sup. Ga.*plate-upper Lh
518308715
Plaque Sup. Dr.*plate-upper Rh
10
517266900
Att.reserv.dr.s*brkt-tank Rh Weld
517267000
Att.reserv.ga.s*brkt-tank Lh Weld
11
293800005
Смазка Loctite 271
12
390909200
Заклепка
13
390909100
Заклепка
14
390402400
Заклепка 3/16
15
518309200
Supp.guidon *supp-handle
16
207064044
Винт
17
207063544
Винт
18
234061410
Шайба
19
233261414
Гайка
20
518202100
Attache Gard.co*brkt-guard Belt
21
518207500
Renfort *reinforcement
22
518313700
Guide Corde Sou*guide-rope Weld.
23
518304741
Plaque Renf.sou*plate-reinf.weld
24
207182044
Винт
25
234181401
Шайба
26
518322635
Support Silenc.*support-muffler
27
518310400
Supp.silenc.adm*supp-air Intake
28
518310206
Attache Soup.ar*brkt.-valve
29
233251414
Гайка
30
207151644
Винт
31
390402300
Заклепка 3/16
32
518315300
Plaque Supp.sou*plate-supp.weld
33
518316709
Plaque Renf.dr.*plate-reinf.rh
518321959
Plaque Renf.ga.*plate-reinf.lh
34
518310208
Attache Siege *bracket-seat
