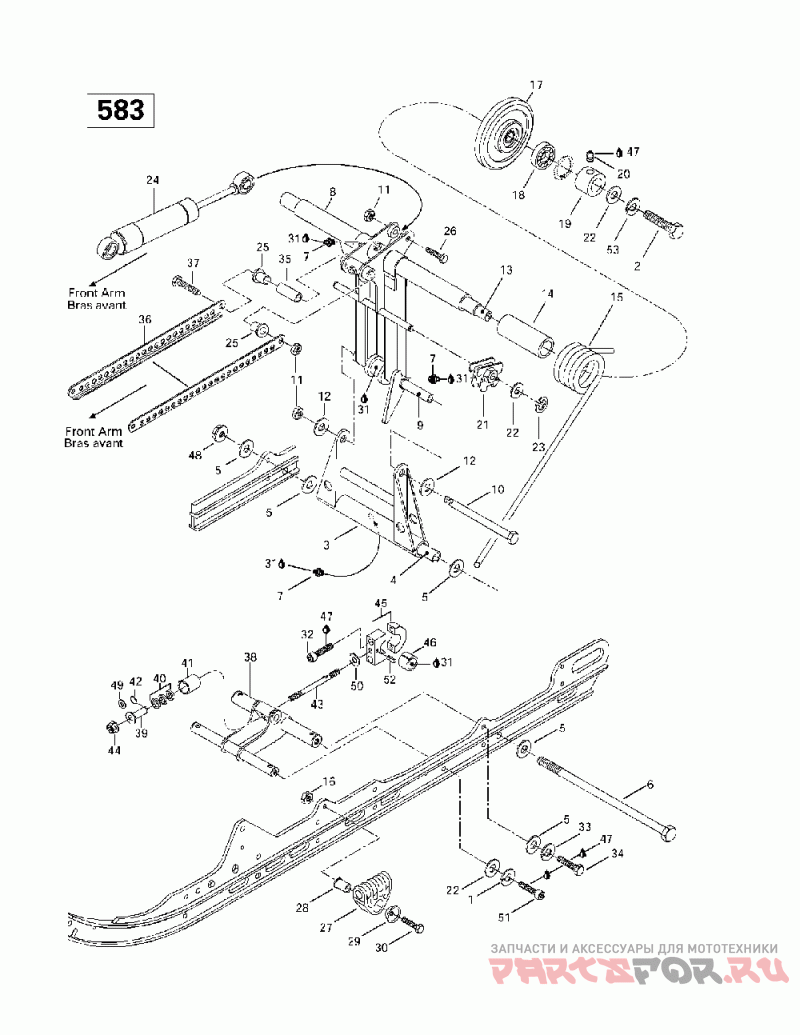

08- rear arm, rear suspension 136 #2

Ski-Doo (Bombardier) Grand Touring 500/583

Ski-Doo (Bombardier)
#oem кодцена
1
234100602
Washer-lock Spring Din.128a-a2 Grand Touring 583.
2
207103544
Screw-hex.cap Iso.4017 Grand Touring 583.
3
503191372
Jumelle Peinte *arm-pivot P. Grand Touring 583.
4
503154703
Axe Inf. Jumel.*axle-piv.lower Grand Touring 583.
5
224081201
Washer-flat Grand Touring 583.
6
732601198
Boulon 248mm *bolt 248mm Grand Touring 583.
7
408200700
Graisseur *grease Fitting Grand Touring 583.
8
503188974
Bras Arriere *arm-rear Grand Touring 583.
9
503144300
Axe Sup. Jumel.*axle-piv.upper Grand Touring 583.
10
732601197
Boulon Court *bolt-short Grand Touring 583.
11
232581414
Nut-stop Elastic Din.985 Grand Touring 583.
12
234081410
Washer-flat Din.125a Grand Touring 583.
13
503168700
Axe Transv.arr.*shaft-cross Rr Grand Touring 583.
14
572080700
Douille *bushing Grand Touring 583.
15
414944200
Ressort Dr.pein*spring-rh. P. Grand Touring 583.
414944300
Ressort Ga.pein*spring-lh.p. Grand Touring 583.
16
232561414
Nut-stop Elastic Din.985 Grand Touring 583.
17
503189658
Roue 155 *wheel-155 Includes 17 - 18. Grand Touring 583.
18
293350055
Ball Bearing Grand Touring 583.
19
503168800
Bague D Appui *ring-retaining Grand Touring 583.
21
572030800
Came Reglage Ga*cam-adjust.lh. Grand Touring 583.
572030900
Came Reglage Dr*cam-adjust.rh. Grand Touring 583.
22
234001410
0asher-flat Din.125a Grand Touring 583.
23
371907100
Circlip "e" *circlip-"e" Grand Touring 583.
24
415095000
Amortisseur *shock Grand Touring 583.
25
415052300
Coussinet Plast*cushion-plast. Grand Touring 583.
26
207085044
Screw-hex.cap Din.931 Grand Touring 583.
27
503189657
Support Ressort*support-spring Grand Touring 583.
28
503152700
Axe Guide Ress.*axle-guide Spring Grand Touring 583.
29
517041700
Rondelle Retenu*washer-retaine Grand Touring 583.
30
207064544
Screw-hex.cap Din.931 Grand Touring 583.
31
413706100
Graisse Lith. *grease Lith. Grand Touring 583.
32
205083044
Screw-socket Hd.din.912 Grand Touring 583.
33
234181401
Washer-lock Din.127b Grand Touring 583.
34
222083066
Screw-hex.cap Din.933 Grand Touring 583.
36
503170900
Barre Accoup.p *rod-tie P. Grand Touring 583.
37
207089044
Screw-hex.cap Din.931 Grand Touring 583.
38
503171900
Attache Soudee *bracket-weld Grand Touring 583.
39
503172900
Douille Soudee *bushing-weld. Grand Touring 583.
40
570049600
Butee Caout. *stopper-rubber Grand Touring 583.
41
503103600
Coupole *cup Grand Touring 583.
42
371910700
Circlip *circlip Grand Touring 583.
44
233201414
Nut-flange Elastic Din.6926 Grand Touring 583.
46
415027800
Coussinet *cushion Grand Touring 583.
47
293800005
Loctite 271 *loctite-271 Grand Touring 583.
48
233281414
Nut-flange Elastic Din.6926 Grand Touring 583.
49
503183400
Rondelle *washer Grand Touring 583.
51
205003544
Screw-socket Hd.din.912 Grand Touring 583.
52
732804011
Pin-rolled Din.1481 M3 X 18 Grand Touring 583.
53
234101601
Washer-lock Helical Din.127b-a2 Grand Touring 583.
8
503171500
Bras Arriere *arm-rear Grand Touring 583.
