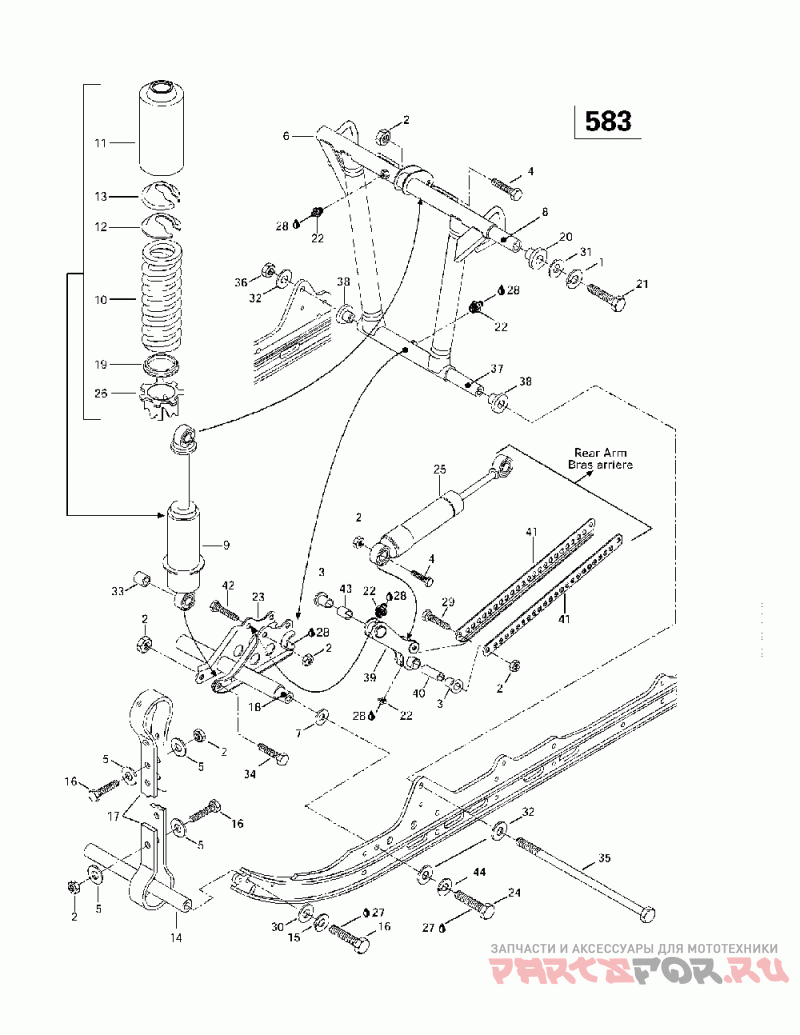

08- front arm, rear suspension 136 #2

Ski-Doo (Bombardier) Grand Touring 500/583

Ski-Doo (Bombardier)
#oem кодцена
1
234101601
Washer-lock Helical Din.127b-a2 Grand Touring 583.
2
232581414
Nut-stop Elastic Din.985 Grand Touring 583.
3
415052300
Coussinet Plast*cushion-plast. Grand Touring 583.
4
207084044
Screw-hex.cap Din.931 Grand Touring 583.
5
517078700
Rondelle *washer Grand Touring 583.
6
503171100
Bras Avant P. *arm-front Paint Grand Touring 583.
7
503175400
Rondelle Trempe*washer-hard Grand Touring 583.
8
503190387
Arbre *shaft Grand Touring 583.
10
415070600
Ressort *spring Grand Touring 583.
11
503188930
Protecteur *protector Grand Touring 583.
12
503191610
Capuchon *cap Grand Touring 583.
13
706200881
Butee Ressort *spring Stopper Grand Touring 583.
14
503151600
Axe *axle Grand Touring 583.
15
234181401
Washer-lock Din.127b Grand Touring 583.
16
207183044
Screw-hex.cap Din.933 Grand Touring 583.
17
503190986
Courroie Arret *stopper Strap Grand Touring 583.
18
503174900
Axe Inferieur *axle-lower Grand Touring 583.
19
572092600
Guide Ressort *guide-spring Grand Touring 583.
20
503189324
Coussinet *bushing Grand Touring 583.
21
207006044
Screw-hex.cap Iso.4014 Grand Touring 583.
22
408200700
Graisseur *grease Fitting Grand Touring 583.
23
503173400
Supp.cent.soude*supp.-cent.weld Grand Touring 583.
24
207124044
Screw-hex.cap Iso.4017 Grand Touring 583.
25
415095000
Amortisseur *shock Grand Touring 583.
26
291001088
Bague Reglage *adjuster Ring Grand Touring 583.
27
293800005
Loctite 271 *loctite-271 Grand Touring 583.
28
413706100
Graisse Lith. *grease Lith. Grand Touring 583.
29
207089044
Screw-hex.cap Din.931 Grand Touring 583.
30
234081410
Washer-flat Din.125a Grand Touring 583.
31
234001410
0asher-flat Din.125a Grand Touring 583.
32
234021410
Washer-flat Din.125a Grand Touring 583.
33
414917900
Coussinet *cushion Grand Touring 583.
34
207085544
Screw-hex.cap Din.931 Grand Touring 583.
35
503140800
Boulon Hex. *bolt-hex. Grand Touring 583.
36
232521414
Nut-stop Elastic Din.985 Grand Touring 583.
37
207226044
Screw-hex.cap Iso.4014 S.grip Grand Touring 583.
37
503189276
Rondelle *washer Grand Touring 583.
37
503189313
Arbre *shaft Grand Touring 583.
38
503188940
Coussinet *cushion Grand Touring 583.
39
503171400
Levier *lever Grand Touring 583.
40
503171600
Axe Barre Accou*shaft-tie Rod Grand Touring 583.
41
503170900
Barre Accoup.p *rod-tie P. Grand Touring 583.
42
207085044
Screw-hex.cap Din.931 Grand Touring 583.
43
503171700
Axe Pivot *axle-pivot Grand Touring 583.
44
234120602
Washer-lock Spring Din.128a-a2 Grand Touring 583.
