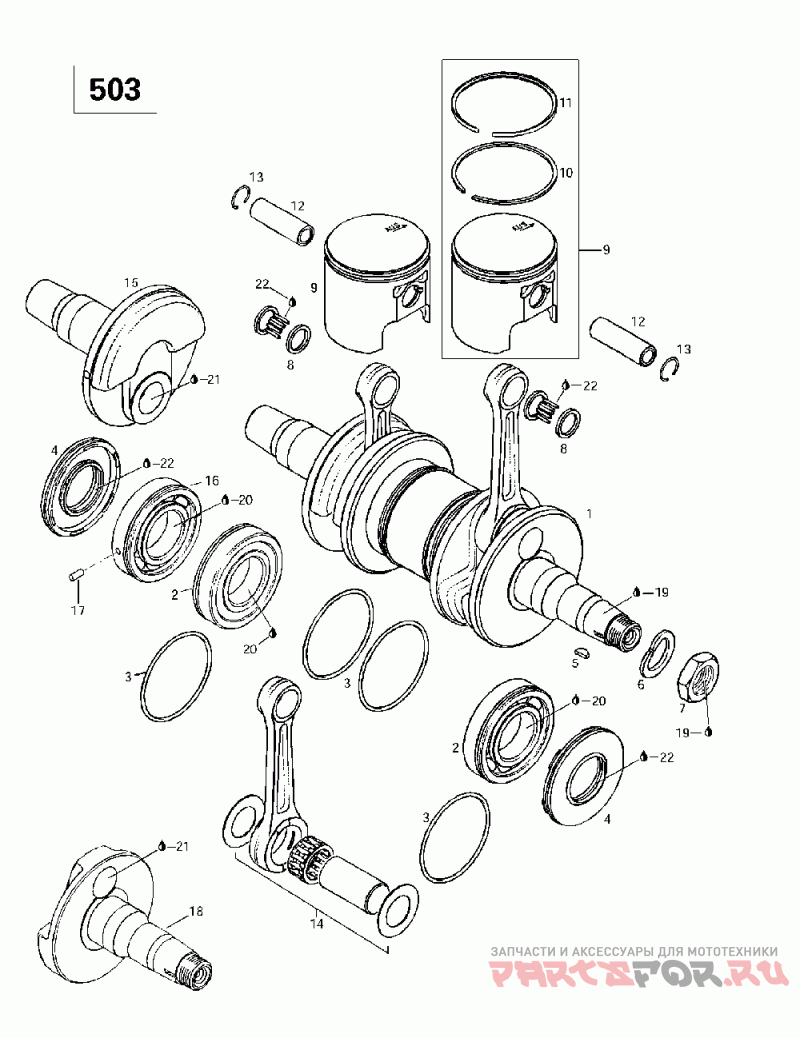

Коленчатый вал и поршни (503)

Ski-Doo (Bombardier) Formula S

Ski-Doo (Bombardier)
#oem кодцена
1
421000155
Деталь Vilebreq.refait*crank-rebuild 503 97 Includes 1 - 4. Formula Sl.
2
420832570
Деталь Roulement Bille*ball Bearing Formula Sl.
3
293300022
Деталь Joint Torique *o-ring Formula Sl.
4
420831952
Деталь Anneau Etanche *seal-oil Formula Sl.
5
420246055
Деталь Clavette *key-woodruff Formula Sl.
6
420945759
Деталь Rondelle-frein *washer-lock 22 Formula Sl.
7
420842234
Деталь Nut-hex.m22 X 1, 5 Formula Sl.
8
420832320
Деталь Roul.aiguille *needle Bearing Formula Sl.
9
420890070
Деталь Piston 71.91 *piston 71.91 Includes 9 - 11. Formula Sl.
420890071
Деталь Piston 72.16 *piston 72.16 Formula Sl.
420890072
Деталь Piston 72.41 *piston 72.41 Formula Sl.
10
420915850
Деталь Segment R 72.0 *ring-r 72.0 Formula Sl.
420915851
Деталь Segment R 72.25*ring-r 72.25 Formula Sl.
420915852
Деталь Segment R 72.5 *ring-r 72.5 Formula Sl.
420815201
Деталь Segment L 72.25*ring-l 72.25 Formula S. .
420215237
Деталь Segment L 72.5 *ring-l 72.5 Formula S. .
12
420916186
Деталь Axe De Piston *pin-gudgeon Formula Sl.
13
420945735
Деталь Circlip Piston *circlip-piston Formula Sl.
14
420888394
Деталь Ens.tige Rep. *kit-rod Repair Formula S. .
15
420818244
Деталь Demi-vileb.pto *half-crank Pto Formula Sl.
16
420832573
Деталь Roulement Bille*ball Bearing Includes 16 - 17. Formula Sl.
17
420929972
Деталь Goupille Ressor*pin-roll Formula Sl.
18
420819020
Деталь Demi-vileb.mag.*half-crank Mag Formula Sl.
19
293800060
Деталь Loctite 243 *loctite-243 Formula Sl.
21
413711400
Деталь Loctite 648 *loctite-648 Formula Sl.
22
413707000
Деталь Dow Corning 111*dow Corning 111 Formula Sl.
11
420815200
Деталь Segment L 72.0 *ring-l 72.0 Formula S. .
7
420842239
Деталь Ecrou*hex Nut M22x1, 5 Formula Sl.
