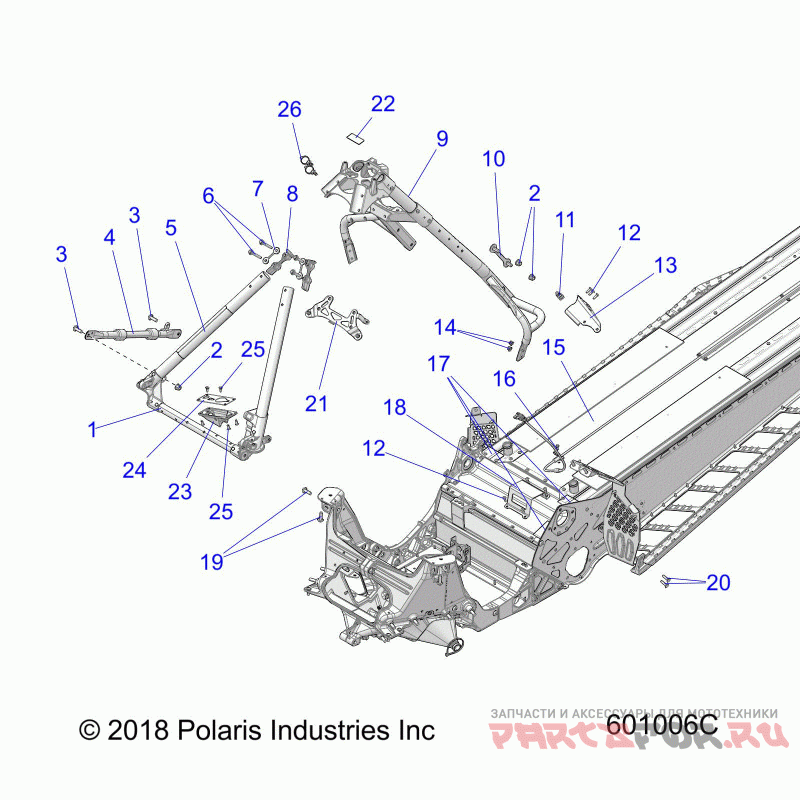

Chassis, chassis asm. and over structure - s21egk8r / egm8r all options (601006c)

Polaris 850 AXYS PRO-RMK 163/165/INTL ALL OPTIONS (S21EGK8R/EGM8R)

Polaris
#oem кодцена
1
1023851
ASM., FRAME, TUBE, FRONT RMK ALUM
1
1023850
ASM., FRAME, TUBE, FRONT RMK CF [165
10
1019337
ASM., STUD PLATE
11
7081808
STRAP-CABLE TIE W/CLIP
12
7661637
заклёпка
13
5262012
BRKT., SUPPORT, TOE STOP
14
7547453
NUT-HXFL-M6X1.0 8 ZB3 NYL
15
1025679-293
ASM-CHASS850 163 QD BSC IRED [QUICK DRIVE COLOR OPTION][INCL. BULKHEAD AND QUICK DRIVE BACKER PLATE]
15
1025679-728
ASM-CHASS850 163QD BSC GHSTGRY [QUICK DRIVE COLOR OPTION][INCL. BULKHEAD AND QUICK DRIVE BACKER PLATE]
15
1025679-751
ASM-CHASS850 163QD BSC POLBLU [QUICK DRIVE COLOR OPTION][INCL. BULKHEAD AND QUICK DRIVE BACKER PLATE]
15
1023980-309
ASM-CHASSIS 850 163 CC BSC NAT [SC SELECT 3
15
1023980-728
ASM-CHASSIS 850 163 CC GHTGREY [SC SELECT 3
15
1023980-067
ASM-CHASSIS 850 163 CC BSC GLBLK [SC SELECT 3
15
1023980-293
ASM-CHASSIS 850 163 CC BSC RED [SC SELECT 3
15
1023980-751
ASM-CHASSIS 850 163 CC POLBLUE [SC SELECT 3
15
1025679-067
ASM-CHASSIS 850 163 QD BSC BLK [QUICK DRIVE COLOR OPTION][INCL. BULKHEAD AND QUICK DRIVE BACKER PLATE]
15
1025679-309
ASM-CHASSIS 850 163 QD BSC NAT [QUICK DRIVE COLOR OPTION][INCL. BULKHEAD AND QUICK DRIVE BACKER PLATE]
15
1023313-728
ASM-TUNNEL 850 163 BSC GGREY [COLOR OPTION]
15
1023313-751
ASM-TUNNEL 850 163 BSC PBLUE [COLOR OPTION]
15
1023313-067
ASM-TUNNEL 850 163 GLBLK [COLOR OPTION]
15
1023313-293
ASM-TUNNEL 850 163 IRED [COLOR OPTION]
15
1023313-309
ASM-TUNNEL 850 163 NAT [COLOR OPTION]
16
7080539
CLAMP-NYLON, CABLE, 1/4
16
7662251
заклёпка
17
5814353
Подушка изолирующая
18
5258618
BRKT., AIR BOX SUPPPORT
19
7519070
SCR-TXTH-M8X1.25X25 8.8 ZODP30
2
7547332
NUT-M8X1.25,FLG,NYLOC-OLIVE D
20
7519338
SCR-RHCAR-M6X1.0X22 8.8 ZPC
21
1023231
ASM-REGULATOR MOUNT RMK
22
5814828
PAD-4411G,40MIL,51X22
23
5454789
MOUNT-LOAD CENTER
24
5265340
BRKT-LOAD CENTER
25
7661973
RIVET-4.8MM DIA-1.5-6.0 GRIP
26
7081496
CLIP-ROUTING
3
7518906
SCR-M8X1.25X25 8.8TXTR ZOD P80
4
1025507
WELD-CROSS BRACE BLK
5
5814124
FOIL-100MM X 200MM [USED ONLY WITH CARBON FIBER FRONT FRAME TUBE]
6
7520721
SCR-HXFL-M6X1.0X55 10.9 ZODP30
7
5633083
SHIM, TUBE
8
5632923
SPACER, TUBE CAST [USED ONLY WITH CARBON FIBER FRONT FRAME TUBE]
8
5633122
SPACER-TUBE CAST 27.00 DIA
9
1023201
ASM., FRAME, TUBULAR, REAR, RMK
