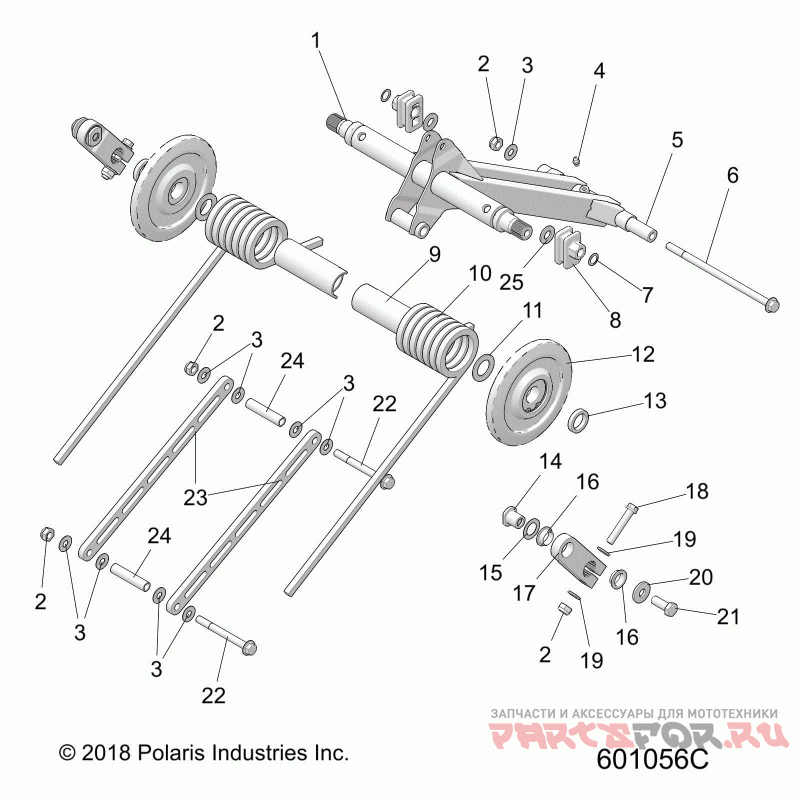

Suspension, torque arm, rear - s20mdx6jsa / 6jea (601056c)

Polaris 600 RACER/INTL

Polaris
#oem кодцена
1
1544351-329
ARM-TORQUE, REAR, RACE BLACK
10
7045225-329
SPRING-TORSION TRAP32.0/110° LH BLK
10
7045226-329
SPRING-TORSION TRAP32.0/110° RH BLK
11
7555871
Шайба
12
1590343
ASM., CARRIER WHEEL
13
5134706
Распорная деталь
14
5142775
SHAFT-ARM M12
15
7555945
Шайба
16
3514488
BUSHING, ARM
17
1544440
ASM-ARM 2.75 PIN RR
18
7521087
SCR-M10X1.25X55-HX,CL 10.9
19
7556188
WASHER-FL.390X.750X.065-Y
2
7547793
NUT-HEX-M10X1.25 10 ZOD NYL
20
7556874
WASHER-SPRING 12.5X31.75X3.175
21
7521085
SCR-M12X1.75X30,CL 10.9
22
7519284
SCR-HXFL-M10X1.25X100 10.9 ZOD
23
5143239
ROD-SHOCK RACE
24
5342228
BUSHING-PULLROD
25
7556333
WASHER-FLAT, .531X1.063X.095-Y
3
7556545
WSHR-10.5X24X1.2446 ZOD HRD
4
7080424
Штуцер
5
5341696
SHAFT-18.8X10.4X179.1 ANODIZE
6
7521084
SCR-HXFL-M10X1.25X205 10.9 ZOD
7
7080394
CLIP, PUSH-ON
8
5432983
ROLLER, SPRING, ADJUSTABLE
9
5456016
SLEEVE-TORSION SPRING
