  5. S19EGK8R/EGM8R - 850 AXYS PRO RMK 163/INTL SC SELECT

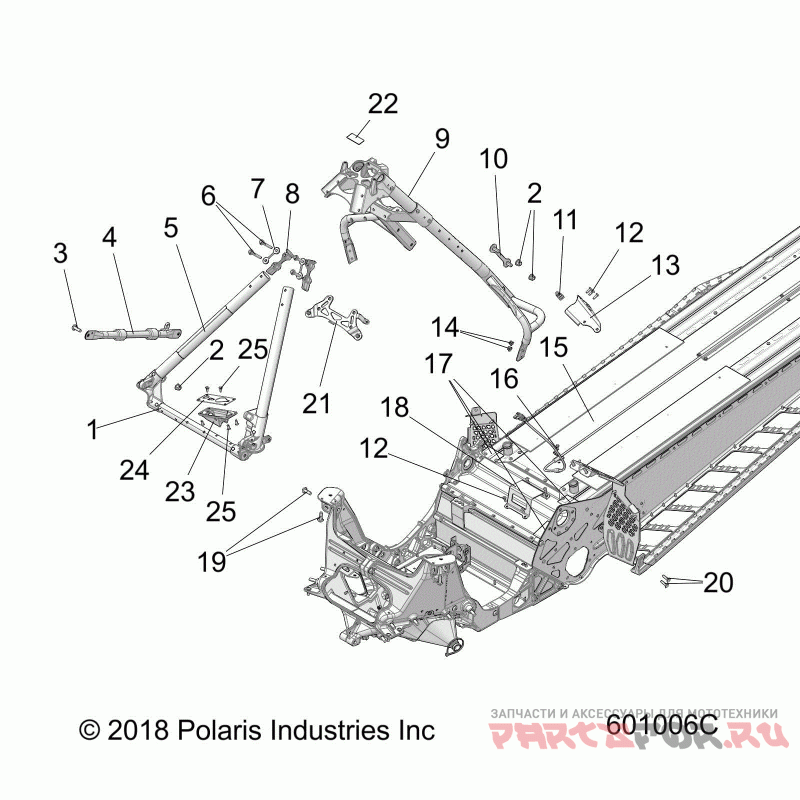

Chassis, chassis asm. and over structure - s19egk8r / egm8r all options (601006c)

Polaris S19EGK8R/EGM8R - 850 AXYS PRO RMK 163/INTL SC SELECT

Polaris
#oem кодцена
1
1023850
ASM., FRAME, TUBE, FRONT RMK CF
2
7547332
NUT-M8X1.25,FLG,NYLOC-OLIVE D
3
7518906
SCR-M8X1.25X25 8.8TXTR ZOD P80
4
1024086-067
CROSS BRACE BLK
5
5814124
FOIL-100MM X 200MM
6
7520721
SCR-HXFL-M6X1.0X55 10.9 ZODP30
7
5633083
SHIM, TUBE
8
5632923
SPACER, TUBE CAST
9
1023201
ASM., FRAME, TUBULAR, REAR, RMK
10
1019337
ASM., STUD PLATE
11
7081808
STRAP-CABLE TIE W/CLIP
12
7661637
заклёпка
13
5262012
BRKT., SUPPORT, TOE STOP
14
7547453
NUT-HXFL-M6X1.0 8 ZB3 NYL
15
1023315-309
ASM-CHASSIS 850 163 QD NAT
15
1023980-309
ASM-CHASSIS 850 163 CC BSC NAT
15
1023313-309
ASM-TUNNEL 850 163 NAT
15
1023315-067
ASM-CHASSIS 850 163 QD GLBLK
15
1023980-067
ASM-CHASSIS 850 163 CC BSC GLBLK
15
1023313-067
ASM-TUNNEL 850 163 GLBLK
15
1023315-293
ASM-CHASSIS 850 163 QD IRED
15
1023980-293
ASM-CHASSIS 850 163 CC BSC RED
15
1023313-293
ASM-TUNNEL 850 163 IRED
15
1023315-630
ASM-CHASSIS 850 163 QD LMSQU
15
1023980-630
ASM-CHASSIS 850 163 CC BSC LMSQZ
15
1023313-630
ASM-TUNNEL 850 163 LMSQU
15
1023315-647
ASM-CHASSIS 850 163 QD ORGBRST
15
1023980-647
ASM-CHASSIS 850 163 CC BSC ORGBRST
15
1023313-647
ASM-TUNNEL 850 163 ORGBRST
15
1023315-737
ASM-CHASSIS 850 163 QD ISKYBLU
15
1023980-737
ASM-CHASSIS 850 163 CC BSC ISKYBLU
15
1023313-737
ASM-TUNNEL 850 163 SKYBLU
16
7080539
CLAMP-NYLON, CABLE, 1/4
16
7662251
заклёпка
17
5814353
Подушка изолирующая
18
5258618
BRKT., AIR BOX SUPPPORT
19
7519070
SCR-TXTH-M8X1.25X25 8.8 ZODP30
20
7519338
SCR-RHCAR-M6X1.0X22 8.8 ZPC
21
1023231
ASM-REGULATOR MOUNT RMK
22
5814828
PAD-4411G,40MIL,51X22
23
5454789
MOUNT-LOAD CENTER
24
5265340
BRKT-LOAD CENTER
25
7661973
RIVET-4.8MM DIA-1.5-6.0 GRIP
