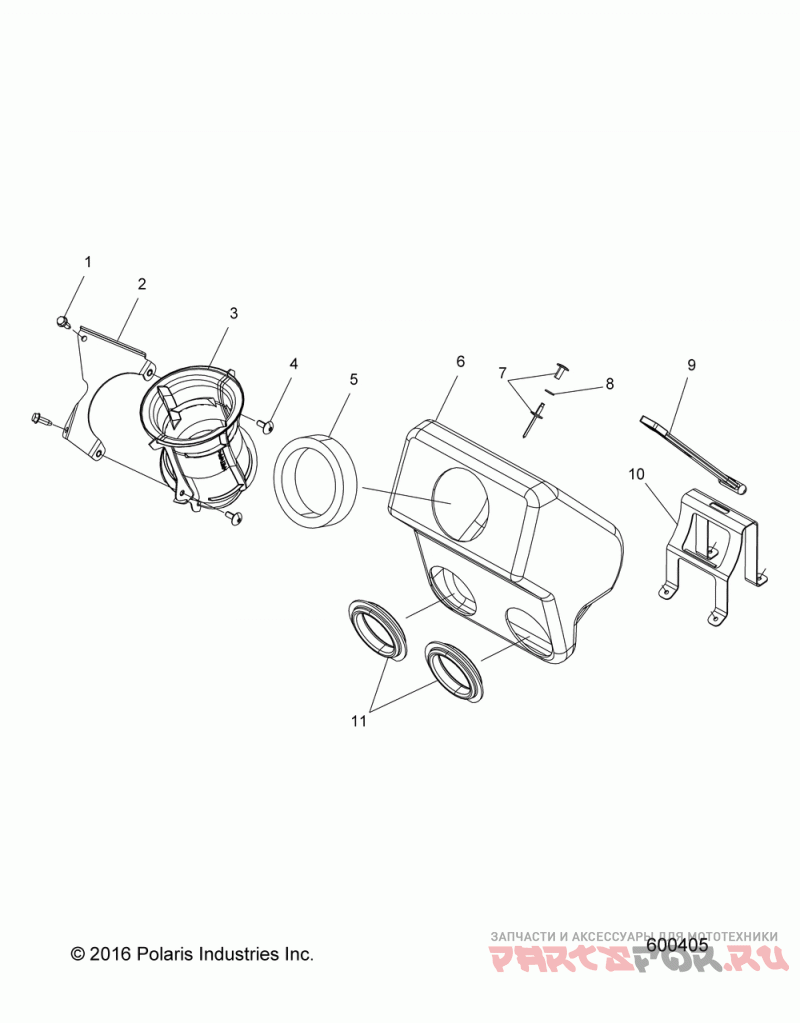

Engine, air intake system - s17mbx6jsa / jea (600405)
Polaris S17MBX6JSA/JEA 600 RACER/INTL
| # | oem код | название | цена |
|---|---|---|---|
1 | 7512253 Винт | Винт | |
2 | 1022371 Asm-tube Mount | Asm-tube Mount | |
3 | 5453800 Tube-intake | Tube-intake | |
4 | 7518905 Винт 1/4-20x5/8 Torx | Винт 1/4-20x5/8 Torx | |
5 | 5814414 Foam-tube/airbox | Foam-tube/airbox | |
6 | 1204651 Asm-airbox Silencer, 440
[incl. 7, 8] | Asm-airbox Silencer, 440
[incl. 7, 8] | |
7 | 1015421 Asm-rivet/retainer (50)
(50 Per Pack) | Asm-rivet/retainer (50)
(50 Per Pack) | |
8 | 7555904 Шайба | Шайба | |
9 | 5436090 Strap-rubber | Strap-rubber | |
11 | 5413314 Boot-carb, 40mm, 600 Race | Boot-carb, 40mm, 600 Race |
