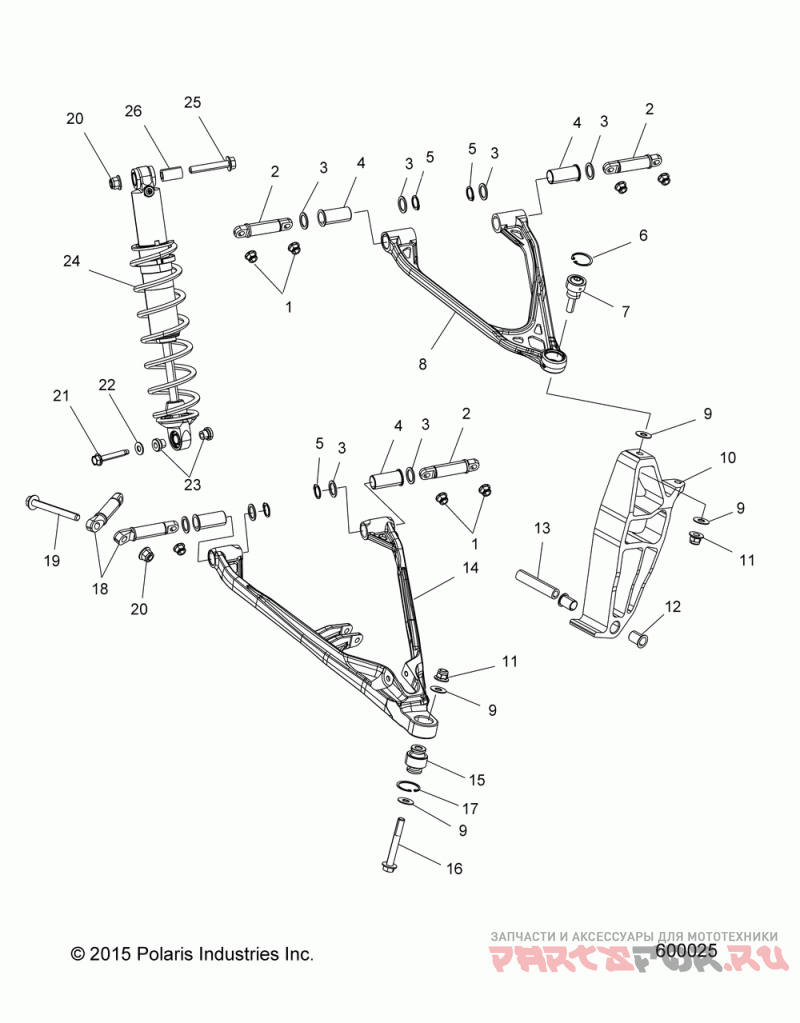

Suspension, control arms and spindle - s17efs8 all options (600025)

Polaris S17EFS8 800 AXYS SKS 155 ALL OPTIONS

Polaris
#oem кодцена
1
7547332
Nut-m8x1.25, Flg, Nyloc-olive D
2
5140556
Shaft-pivot Grooved
3
7556959
Wshr-18.35x25x1.575 Thick Zod
4
5451498
Втулка
5
7710786
Ring-retaining, 18mm Id
6
7710642
Ring-ret Int 1.125"
8
1824535-309
Asm-uca Rmk Lh Nat [incl. 2-7]
8
1824536-309
Asm-uca Rmk Rh [incl. 2-7]
8
1824535-458
Asm-uca Rmk Lh Mblk [incl. 2-7]
8
1824536-458
Asm-uca Rmk Rh Mblk [incl. 2-7]
9
7556545
Wshr-10.5x24x1.2446 Zod
10
1824040
Asm-spindle Rmk Lh [incl. 12]
10
1824041
Asm-spindle Rmk Rh [incl. 12]
10
1824040-293
Asm-spindle Rmk Lh Red [incl. 12]
10
1824041-293
Asm-spindle Rmk Rh Red [incl. 12]
10
1824040-458
Asm-spindle Rmk Lh Blk [incl. 12]
10
1824041-458
Asm-spindle Rmk Rh Blk [incl. 12]
10
1824040-689
Asm-spindle Rmk Lh Velblue [incl. 12]
10
1824041-689
Asm-spindle Rmk Rh Velblue [incl. 12]
10
1824040-647
Asm-spindle Rmk Lh Org [incl. 12]
10
1824041-647
Asm-spindle Rmk Rh Org [incl. 12]
11
7547333
Nut-m10x1.25, Flg, Nyloc-olive D(
12
5438460
Втулка
13
5136910
Bushing-15.88x10.13x76.20
14
1824533-309
Asm-lca Rmk Lh Nat [incl. 2-6, 15, 18]
14
1824534-309
Asm-lca Rmk Rh Nat [incl. 2-6, 15, 18]
14
1824533-458
Asm-lca Rmk Lh Mblk [incl. 2-6, 15, 18]
14
1824534-458
Asm-lca Rmk Rh Mblk [incl. 2-6, 15, 18]
16
7519286
Scr-hxfl-m10x1.25x75 10.9 Zod
17
7710539
Кольцо
18
5140557
Shaft-pivot Lca Frt Grooved
19
7518917
Scr-m10x1.5x95 Hx Flg 10.9 Zod
20
7547423
Nut-m10x1.5 Hfn Nyloc Zod
21
7519245
Scr-hxfl-m8x1.25x50 Dp Zodp30
22
7556524
Washer-.344x.688x.063 Fl-zod
23
5138124
Spacer-8.2x19, Alum
25
7518941
Scr-m10x1.5x60-8.8 Hfs Zod
26
5137360
Bushing-m10x17.5x30
