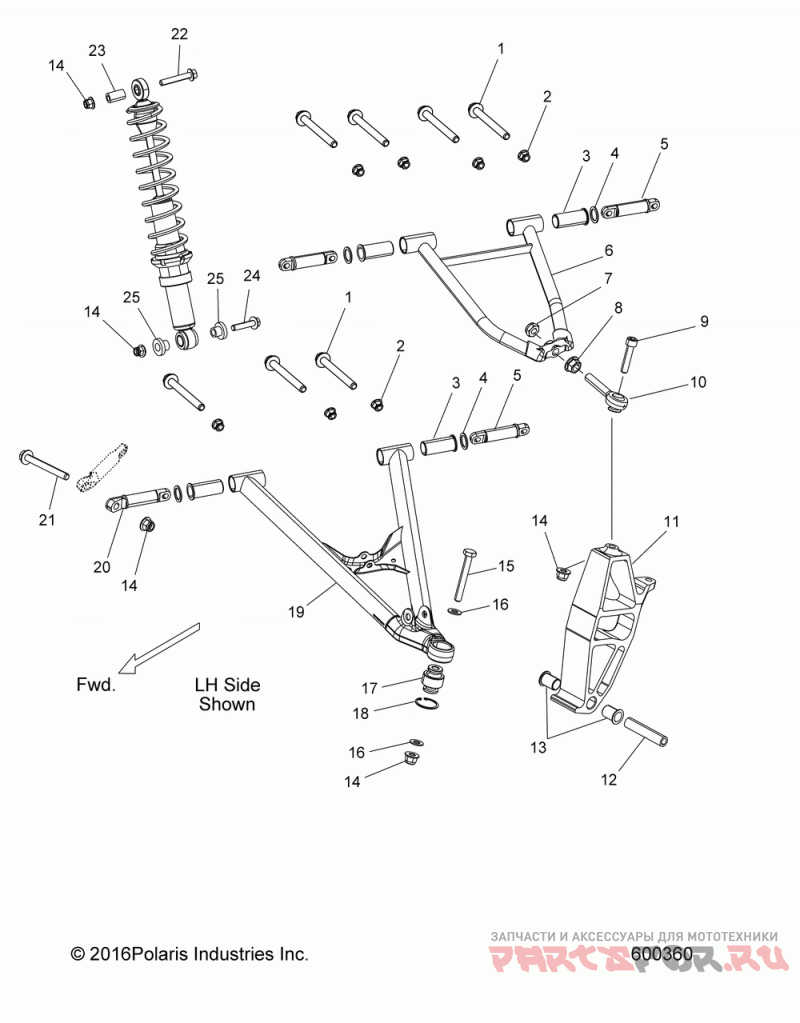

Suspension, control arms and spindle - s17eef6psl / pel (600360)

Polaris S17EEF6PSL/PEL 600 VOYAGEUR/INTL 144

Polaris
#oem кодцена
1
7519204
Stud-wheel M8x1.25x48
2
7547332
Nut-m8x1.25, Flg, Nyloc-olive D
3
5450297
Втулка
4
7556758
Wshr-18.2x25.x1.6 Thick Zod
5
5139521
Ось
6
1824080-458
Weld-uca Rmk Lh Mblk [also Order Fasteners 2 And 14]
6
1824081-458
Weld-uca Rmk Rh Mblk [also Order Fasteners 2 And 14]
7
7547464
Nut-hex-m12x1.5 8 Zod Nyl
8
7547490
Nut-hxfl M12x1.5 Zod
9
7519246
Scr-sh-m10x1.5x45 12.9 Zod
10
7061178
Rod End-m12x2.812 30
11
1823897
Asm-spindle, Lh Metric, Rmk Bj [incl. 13]
11
1823898
Asm-spindle, Rh Metric, Rmk Bj [incl. 13]
12
5136910
Bushing-15.88x10.13x76.20
13
5438460
Втулка
14
7547423
Nut-m10x1.5 Hfn Nyloc Zod
15
7519015
Scr-m10x1.5x75 10.9 Hcs Zod
16
7555806
Washer, Flat(10) (10 Per Pack)
17
2204229
Kit-bearing Spherical Lwr 10mm
18
7710539
Кольцо
19
1824368-458
Weld-arm, Lower Control, Rmk, Lh [also Order Fasteners 2 And 14]
19
1824369-458
Weld-arm, Lca, Rmk, Rh Blk [also Order Fasteners 2 And 14]
20
5139607
Shaft-pivot Lca Frt
21
7518917
Scr-m10x1.5x95 Hx Flg 10.9 Zod
22
7518941
Scr-m10x1.5x60-8.8 Hfs Zod
23
5137360
Bushing-m10x17.5x30
24
7518971
Scr-m10x1.5x50 8.8 Hx/fl Zod
25
5136530
Spacer-10.2idx12.62od
