Амортизатор задний подвески для снегоходов Polaris 600 IQ RACER/INTL - S14MX6JSA/JEA (2014)

Москва и регионы России

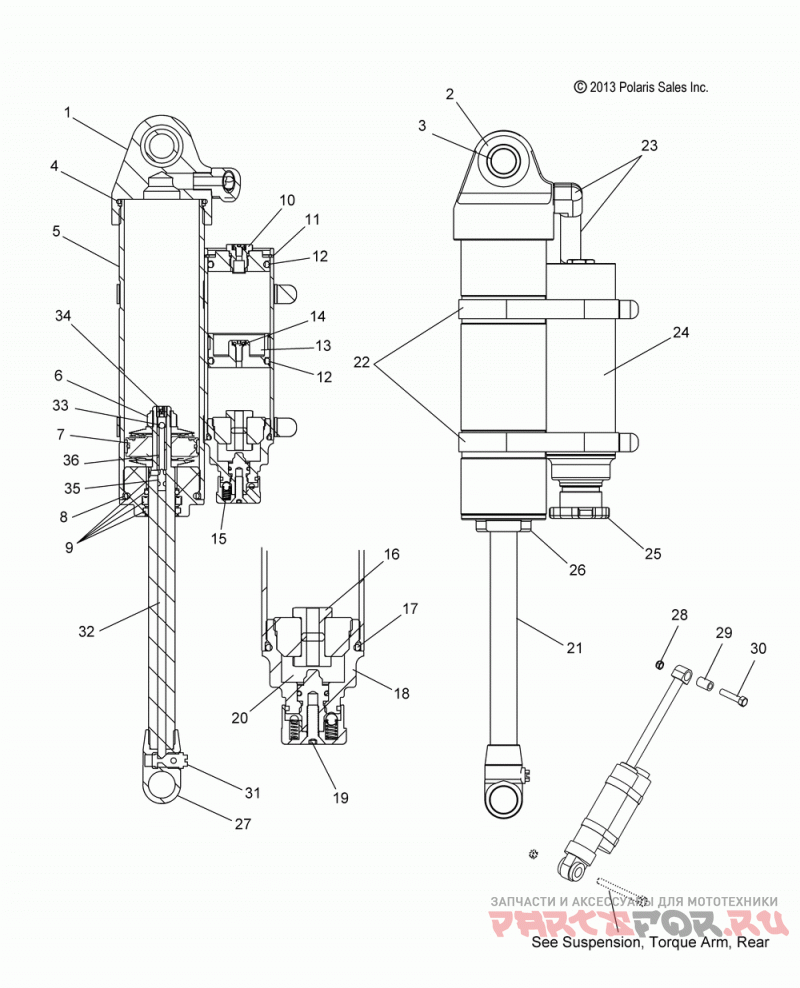

Амортизатор задний подвески

Polaris 600 IQ RACER/INTL - S14MX6JSA/JEA

Амортизатор задний подвески

#

oem код

название

цена

Shock-r/t W/e

Shock-r/t W/e

1

Loop, Body 2in. (1220146)

Loop, Body 2in. (1220146)

2

Bushing/urethane

Bushing/urethane

3

Sleeve 1.202"l

Sleeve 1.202"l

4

O-ring Body (10) (10 Per Pack)

O-ring Body (10) (10 Per Pack)

5

Body, Rt, 2" Clear

Body, Rt, 2" Clear

6

Nut-7/16 Crimp

Nut-7/16 Crimp

7

Piston, 2in W/o-ring (1320126)

Piston, 2in W/o-ring (1320126)

7

Band-piston

Band-piston

7

O-ring, 2-029 (1320029)

O-ring, 2-029 (1320029)

8

O-ring Body (10) (10 Per Pack)

O-ring Body (10) (10 Per Pack)

9

Shaft Bushing

Shaft Bushing

9

O-ring Shaft Seal Head (10) (10 Per Pack)

O-ring Shaft Seal Head (10) (10 Per Pack)

9

Shaft Seal U Cup

Shaft Seal U Cup

9

Wiper D/type

Wiper D/type

10

End Cap, Res (1000206)

End Cap, Res (1000206)

10

Needle Valve (800213)

Needle Valve (800213)

10

Screw-button Head 8/32(10) (10 Per Pack)

Screw-button Head 8/32(10) (10 Per Pack)

10

Кольцо

Кольцо

11

Reservoir Snap Ring (10) (10 Per Pack)

Reservoir Snap Ring (10) (10 Per Pack)

12

O-ring Reservoir (10) (10 Per Pack)

O-ring Reservoir (10) (10 Per Pack)

13

Piston-reservoir (500204)

Piston-reservoir (500204)

13

Wear Band, Teflon (100311)

Wear Band, Teflon (100311)

14

Bleed Screw (10) (10 Per Pack)

Bleed Screw (10) (10 Per Pack)

14

Кольцо

Кольцо

15

Ball-d-tent(10) (10 Per Pack)

Ball-d-tent(10) (10 Per Pack)

15

Spring-d-tent(10) (10 Per Pack)

Spring-d-tent(10) (10 Per Pack)

16

Screw W/thru Hole

Screw W/thru Hole

17

O-ring Body (10) (10 Per Pack)

O-ring Body (10) (10 Per Pack)

18

Housing, Clicker Clr (1000608)

Housing, Clicker Clr (1000608)

19

Stud, Clicker (400613)

Stud, Clicker (400613)

19

Кольцо

Кольцо

19

Винт

Винт

20

Поршень

Поршень

21

Shaft, W/reb. (1300115)

Shaft, W/reb. (1300115)

22

Clamp-hose, Res (400216)

Clamp-hose, Res (400216)

23

Fitting 90

Fitting 90

23

Hose-5.6"

Hose-5.6"

24

Body-reservoir

Body-reservoir

25

Knob, Clicker Blk (1000464)

Knob, Clicker Blk (1000464)

26

Asm. Seal Head (1240157)

Asm. Seal Head (1240157)

27

Loop, Reb. Shaft (1300112)

Loop, Reb. Shaft (1300112)

28

Nut, Flexloc(10) (10 Per Pack)

Nut, Flexloc(10) (10 Per Pack)

29

Втулка

Втулка

30

Болт

Болт

31

Knob, Reb, Adj. (1300113)

Knob, Reb, Adj. (1300113)

32

Rod, Reb. Meter. (1300114)

Rod, Reb. Meter. (1300114)

33

Ball, Check (1100608)

Ball, Check (1100608)

34

Set Screw, Hollow (1100701)

Set Screw, Hollow (1100701)

35

Piston, Rebound (1100602)

Piston, Rebound (1100602)

36

Housing, Chk Ball (1100124)

Housing, Chk Ball (1100124)
