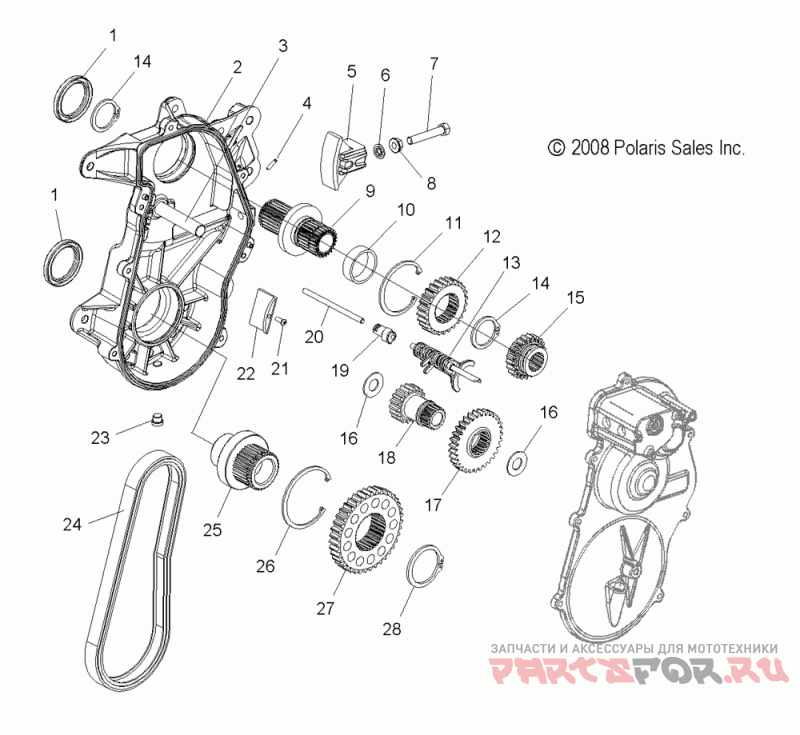

Drive train, gearcase asm.

Polaris FS/FST IQ TOURING/EURO-S09PT7ES/EE/FS

Polaris
#oem кодцена
1
3610108
Seal-oil 45mm 1.772x2.441x.275
9
1332485
Asm-upper Hub Carrier, Helical
9
3514471
Подшипник
9
3610110
Seal-oil 1.00x1.250x.125
10
5134518
Spacer-upper Sprocket
11
7710552
Ring-rtng Int 3000x268
12
3222143
Sprocket-21t, 24t Spl, 3/4w Hyvo ([fs] )
12
3222128
Sprocket-24t, 3/4w, 24spl, Pm ([fst] )
13
1332315
Asm-shift Fork
14
7710555
Ring-rtng 7200-150
15
5135601
Pinion-frwrd/revrs Engagment
2
1332612
Asm-case, Svc
16
7556354
Washer-.623x1.300x.066 Thr-y
17
5135059
Gear-spur 31t, 17t Spl Cs
18
1332385
Asm-18t Spkt/18t Spln, Rev, W/bu
19
5435503
Indicator-position Hub
20
5134327
Shaft-shift
21
7512018
Винт (отпускается по 10шт.)
22
5250017
Plate-reverse Backing , Steel
23
7052115
Пробка (Отпускается по 10 шт)
24
3222134
Chain-hyvo 23-149, .375x.75x80p
25
1332306
Asm-lower Hub Carrier
3
5134329
Shaft-pinion
25
3514496
Bearing-ball, 45x75x16mm, 6009
25
7710553
Ring-rtng, Ext 7200-175
25
5412229
O-ring-1.23x.443x.103
26
7710554
Ring-rtng, Int, 3000x300
27
3221191
Sprocket-46t 3/4w ([fs] )
27
3221186
Sprocket-44t Pm ([fst] )
28
7710558
Ring-retaining, Ext 7200-200
4
5334764
Tube-vent .155diax.75l
5
1332427
Asm-tightener, Chain, Vespel
6
7556340
Washer-thread Seal, 3/8-16-unc
7
7515511
Винт (отпускается по 10шт)
8
7547304
Nut-3/8-16 Hx Flg Grf Zy
