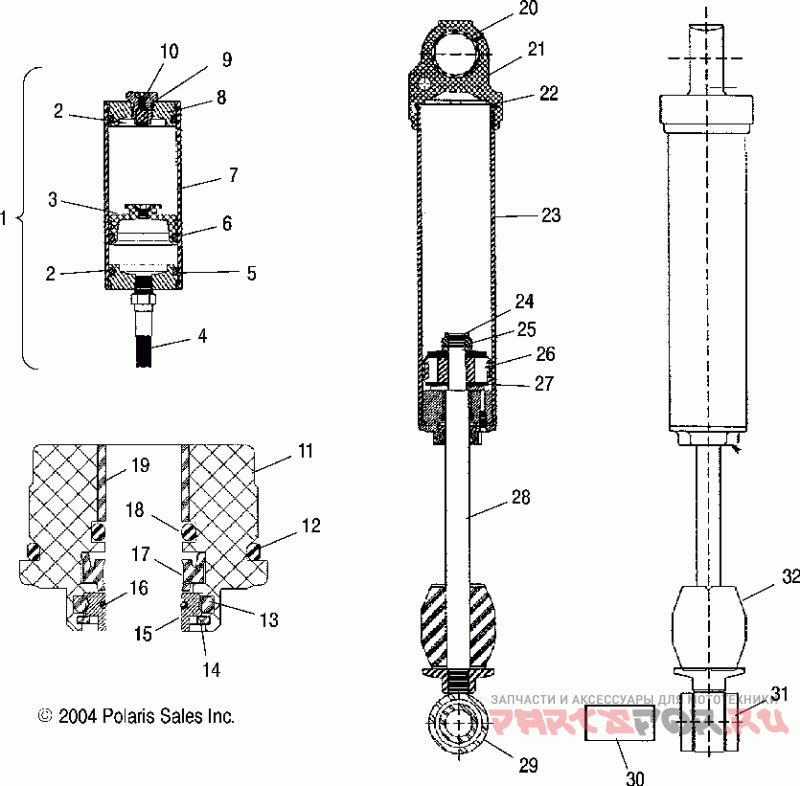

Shock (rear track)(m-10)

Polaris 600 CLASSIC - S05ND6ES

Polaris
#oem кодцена
1
1500449
Asm-reservior, Non Adjust, 1.459 ([incl. 2-10] )
2
1500450
Seal-o-ring
3
1500187
Piston-floating
4
1500445
Hose-14.00 Tlg
5
1500163
Endcap Asm, Reservoir
6
1500003
O-ring, Endcap
8
1500160
Reservoir, Endcap Asm.
9
1500023
O-ring, Outer
10
1500014
Valve Asm, Air
12
1500020
O-ring, .103w-1.299id
13
1500483
O-ring, .103x.73id
14
1500486
Ring-snap, Internal
15
1500485
Scraper-fist, Delrin
16
1500484
O-ring 14mm Idx1 Mm
17
1500266
U-cup-4300 Ureth, 036-01-006
18
1500021
O-ring Inner
19
1500488
Bearing-.5 Idx.5 Tlg
20
1500444
Bearing-rbc 003-10-000
21
1500448
Asm-body Cap
22
1500108
O-ring, .103w-1.549id
23
1500446
Body-6.825-tlg, .58 Thd L
24
1500016
Гайка
25
1500015
Plate, Backup
26
1500002
Damper, Piston Ring
27
1500017
Plate, Top Out
28
1500447
Shaft-.498 X 7.525 Tlg
29
1500164
Eyelet, Base
30
1500310
Sleeve, .56x.81x1.2
31
1500309
Bushing, .35ilg, .595tlg
32
5410855
Bumper, Jounce
7042216
Shock-rear Track, Rezy-m-10 ([incl. All] )
