Цилиндры для снегоходов Polaris 500/600 XC SP EDGE/M-10 - S05NE5CS (2005)

Москва и регионы России

Цилиндры

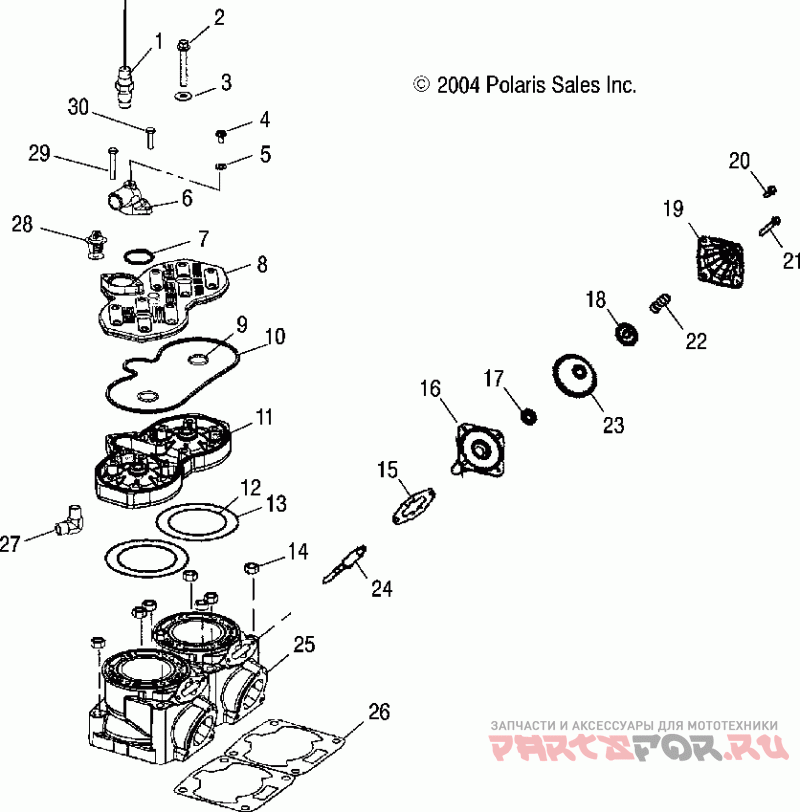

Polaris 500/600 XC SP EDGE/M-10 - S05NE5CS

Цилиндры

#

oem код

название

цена

1

Sensor-thermister, Esx8477a

Sensor-thermister, Esx8477a

2

Screw ([500] )

Screw ([500] )

2

Screw, M8x1.25x55 ([600] )

Screw, M8x1.25x55 ([600] )

3

Washer ([500] )

Washer ([500] )

4

Болт

Болт

5

Шайба (отпускается по 10 шт)

Шайба (отпускается по 10 шт)

6

Корпус термостата

Корпус термостата

7

Кольцо

Кольцо

8

Cover-head 70.5 500 Lbty Blk

Cover-head 70.5 500 Lbty Blk

8

Cvr-head 77.25mm 3/8sno 600blk

Cvr-head 77.25mm 3/8sno 600blk

9

Кольцо уплотнительное

Кольцо уплотнительное

10

Уплотнение

Уплотнение

11

Head-cyl 70.5 3/4 Semi/solid ([500] )

Head-cyl 70.5 3/4 Semi/solid ([500] )

11

Head-cyl 77.25mm W/oma ([600] )

Head-cyl 77.25mm W/oma ([600] )

12

O-ring ([500] )

O-ring ([500] )

12

O-ring ([600] )

O-ring ([600] )

13

Кольцо уплотнительное

Кольцо уплотнительное

14

Гайка

Гайка

15

Gasket-base To Cyl Exh Valve (1

Gasket-base To Cyl Exh Valve (1

16

Asm-base Exh Valve Dom **

Asm-base Exh Valve Dom **

17

Washer-bellows, Exh Valve, Dom

Washer-bellows, Exh Valve, Dom

18

Cap/nut, Bellows-hc Anodized

Cap/nut, Bellows-hc Anodized

19

Asm-housing W/bushing

Asm-housing W/bushing

20

Винт

Винт

21

Scr-m6x1.0x50.0 Hx/fl-yd (10)

Scr-m6x1.0x50.0 Hx/fl-yd (10)

22

Spring-comp, Pink/ylw ([500] )

Spring-comp, Pink/ylw ([500] )

22

Spring-comp, Grn/ylw ([600] )

Spring-comp, Grn/ylw ([600] )

23

Bellows-exh, Ribs

Bellows-exh, Ribs

24

Valve-guillotine 500, Forged

Valve-guillotine 500, Forged

24

Valve-guillotine 600 Forged

Valve-guillotine 600 Forged

25

Cylinder-70.5 ([500] )

Cylinder-70.5 ([500] )

25

Cylinder-77.25 ([600] )

Cylinder-77.25 ([600] )

26

Gasket-cylinder Base, Web ([500] )

Gasket-cylinder Base, Web ([500] )

27

Fitting-3/4npt-1"hose Brass

Fitting-3/4npt-1"hose Brass

28

Термостат

Термостат

29

Винт m6x1.0x45

Винт m6x1.0x45

30

Винт

Винт

17

Washer-bellows, Exh Valve, Dom

Washer-bellows, Exh Valve, Dom
