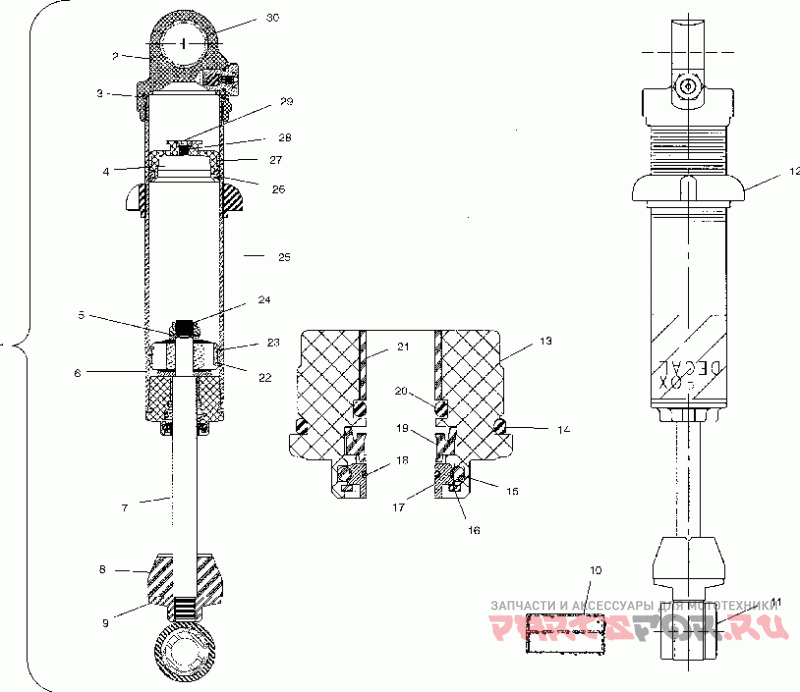

Shock (front track)(m-10)

Polaris SUPERSPORT EDGE - S04NP5BS/A/B

Polaris
#oem кодцена
1
7042224
Shock-front Track, M10 ([incl. All] )
2
1500443
Asm-body Cap
3
1500108
O-ring, .103w-1.549id
4
1500187
Piston-floating
5
1500015
Plate, Backup
6
1500017
Plate, Top Out
7
1500736
Shaft 229-03-039
8
1500441
Bumper-.498 Id X .883 Tlg
9
1500164
Eyelet, Base
10
1500310
Sleeve, .56x.81x1.2
11
1500309
Bushing, .35ilg, .595tlg
12
5432304
Ring, Spring Preload, Adj
14
1500020
O-ring, .103w-1.299id
15
1500483
O-ring, .103x.73id
16
1500486
Ring-snap, Internal
17
1500485
Scraper-fist, Delrin
18
1500484
O-ring 14mm Idx1 Mm
19
1500266
U-cup-4300 Ureth, 036-01-006
20
1500021
O-ring Inner
21
1500488
Bearing-.5 Idx.5 Tlg
22
1500002
Damper, Piston Ring
23
2200618
Kit, Valv.piston
24
1500016
Гайка
25
1500442
Body-1.459 X 6.555 Tlg X 2.66
26
1500003
O-ring, Endcap
27
1500006
Ring, Piston, Floating,
28
1500022
O-ring, Drum Outer
29
1500018
Винт
30
1500444
Bearing-rbc 003-10-000
