Shock (rear track) для снегоходов Polaris 500 EDGE - S04NB4BS (2004)

Москва и регионы России

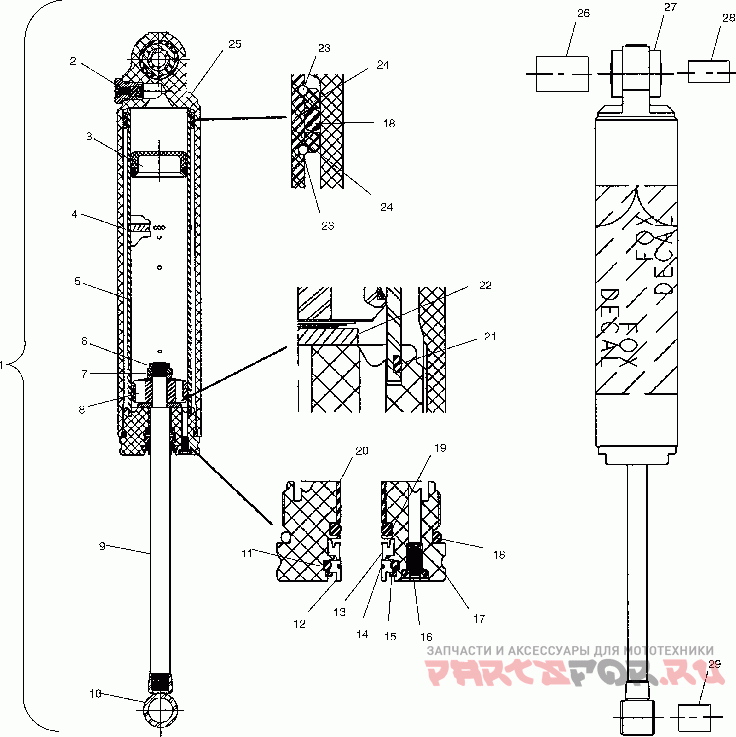

Shock (rear track)

Polaris 500 EDGE - S04NB4BS

Shock (rear track)

#

oem код

название

цена

1

Shock-r/t, Alum, Pps

Shock-r/t, Alum, Pps

2

Screw-#10-24x.375 800-10-000

Screw-#10-24x.375 800-10-000

2

O-ring, Drum Outer

O-ring, Drum Outer

3

Asm-floating Piston

Asm-floating Piston

3

Ring, Piston, Floating,

Ring, Piston, Floating,

3

O-ring, Endcap

O-ring, Endcap

4

Valve, Check, Nbr Duro A 90

Valve, Check, Nbr Duro A 90

5

Body, Asm, Inner P.s.

Body, Asm, Inner P.s.

6

Гайка

Гайка

7

Plate, Backup

Plate, Backup

8

Piston-.063 Bleed

Piston-.063 Bleed

8

Damper, Piston Ring

Damper, Piston Ring

9

Shaft-.5x8.41 Tlg

Shaft-.5x8.41 Tlg

10

Eyelet-.88w 1.38tlg 808-05-002

Eyelet-.88w 1.38tlg 808-05-002

11

O-ring, .103x.73id

O-ring, .103x.73id

12

Scraper-fist, Delrin

Scraper-fist, Delrin

13

U-cup-4300 Ureth, 036-01-006

U-cup-4300 Ureth, 036-01-006

14

O-ring 14mm Idx1 Mm

O-ring 14mm Idx1 Mm

15

Ring-snap, Internal

Ring-snap, Internal

17

Asm-bearing, Fist ([incl. 11-16, 18-20] )

Asm-bearing, Fist ([incl. 11-16, 18-20] )

18

Кольцо уплотнительное

Кольцо уплотнительное

19

Кольцо уплотнительное

Кольцо уплотнительное

20

Bearing-.5 Idx.5 Tlg

Bearing-.5 Idx.5 Tlg

21

O-ring-.070csx1.489id

O-ring-.070csx1.489id

22

Plate, Top Out

Plate, Top Out

23

Ring-retaining, Wire

Ring-retaining, Wire

24

Collar, Aluminum

Collar, Aluminum

25

Asm-body, Pps3 ([incl. 2] )

Asm-body, Pps3 ([incl. 2] )

26

Sleeve, .56x.81x1.28

Sleeve, .56x.81x1.28

27

Bushing, .35ilg, .63tlg

Bushing, .35ilg, .63tlg

28

Sleeve, .385x.560x1.30

Sleeve, .385x.560x1.30

29

Втулка

Втулка

16

Screw-#10-24x.375 800-10-000

Screw-#10-24x.375 800-10-000

16

O-ring, Drum Outer

O-ring, Drum Outer
