Привод сцепления для снегоходов Polaris 700/800 SKS - S03NS7CS/A-S03NS8CS/A (2003)

Москва и регионы России

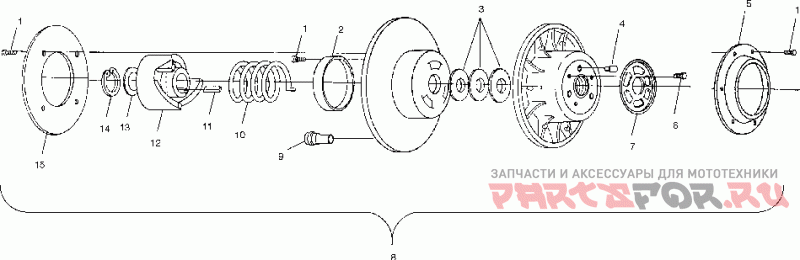

Привод сцепления

Polaris 700/800 SKS - S03NS7CS/A-S03NS8CS/A

Привод сцепления

#

oem код

название

цена

1

Винт

Винт

2

Bushing-driven Large Du

Bushing-driven Large Du

3

Wshr-1.505x2.00x.030-y ([.03] )

Wshr-1.505x2.00x.030-y ([.03] )

3

Washer-1.50x2.00x.025-y ([.025] )

Washer-1.50x2.00x.025-y ([.025] )

3

Washer-1.5x2.0x.020-y ([.02] )

Washer-1.5x2.0x.020-y ([.02] )

3

Washer-1.50x3.00x.075, Fl-y ([.075] )

Washer-1.50x3.00x.075, Fl-y ([.075] )

4

Pin-adjustable Driven

Pin-adjustable Driven

5

Cap-driven, Vented

Cap-driven, Vented

6

Винт

Винт

7

Cam, Driven, Adjustable

Cam, Driven, Adjustable

8

Asm-driven Clutch, Bsc, 204 W/b ([incl. 1-4, 6-9, 11, 13, 14] )

Asm-driven Clutch, Bsc, 204 W/b ([incl. 1-4, 6-9, 11, 13, 14] )

9

Button-ramp, (10)

Button-ramp, (10)

10

Spring, Clutch, Svr/blue ([700] )

Spring, Clutch, Svr/blue ([700] )

10

Spring, Blue, Driven Clutch ([800] )

Spring, Blue, Driven Clutch ([800] )

11

Key Square

Key Square

12

Ramp, Driven, R11, Mach

Ramp, Driven, R11, Mach

14

Стопорное кольцо

Стопорное кольцо

15

Plate-driven, Vented

Plate-driven, Vented

13

Wshr-1.505x2.00x.030-y

Wshr-1.505x2.00x.030-y
