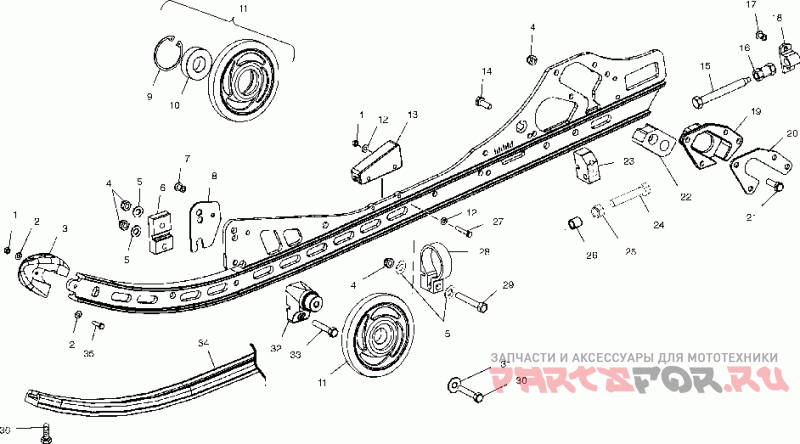

Rail mounting (m-10)

Polaris 500 XC SP EDGE M-10 F/O - S03NF5CS

Polaris
#oem кодцена
1
7541925
Гайка
2
7555792
Шайба
3
5434374
Cap-rail Tip
4
7542324
Nut, Nylok(10) (qty. 10 For Ace)
5
7558402
Washer, Flat(10) (qty. 4 For Ace)
6
5132577
Block-rail Support
7
7661845
Заклёпка
8
5244651
Plate-rail Support
9
7718407
Кольцо удерживающее
10
3514303
Полшипник 6205
11
1590275-312
Asm-wheel Scrlld, 5.35, Blue ([incl. 9, 10] )
11
1590275-216
Asm-wheel Scrolled, 5.35, Scr Yl ([incl. 9, 10] )
12
7555783
Шайба
13
5411947
Bumper-jounce, Rail (m-10)
13
5412336
Bumper-tall (m-10 Ace)
13
5432946
Liner, Bumper (m-10 Ace)
14
7512392
Bolt ([m-10 Only] )
15
7517773
Scr, 7/16-14x3 3/4xhd
16
5132712
Nut-tension, Adj, 7/16-14
17
7621501
Заклёпка
18
5132611
Block-idler Bolt Adj, Thin, 7/16
19
5631188
Guide-slider, Cast, Lh
19
5631189
Guide-slider, Cast, Rh
20
5245045
Plate-coupler Block
21
7512310
Винт (отпускается по 10шт.)
22
5434239
Block-slider, Long, M-10, Lh
22
5434240
Block-slider, Long, M-10, Rh
23
5132584
Block-shock Pivot Threaded ([m-10 Only] )
24
7515511
Screw(10) * ([m-10 Only] )
25
7542404
Nut ([m-10 Only] )
26
5133009
Spacer-.390x.56x.43 ([m-10 Only] )
27
7511967
Bolt (m-10)
27
7510504
Screw (m-10 Ace)
28
5132832
Clamp-reservior ([m-10 Only] )
29
7515319
Bolt ([m-10 Only] )
30
7515382
Болт (поставляется по 10шт)
31
7556179
Washer-spring, Con 5/16x.090-y
32
5631065
Блок крепления колеса
33
7512329
Болт
34
5521571
Slider, Xl, Service, Basic (2)
35
7511975
Винт
36
7515199
Винт (отпускается по 10шт)
1541676-309
Asm-rail, M-10, Lh, Natural ([incl. 1-3, 13, 17, 18, 27, 35] )
1541677-309
Asm-rail, M-10, Rh, Natural ([incl. 1-3, 13, 17, 18, 27, 35] )
1541901-309
Asm-rail, M-10 Ace, Natural, Lh ([incl. 1-3, 13, 17, 18, 27, 35] )
1541902-309
Asm-rail, M-10 Ace, Natural, Rh ([incl. 1-3, 13, 17, 18, 27, 35] )
11
1590275-107
Wheel Scrolled, 5.35, M Blu Asm. ([incl. 9, 10] )
