Shock (rear track) для снегоходов Polaris 500 EDGE - S03NB4BS (2003)

Москва и регионы России

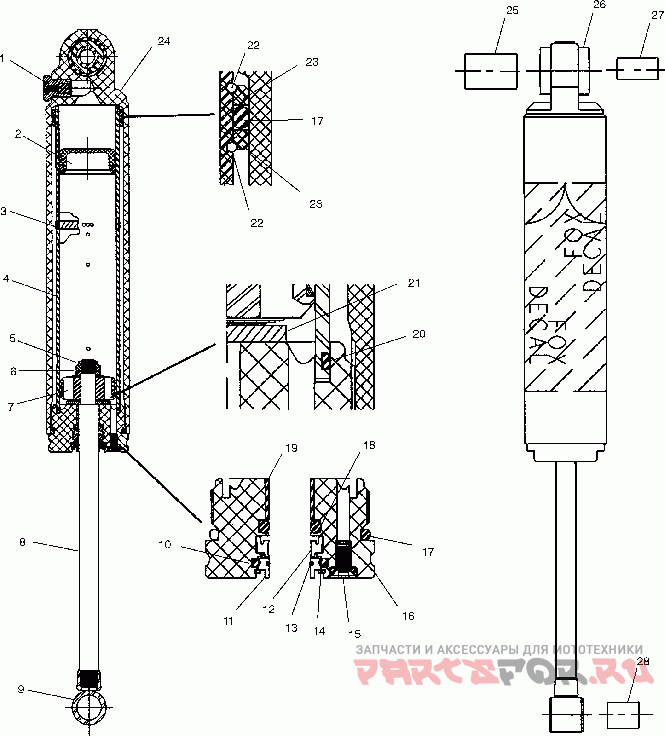

Shock (rear track)

Polaris 500 EDGE - S03NB4BS

Shock (rear track)

#

oem код

название

цена

1

Screw-#10-24x.375 800-10-000

Screw-#10-24x.375 800-10-000

1

O-ring, Drum Outer

O-ring, Drum Outer

2

Asm-floating Piston

Asm-floating Piston

2

Ring, Piston, Floating,

Ring, Piston, Floating,

2

O-ring, Endcap

O-ring, Endcap

3

Valve, Check, Nbr Duro A 90

Valve, Check, Nbr Duro A 90

4

Body, Asm, Inner P.s.

Body, Asm, Inner P.s.

5

Гайка

Гайка

6

Plate, Backup

Plate, Backup

7

Piston-.063 Bleed

Piston-.063 Bleed

7

Damper, Piston Ring

Damper, Piston Ring

8

Shaft-.5x8.41 Tlg

Shaft-.5x8.41 Tlg

9

Eyelet-.88w 1.38tlg 808-05-002

Eyelet-.88w 1.38tlg 808-05-002

10

O-ring, .103x.73id

O-ring, .103x.73id

11

Scraper-fist, Delrin

Scraper-fist, Delrin

12

U-cup-4300 Ureth, 036-01-006

U-cup-4300 Ureth, 036-01-006

13

O-ring 14mm Idx1 Mm

O-ring 14mm Idx1 Mm

14

Ring-snap, Internal

Ring-snap, Internal

16

Asm-bearing, Fist ([incl. 10-15, 17-19] )

Asm-bearing, Fist ([incl. 10-15, 17-19] )

17

Кольцо уплотнительное

Кольцо уплотнительное

18

Кольцо уплотнительное

Кольцо уплотнительное

19

Bearing-.5 Idx.5 Tlg

Bearing-.5 Idx.5 Tlg

20

O-ring-.070csx1.489id

O-ring-.070csx1.489id

21

Plate, Top Out

Plate, Top Out

22

Ring-retaining, Wire

Ring-retaining, Wire

23

Collar, Aluminum

Collar, Aluminum

24

Asm-body, Pps3 ([incl. 1] )

Asm-body, Pps3 ([incl. 1] )

25

Sleeve, .56x.81x1.28

Sleeve, .56x.81x1.28

26

Bushing, .35ilg, .63tlg

Bushing, .35ilg, .63tlg

27

Sleeve, .385x.560x1.30

Sleeve, .385x.560x1.30

28

Втулка

Втулка

Shock-r/t, Alum, Pps

Shock-r/t, Alum, Pps

15

Screw-#10-24x.375 800-10-000

Screw-#10-24x.375 800-10-000

15

O-ring, Drum Outer

O-ring, Drum Outer
