Seat and gas tank для снегоходов Polaris 700 SKS EURO - S02SS7CE (2002)

Москва и регионы России

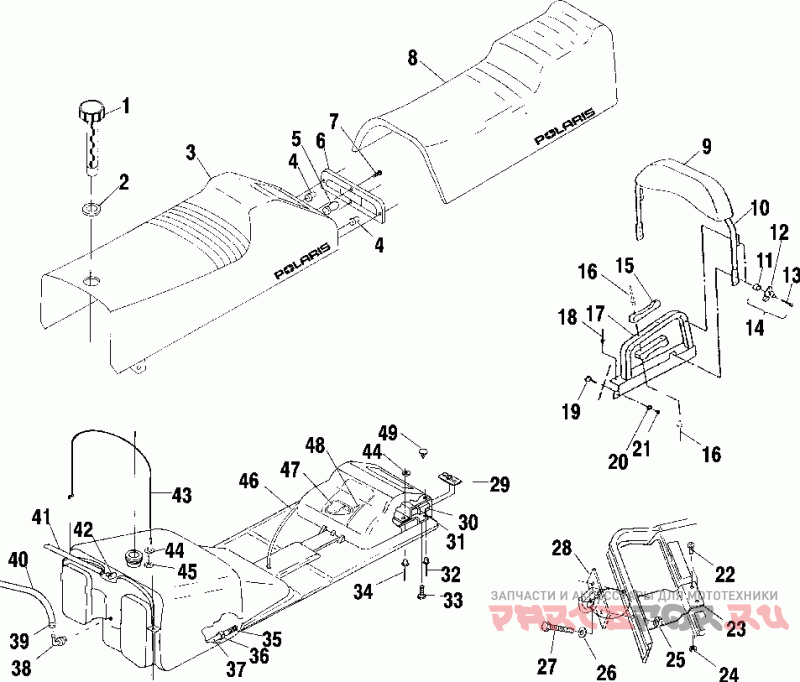

Seat and gas tank

Polaris 700 SKS EURO - S02SS7CE

Seat and gas tank

#

oem код

название

цена

1

Cap, Gas, W/gauge

Cap, Gas, W/gauge

1

Gasket, Gas Cap

Gasket, Gas Cap

2

Grommet, Fueltank

Grommet, Fueltank

3

Asm, Seat Cover (us)

Asm, Seat Cover (us)

4

Лампа (отпускается по 10 шт)

Лампа (отпускается по 10 шт)

5

Bulb

Bulb

6

Lens, Taillight ***

Lens, Taillight ***

7

Винт (отпускается по 10шт.)

Винт (отпускается по 10шт.)

8

Asm-seat Cushion (incl. 4-38, 41-43)(euro)

Asm-seat Cushion (incl. 4-38, 41-43)(euro)

8

Asm-seat Cover, 2-up (euro)

Asm-seat Cover, 2-up (euro)

9

Cover, Backrest (euro)

Cover, Backrest (euro)

10

Backrest Asm. (incl. 9)(euro)

Backrest Asm. (incl. 9)(euro)

11

Spacer (euro)

Spacer (euro)

12

Knob, Backrest

Knob, Backrest

13

Screw (euro)

Screw (euro)

14

Knob Asm, Backrest (incl. 11, 13)(euro)

Knob Asm, Backrest (incl. 11, 13)(euro)

15

Grip-hand W/insert (euro)

Grip-hand W/insert (euro)

16

Rivet-5mmx35mm-al-b (50) (euro)

Rivet-5mmx35mm-al-b (50) (euro)

17

Grab, Bar, Lh, Blk (euro)

Grab, Bar, Lh, Blk (euro)

17

Grab, Bar, Rh, Blk (euro)

Grab, Bar, Rh, Blk (euro)

18

Rivet, Interlock, Z(50) * (euro)

Rivet, Interlock, Z(50) * (euro)

19

Bolt, 5/16-18x3/4 (euro)

Bolt, 5/16-18x3/4 (euro)

20

Washer, Flat(10) (euro)

Washer, Flat(10) (euro)

21

Nut, Nylok(10) (euro)

Nut, Nylok(10) (euro)

22

Screw (euro)

Screw (euro)

23

Plate, Hitchbrace, Blk. (euro)

Plate, Hitchbrace, Blk. (euro)

24

Nut (euro)

Nut (euro)

25

Nut, Nylok(10) (euro)

Nut, Nylok(10) (euro)

26

Washer (euro)

Washer (euro)

27

Bolt (euro)

Bolt (euro)

29

Nut, Retainer-weld.

Nut, Retainer-weld.

30

Housing-taillight

Housing-taillight

31

Cover, T/l Protector

Cover, T/l Protector

32

Rivet(10)

Rivet(10)

33

Винт

Винт

34

Заклёпка

Заклёпка

35

Pick-up-fuel, W/filter, 105micrn

Pick-up-fuel, W/filter, 105micrn

36

Ring, Compression

Ring, Compression

37

Fuel Line-ester

Fuel Line-ester

38

Fitting, Out, 90 Deg, , Double

Fitting, Out, 90 Deg, , Double

39

Зажим (отпуск по 10 шт)

Зажим (отпуск по 10 шт)

40

Tubing-ether Erethne, 160cm, Svc

Tubing-ether Erethne, 160cm, Svc

41

Трубопровод 3mmx7mm

Трубопровод 3mmx7mm

42

Fitting, 90 Deg, 1/8

Fitting, 90 Deg, 1/8

43

Cable, Tank, Retention

Cable, Tank, Retention

44

Шайба

Шайба

45

Гайка

Гайка

47

Retainer-clip, Tool Pouch

Retainer-clip, Tool Pouch

48

Заклепка (отпускается по 50 шт)

Заклепка (отпускается по 50 шт)

49

Clip, Dart, (10)

Clip, Dart, (10)
