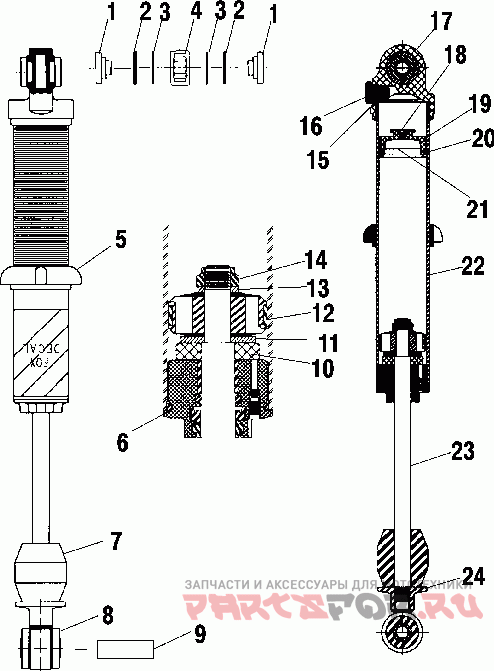

Fox shock

Polaris XCF EDGE - S00NX4FS

Polaris
#oem кодцена
2200618
Kit, Valv.piston
1
1500092
Reducer, (fox), (sp)
2
7710446
Ring, Snap, (fox Sp)
3
1500093
O-ring, (fox), Sp
4
3513506
Bearing, Spherical
5
5432304
Ring, Spring Preload, Adj
6
1500186
Bearing-assembly
6
1500020
O-ring, .103w-1.299id
6
1500021
O-ring Inner
6
5433298
Seal, Wiper Urethane (fox)
6
1500266
U-cup-4300 Ureth, 036-01-006
6
1500070
Винт
6
1500071
Ball, (fox)
7
5410855
Bumper, Jounce
8
1500137
Bushing, Eyelet
10
5431355
Проставка
11
1500017
Plate, Top Out
12
1500002
Damper, Piston Ring
13
1500015
Plate, Backup
14
1500016
Гайка
15
1500108
O-ring, .103w-1.549id
16
1500014
Valve Asm, Air
16
1500019
Винт
16
1500023
O-ring, Outer
17
1500316
Cap, Asm, Body
18
1500018
Винт
18
1500022
O-ring, Drum Outer
19
1500003
O-ring, Endcap
20
1500006
Ring, Piston, Floating,
21
1500187
Piston-floating
23
1500272
Shaft-.498 X 8.7
24
1500317
Eyelet, 1.5 Base, 2.01
