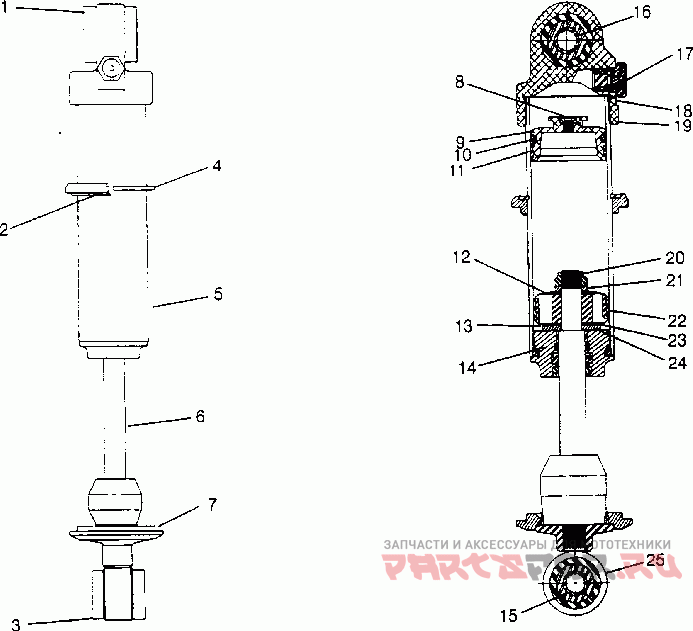

Fox shock, gas

Polaris 0956768 RXL LT

Polaris
#oem кодцена
1
1500137
Bushing, Eyelet
2
5020617
Retainer, Spring Body
3
1500184
Bushing-eyelet.35x.575x.595fox
4
7710424
Ring, Retaining(10)
7
5020618
Retainer, Spring, Slotted
8
1500022
O-ring, Drum Outer
8
1500018
Винт
9
1500011
Поршень
10
1500003
O-ring, Endcap
11
1500006
Ring, Piston, Floating,
12
1500048
Valve, Shock
12
1500049
Valve, Shock
12
1500052
Valve, Shock
12
1500053
Valve, Shock
12
1500055
Valve, Shock
13
1500047
Valve, Shock
13
1500045
Valve, Shock
13
1500026
Valve, Shock
13
1500046
Valve, Shock
14
1500021
O-ring Inner
14
5433298
Seal, Wiper Urethane (fox)
14
1500266
U-cup-4300 Ureth, 036-01-006
14
1500070
Винт
14
1500071
Ball, (fox)
14
1500265
Bearing Asm.498dia, 812-03-006
15
5020640
Bushing, (1.24)
16
5020613
Bushing, (1.16 In.)
17
1500014
Valve Asm, Air
17
1500023
O-ring, Outer
17
1500019
Винт
18
1500004
O-ring, Body, Fox, .139w-1.234id
20
1500016
Гайка
21
1500015
Plate, Backup
22
1500002
Damper, Piston Ring
23
1500017
Plate, Top Out
24
1500074
Bumper, Rubber
25
1500013
Eyelet
25
1500063
Retainer,spring,body,threaded (see Pg., Ref. )
