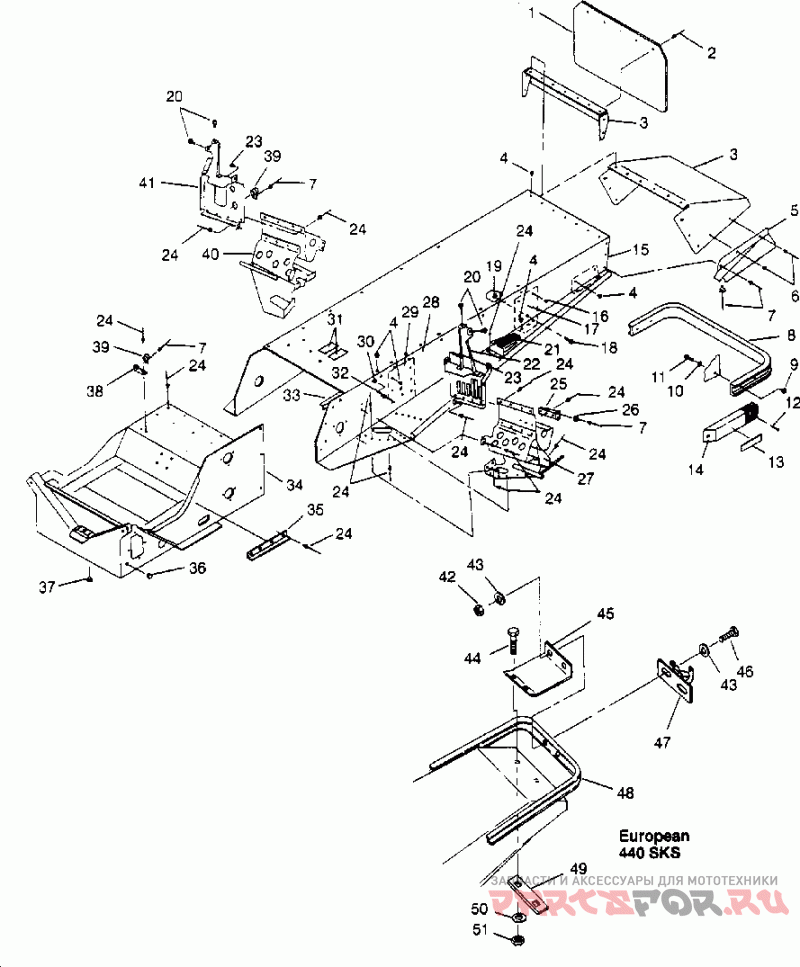

Tunnel assembly 440 0952760, 440 sks 0952560, and european 440 sks e952560

Polaris 0952760 440 L/C

Polaris
#oem кодцена
1
5410394-1038
Flap-snow, Molded, Blk W/white
2
7621418
Заклепка (отпускается по 50шт)
4
7661841
Rivet, Semi-tube, (50)
5
5431627-070
Skirt, Lh, Snow, Blk. (sks Only)
5
5431645-070
Skirt, Rh, Snow, Blk. (sks Only)
6
7621472
Rivet(50) * (sks Only)
7
7621432
Rivet, 3/16x.402(50) (440)
8
5224349-067
Bumper, R.sks Efi (sks)
8
5224334-067
Bumper, Rear, Blk. (440)
9
7542122
Гайка (отпускается по 10шт)
10
7558301
Шайба (отпускается по 10 шт)
11
7512240
Болт
12
7511863
Винт
13
2670070
Отражатель Красный
14
5430930-070
Cap, Bumper, Blk.
15
1012085
Tunnel Asm, Blk, 'liq' (440)
15
1012088
Tunnel Asm, Blk, Sks, 'liq' (sks)
15
1012098
Tunnel Asm, Blk, Liq.sks (euro)
16
7661840
Rivet, Semi-tube, (50)
17
1011905-067
Brkt, Lh.rear Susp (sks)
17
1011857-067
Brkt, Lh, R.susp (440)
17
1011906-067
Brkt, Rh.rear Susp. (sks)
18
7515482
Bolt (sks Only)
19
7542423
Nut, Flange (sks Only)
20
5410768
Bumper, Hood
21
5830007
Pad, Lh Foot Safety (euro)
21
5830008
Pad, Rh Foot Safety (euro)
21
5220894-067
Footrest, Rh R, Blk. (euro)
21
5220893-067
Footrest, Lh R, Blk. (euro)
22
1011951-067
Mt, Console, Lh
23
7512057
Винт
24
7661638
Rivet, Interlock, B(50)
25
5240294-067
Support, Bumperside, Blk.
29
5211323-067
Brkt, F.susp., Blk.
30
7080227
Snap-male
32
7621222
Заклёпка
34
1012231-067
Bulkhead, Blk.
35
5222857
Guard, Adapter Guide
37
7080398
Затычка
38
5222687-067
Brkt, Rope Guide, Blk.
39
5431385
Guide, Recoil
41
1011952-067
Mt, Console, Rh
42
7542451
Nut, Nylok(10) * (euro)
43
7555806
Washer, Flat(10) (euro)
44
7512377
Bolt, Carriage (euro)
45
5222605-067
Brkt, Hitch (euro)
46
7515521
Bolt (euro)
50
7558402
Washer, Flat(10) (euro)
51
7542324
Nut, Nylok(10) (euro)
21
5254390-067
Footrst-passnger, Coined, Lh, Blk (euro)
