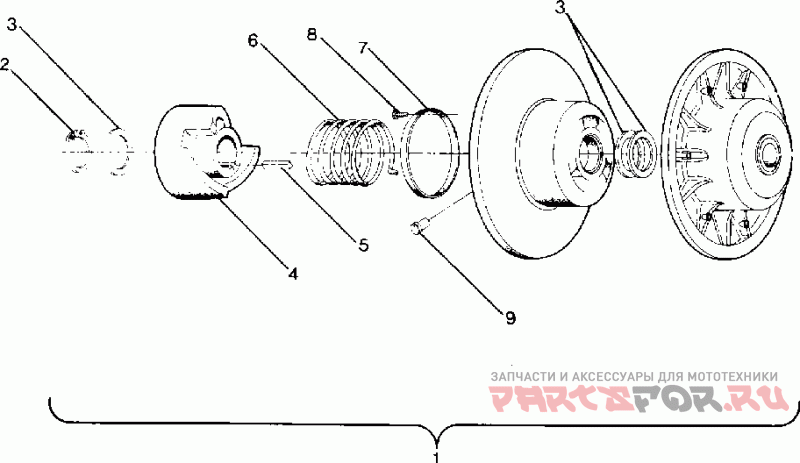

Driven clutch star, sprint and sprint e/s
Polaris 0870933 SPRINT
| # | oem код | название | цена |
|---|---|---|---|
1 | 1321925 Asm-driven Clutch, Bsc, 203 N/b (incl. 2-9) | Asm-driven Clutch, Bsc, 203 N/b (incl. 2-9) | |
2 | 7714804 Стопорное кольцо | Стопорное кольцо | |
3 | 7556804 Wshr-1.505x2.00x.030-y | Wshr-1.505x2.00x.030-y | |
4 | 5130895 Ramp, Driven, 36 Degree | Ramp, Driven, 36 Degree | |
5 | 7721103 Key Square | Key Square | |
6 | 7041198 Spring, Clutch, (red) | Spring, Clutch, (red) | |
7 | 3569803 Bushing-driven Large Du (d.u.) | Bushing-driven Large Du (d.u.) | |
8 | 7512048 Винт | Винт | |
9 | 5430466 Button-ramp, (10) | Button-ramp, (10) |
