Двигатель и крепление для снегоходов Lynx (Bombardier) XTRIM RE (2017)

Москва и регионы России

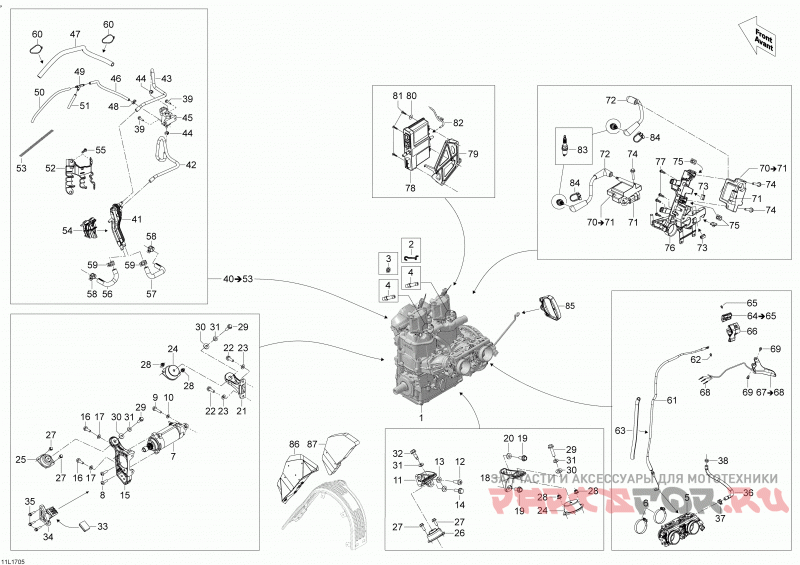

Двигатель и крепление

Lynx (Bombardier) XTRIM RE

Двигатель и крепление

#

oem код

название

цена

1

Engine 800r E-tec

Engine 800r E-tec

2

Lock

Lock

3

Push Nut

Push Nut

4

Hose Nipple

Hose Nipple

5

Throttle Body. Model - 600 E-tec

Throttle Body. Model - 600 E-tec

5

Throttle Body. Model - 800 E-tec

Throttle Body. Model - 800 E-tec

6

Clamp. Model - 600 E-tec

Clamp. Model - 600 E-tec

6

Clamp. Model - 800 E-tec

Clamp. Model - 800 E-tec

7

Electric Starter. Model-electric Start

Electric Starter. Model-electric Start

8

Pan Hd Torx Screw M8 X 25. Model-electric Start

Pan Hd Torx Screw M8 X 25. Model-electric Start

9

Hex. Flange Screw M8 X 35. Model-electric Start

Hex. Flange Screw M8 X 35. Model-electric Start

10

Flat Washer. Model-electric Start

Flat Washer. Model-electric Start

11

Rear Support (pto)

Rear Support (pto)

12

Torx Screw M8 X 25, Scotch Grip

Torx Screw M8 X 25, Scotch Grip

13

Conical Spring Washer M8

Conical Spring Washer M8

14

Hex. Flange Screw M8 X 25, Scotch Grip

Hex. Flange Screw M8 X 25, Scotch Grip

15

Front Support (pto). Model - 600 E-tec

Front Support (pto). Model - 600 E-tec

15

Front Support (pto). Model - 800 E-tec

Front Support (pto). Model - 800 E-tec

16

Hex. Flange Screw M8 X 25, Scotch Grip

Hex. Flange Screw M8 X 25, Scotch Grip

17

Conical Spring Washer M8

Conical Spring Washer M8

18

Rear Support (mag)

Rear Support (mag)

19

Hex. Flange Screw M8 X 20, Scotch Grip

Hex. Flange Screw M8 X 20, Scotch Grip

20

Conical Spring Washer M8

Conical Spring Washer M8

21

Front Support (mag)

Front Support (mag)

22

Hex. Flange Screw M8 X 25, Scotch Grip

Hex. Flange Screw M8 X 25, Scotch Grip

23

Conical Spring Washer M8

Conical Spring Washer M8

24

Rubber Mount

Rubber Mount

25

Rubber Mount

Rubber Mount

26

Rubber Mount

Rubber Mount

27

Hex. Flange Screw M6 X 16, Scotch Grip

Hex. Flange Screw M6 X 16, Scotch Grip

28

Hex. Flange Elastic Nut M6

Hex. Flange Elastic Nut M6

29

Hex. Flange Screw M8 X 30

Hex. Flange Screw M8 X 30

30

Шайба

Шайба

31

Conical Spring Washer M8

Conical Spring Washer M8

32

Hex. Screw M8

Hex. Screw M8

33

Stopper. Model - 600 E-tec

Stopper. Model - 600 E-tec

33

Stopper. Model - 800 E-tec

Stopper. Model - 800 E-tec

34

Stopper Support

Stopper Support

35

Hex. Flange Screw M6 X 25, Scotch Grip

Hex. Flange Screw M6 X 25, Scotch Grip

36

Шланг

Шланг

37

Зажим

Зажим

38

Зажим

Зажим

39

Hex. Flange Screw K50 X 16

Hex. Flange Screw K50 X 16

40

Manifold Ass´y. Includes 40 To 53

Manifold Ass´y. Includes 40 To 53

41

Manifold

Manifold

42

Hose (275mm)

Hose (275mm)

43

Hose (410mm)

Hose (410mm)

44

Crimp Clamp

Crimp Clamp

45

Solenoid Valve

Solenoid Valve

46

Hose (220mm)

Hose (220mm)

47

Tubing

Tubing

48

Tie Rap 94mm

Tie Rap 94mm

49

T-fitting

T-fitting

50

Hose (180mm)

Hose (180mm)

51

Hose (50mm)

Hose (50mm)

52

Clip Ass´y

Clip Ass´y

53

Пружина

Пружина

54

Manifold Support. Model - 600 E-tec

Manifold Support. Model - 600 E-tec

54

Manifold Support. Model - 800 E-tec

Manifold Support. Model - 800 E-tec

55

Hex. Hd Forming Screw M5 X 11

Hex. Hd Forming Screw M5 X 11

56

Шланг

Шланг

57

Шланг

Шланг

58

Spring Clamp

Spring Clamp

59

Crimp Clamp

Crimp Clamp

60

Tie Rap 94mm

Tie Rap 94mm

61

Throttle Cable

Throttle Cable

62

Пружинное стопорное кольцо

Пружинное стопорное кольцо

63

Tubing 9mm

Tubing 9mm

64

Upper Housing. Includes 64 To 65

Upper Housing. Includes 64 To 65

65

Set Screw M8 X 10

Set Screw M8 X 10

66

Lower Housing

Lower Housing

67

Throttle Handle Ass'y. Includes 67 To 68

Throttle Handle Ass'y. Includes 67 To 68

68

Male Terminal

Male Terminal

69

Shoulder Screw

Shoulder Screw

70

Ignition Coil. Includes 70 To 71

Ignition Coil. Includes 70 To 71

71

Male Housing, 3 Circuits

Male Housing, 3 Circuits

72

Ignition Cable

Ignition Cable

73

Зажим

Зажим

74

Hex. Flange Screw M6 X 30

Hex. Flange Screw M6 X 30

75

Гайка

Гайка

76

Суппорт

Суппорт

77

Hex. Flange Screw K50 X 16

Hex. Flange Screw K50 X 16

78

Calibrated Module 600 E-tec. Model - 600 E-tec

Calibrated Module 600 E-tec. Model - 600 E-tec

78

Calibrated Module 800 E-tec. Model - 800 E-tec

Calibrated Module 800 E-tec. Model - 800 E-tec

79

Calibrated Module Support

Calibrated Module Support

80

Шайба

Шайба

81

Truss Head Torx Screw K50 X 20

Truss Head Torx Screw K50 X 20

82

Шланг

Шланг

83

Spark Plug. Model - 600 E-tec

Spark Plug. Model - 600 E-tec

83

Spark Plug (pfr7ab). Model - 800 E-tec

Spark Plug (pfr7ab). Model - 800 E-tec

84

Зажим

Зажим

85

Starter Grip

Starter Grip

86

Noise Shield

Noise Shield

87

Noise Foam

Noise Foam
