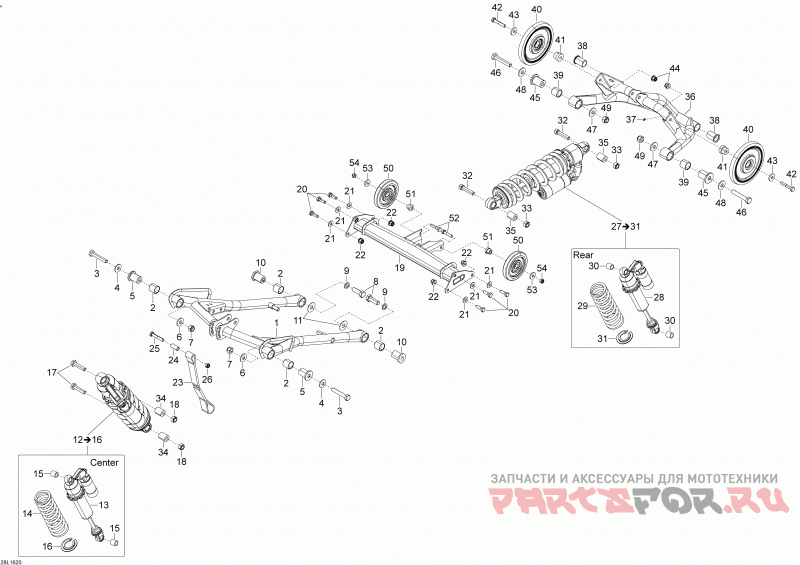

Задняя подвеска

Lynx (Bombardier) Rave RS Racing

Lynx (Bombardier)
#oem кодцена
1
503193561
Front Arm
2
503191554
Втулка
3
250000696
Hex. Cap Screw M10 X 60
4
250200138
Шайба
5
503194580
Axle
6
503191926
Шайба
7
233601466
Elastic Locking Nut M10
8
250000537
Hex. Cap Screw M12 X 35
9
503192491
Шайба
10
503194579
Axle
11
503190656
Шайба
12
XXX
Center Shock Ass'y. Includes 12 To 16
13
503193134
Shock
14
503192355
Spring (220mm - 60n/mm)
15
31094
Glide Bearing
16
605354631
Spring Lock
17
207004544
Hex. Cap Screw M10 X 45
18
232500416
Elastic Stop Nut
19
503193623
Middle Beam
20
250000556
Hex. Cap Screw M8 X 25
21
503192494
Шайба
22
233281414
Elastic Flange Nut M8
23
605355116
Limiter Strap
24
605455335
Гильца
25
207084544
Hex. Cap Screw M8 X 45
26
232581414
Elastic Stop Nut M8
27
XXX
Rear Shock Ass'y. Includes 27 To 31
28
503193136
Shock
29
503192356
Spring (280mm - 65n/mm)
30
31094
Glide Bearing
31
605354631
Spring Lock
32
205004544
Socket Hd Screw M10 X 45
33
232500416
Elastic Stop Nut M10
34
5446652
Втулка
35
5446652
Втулка
36
503194325
Задний рычаг
37
408200700
Grease Fitting
38
503191640
Подушка
39
503191554
Втулка
40
503193852
Idler Wheel 140mm
41
605454461
Гильца
42
207084544
Hex. Cap Screw M8 X 45
43
20077
Шайба
44
233281414
Elastic Flange Nut M8
45
503194580
Axle
46
250000696
Hex. Cap Screw M10 X 60
47
503191926
Шайба
48
503191926
Шайба
49
233601466
Elastic Locking Nut M10
50
572043500
Idler Wheel
51
503193330
Гильца
52
207083544
Hex. Cap Screw M8 X 35
53
20077
Шайба
54
232581414
Elastic Stop Nut M8
