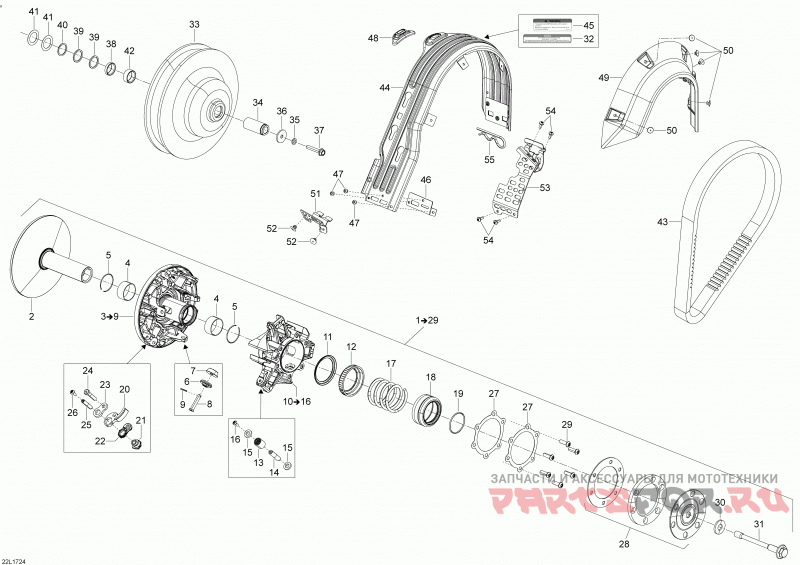

Защита ремня вариатора

Lynx (Bombardier) Rave RS Racing

Lynx (Bombardier)
#oem кодцена
1
XXX
Drive Pulley Ass'y. Includes 1 To 29
2
417224196
Fixed Flange Ass'y
3
417224230
Sliding Flange Ass'y. Includes 3 To 9
4
293250389
Втулка
5
293370117
Пружинное стопорное кольцо
6
417223991
Back-torque Roller
7
417224034
Torque Roller
8
417223992
Axle
9
250400074
Spring Pin
10
417224055
Spider Ass'y. Includes 10 To 16
11
XXX
Spring Seat
12
417224151
Пружина
13
417223808
Roller Ass'y
14
417223989
Axle
15
417224009
Шайба
16
250000763
Torx Truss Screw M5 X 14
17
417224234
Пружинка
18
417224003
Spring Seat Ass'y
19
293370116
Пружинное стопорное кольцо
20
417224112
Ramp (960)
21
417224113
Molded Cam
22
417224086
Right Lever
23
417224114
Left Lever
24
417224117
Pivot 38mm
25
417223631
Ramp Axle
26
250000763
Torx Truss Screw M5 X 14
27
417224060
Регулировочная прокладка
28
417223994
Подушка
29
250000757
Button Hd Torx Screw M8 X 25
30
250200144
Conical Spring Washer
31
417300493
Drive Pulley Bolt
32
516005503
Drive Pulley Bolt Decal
33
417127530
Driven Pulley Ass'y
34
417127300
Втулка
35
20072
Шайба
36
503183100
Шайба
37
207584544
Hex. Flange Screw M8 X 45
38
504149100
Spacer (5,25 Mm)
39
417300252
Spacer (2,0 Mm). (adjustment Part, Use If Needed)
40
417300265
Spacer (1,0 Mm). (adjustment Part, Use If Needed)
41
504112000
Shim (0,5 Mm). (adjustment Part, Use If Needed)
42
417300399
Spacer (11,7 Mm)
43
417300288
Ремень
44
860200362
Belt Guard Ass'y
45
516006900
Belt Guard Security Label
46
417300380
Спинка
47
390909200
Avex Rivet
48
417300381
Уплотнитель резиновый
49
417300431
Side Protector
50
293150103
Pop Rivet 3/16"
51
417300360
Belt Guard Bracket
52
293150104
Pop Rivet 3/16"
53
417300448
Belt Guard Bracket
54
250000742
Torx Screw M5 X 14
55
114045200
Hair Pin
