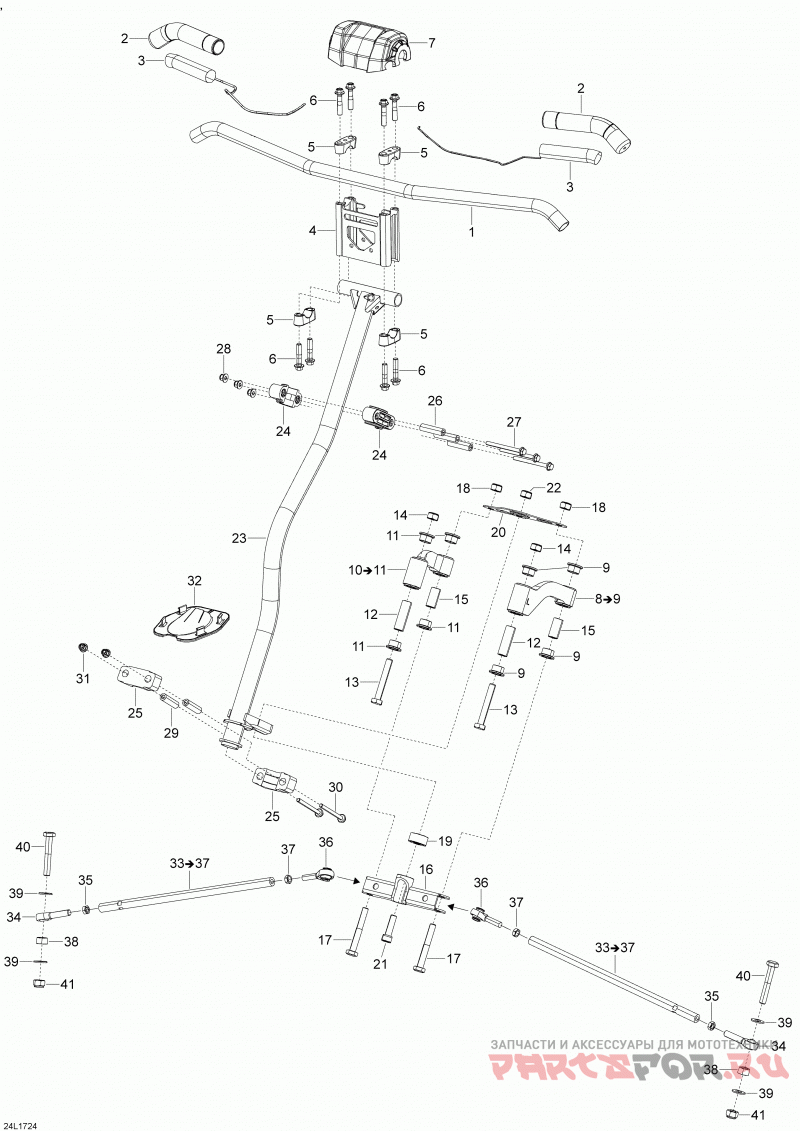

Рулевая система

Lynx (Bombardier) Rave RS Racing

Lynx (Bombardier)
#oem кодцена
1
506152712
Руль
2
506152483
Рукоятка
3
506152428
Heated Film
4
506151753
Extension (115mm)
5
506152751
Steering Support
6
250000352
Hex. Flange Screw M8 X 40
7
506152553
Steering Pad
8
506152719
Lh Swivel Arm Ass'y. Includes 8 To 9
9
505072690
Втулка
10
506152720
Rh Swivel Arm Ass'y. Includes 10 To 11
11
505072690
Втулка
12
506152691
Swivel Pivot
13
207007044
Hex. Screw M10 X 70
14
232500416
Elastic Stop Nut M10
15
506152696
Swivel Pivot
16
506152693
Swivel Bar
17
207108044
Hex. Screw M10 X 80
18
232500416
Elastic Stop Nut M10
19
506152714
Подшипник
20
506152697
Пластина
21
205003544
Socket Screw M10 X 35
22
232500416
Elastic Stop Nut M10
23
506152965
Main Tube
24
506152293
Upper Half-housing
25
506152549
Lower Half-housing
26
506152297
Housing Bushing
27
207667086
Hex. Flange Screw M6 X 70
28
233261416
Elastic Flange Nut M6
29
506152297
Housing Bushing
30
207667086
Hex. Flange Screw M6 X 70
31
233261416
Elastic Flange Nut M6
32
506152163
Пластина
33
506152715
Tie Rod Ass'y. Includes 33 To 37
34
506152081
Lh Ball Joint
35
250100016
Lh Hex. Jam Nut M10
36
506152019
Rh Ball Joint
37
732610010
Rh Hex. Jam Nut M10
38
506152713
Шайба
39
506152582
Шайба
40
207006544
Hex. Screw M10 X 55
41
233601466
Elastic Stop Nut M10
