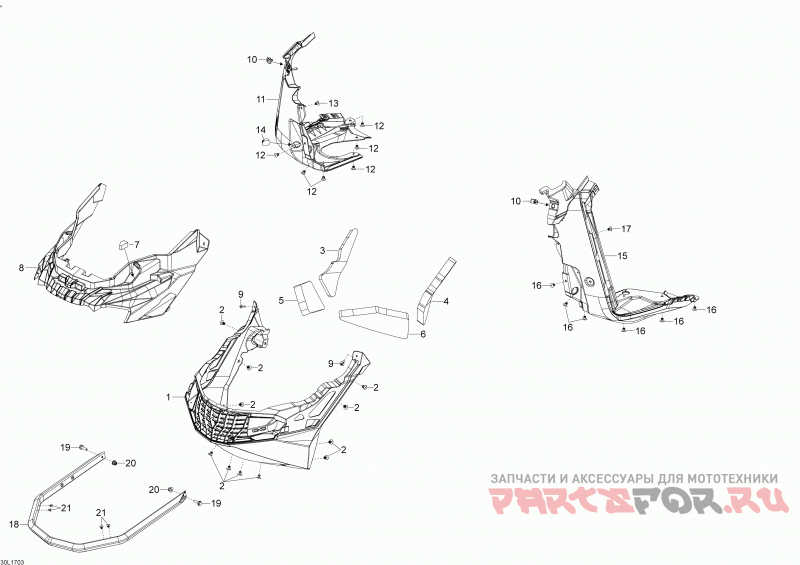

Защита и бампер

Lynx (Bombardier) Rave RE

Lynx (Bombardier)
#oem кодцена
1
502007172
Black Bottom Pan
2
293150104
Pop Rivet 3/16"
3
502007243
Rh Foam Upper
4
502007244
Lh Foam Upper
5
502007245
Rh Foam Lower
6
502007246
Lh Foam Lower
7
517305812
Foam
8
502007284
Front Cap
9
250000528
Torx Truss Screw M5 X 20
10
250000079
Panel Nut M5
11
502007259
Black Rh Bottom Pan. Model-std
11
502007506
Black Rh Bottom Pan. Model-ledc
12
293150104
Pop Rivet 3/16"
13
293150103
Pop Rivet 3/16"
14
414916600
Заглушка
15
502007260
Black Lh Bottom Pan. Model-std
15
502007507
Black Lh Bottom Pan. Model-ledc
16
293150104
Pop Rivet 3/16"
17
293150103
Pop Rivet 3/16"
18
502007281
Амортизатор ударов
19
207662044
Hex. Flange Screw M6 X 20
20
233261414
Elastic Flange Nut M6
21
293150104
Pop Rivet 3/16"
