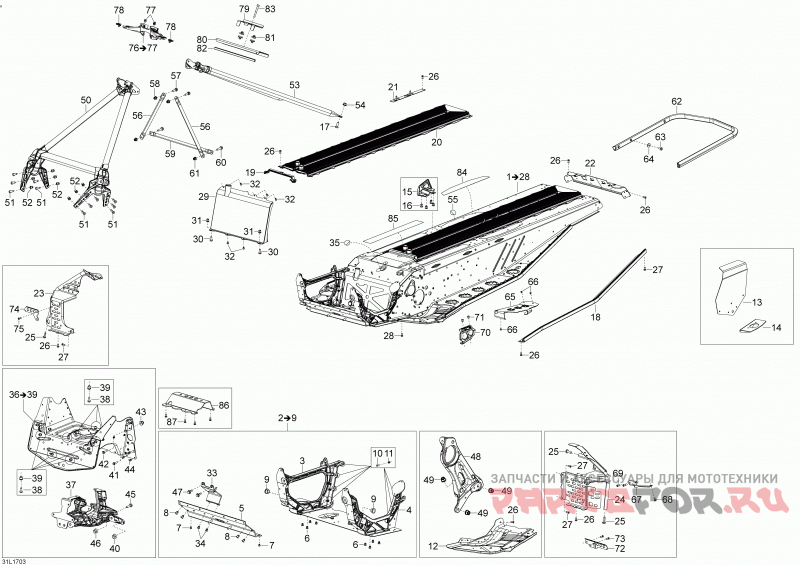

Рама

Lynx (Bombardier) Rave RE

Lynx (Bombardier)
#oem кодцена
1
518329574
Red Frame. Includes 1 To 28, Model-std
1
518329593
Red Frame. Includes 1 To 28, Model-ledc
2
518327646
E Module. Includes 2 To 9
3
518326795
Rh Member
4
518326796
Lh Member
5
518326198
Front Member
6
390909100
заклёпка
7
293150120
заклёпка
8
293150119
заклёпка
9
505072690
Подушка
10
207662044
Hex. Flange Screw M6 X 20
11
233261414
Elastic Flange Nut M6
12
518327242
Lh Front Tunnel
12
518327243
Rh Front Tunnel
13
518329579
Lh Rear Arm Support
13
518329580
Rh Rear Arm Support
14
518329581
Rear Support
15
518328436
Rh Rear Base
15
518328435
Lh Rear Base
16
293150147
заклёпка
17
207182086
Hex. Cap Screw M8 X 20
18
518327517
Lh Side Profile
18
518327518
Rh Side Profile
19
518326656
Уплотнение
20
518326786
Rear Radiator
21
XXX
Battery Support
22
518327240
Rear Cap
23
518328940
Rh Stirrup
24
518328528
Lh Stirrup
25
250000752
Pan Hd Torx Screw M8 X 25
26
390909200
заклёпка
27
390909100
заклёпка
28
293150096
заклёпка
29
518326485
Front Radiator
30
207662044
Hex. Flange Screw M6 X 20
31
233261414
Elastic Flange Nut M6
32
390909200
заклёпка
33
518325943
Mag Support
34
293150119
заклёпка
35
518325560
Adhesive Patch
36
518328392
Cross Member. Includes 36 To 39, Rac Kit
36
518328394
Cross Member. Includes 36 To 39, Re Kit
37
518327487
Суппорт
38
207662044
Hex. Flange Screw M6 X 20
39
233261414
Elastic Flange Nut M6
40
233281414
Elastic Flange Nut M8
41
210262050
Forming Screw M6 X 20
42
207662544
Hex. Flange Screw M6 X 25
43
233261414
Elastic Flange Nut M6
44
293150179
заклёпка
45
207662044
Hex. Flange Screw M6 X 20
46
233261414
Elastic Flange Nut M6
47
207661644
Hex. Flange Screw M6 X 16
48
518327460
Pulley Support
49
233281414
Elastic Flange Nut M8
50
518327565
Front Member
51
207662044
Hex. Flange Screw M6 X 20
52
233261414
Elastic Flange Nut M6
53
518327237
Rear Member
54
233281414
Elastic Flange Nut M8
55
518325560
Adhesive Patch
56
518325114
Суппорт
57
207662056
Hex. Flange Screw M6 X 20
58
233261416
Elastic Flange Nut M6
59
518325115
Upper Column
60
207662556
Hex. Flange Screw M6 X 25
61
233261416
Elastic Flange Nut M6
62
518328071
Black Rear Bumper
63
250000779
Torx Truss Screw M6 X 18
64
224061201
Шайба
65
518327979
Black Lh Footrest
65
518327980
Black Rh Footrest
66
36005
заклёпка
67
518328079
Brake Cover Support
68
390909200
заклёпка
69
293150103
Pop Rivet 3/16"
70
518327507
Black Lh Foot Support
70
518327508
Black Rh Foot Support
71
293150120
заклёпка
72
518327613
Lh Spring Support Plate
73
293150103
Pop Rivet 3/16"
74
518327614
Rh Spring Support Plate
75
390909200
заклёпка
76
518327145
Support. Includes 76 To 77
77
XXX
Втулка
78
250000079
Panel Nut M5
79
513033746
Upper Support Plate
80
513033747
Lower Support Plate
81
605452114
Rubber Plug
82
XXX
Sealing List
83
205065044
Socket Hd Screw M6 X 50
84
516006448
Fuel Tank Protection Decal
85
516007041
Fuel Tank Protection Decal
86
518327285
Engine Support. Model-rs Kit
87
390909200
Rivet. Model-rs Kit
