Защита ремня вариатора для снегоходов Lynx (Bombardier) Rave (2-Stroke) (2017)

Москва и регионы России

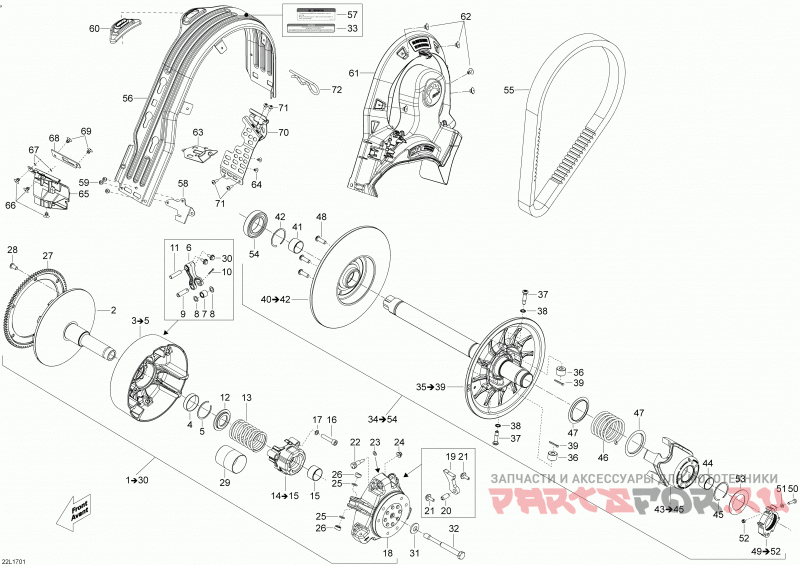

Защита ремня вариатора

Lynx (Bombardier) Rave (2-Stroke)

Защита ремня вариатора

#

oem код

название

цена

1

Drive Pulley Ass'y. Includes 1 To 30

Drive Pulley Ass'y. Includes 1 To 30

2

Fixed Flange Ass'y

Fixed Flange Ass'y

3

Sliding Flange Ass'y. Includes 3 To 5

Sliding Flange Ass'y. Includes 3 To 5

4

Втулка

Втулка

5

Пружинное стопорное кольцо

Пружинное стопорное кольцо

6

Lever Ass´y

Lever Ass´y

7

Roller Ass´y

Roller Ass´y

8

Stopper Washer

Stopper Washer

9

Штифт

Штифт

10

Шплинт

Шплинт

11

Lever Axle

Lever Axle

12

Spring Seat

Spring Seat

13

Spring (blue / Green, 579-1157n / 130-260lbs)

Spring (blue / Green, 579-1157n / 130-260lbs)

14

Spring Cover Ass'y. Includes 14 To 15

Spring Cover Ass'y. Includes 14 To 15

15

Втулка

Втулка

16

Socket Head Screw M8 X 40

Socket Head Screw M8 X 40

17

Lock Washer M8

Lock Washer M8

18

Governor Cup

Governor Cup

19

Ramp (412)

Ramp (412)

20

Spring Pin M10 X 22

Spring Pin M10 X 22

21

Hex. Flange Screw M6 X 18, Scotch Grip

Hex. Flange Screw M6 X 18, Scotch Grip

22

Calibration Screw

Calibration Screw

23

Шайба

Шайба

24

Hex. Flange Elastic Nut M6

Hex. Flange Elastic Nut M6

25

Кольцо

Кольцо

26

Slider Shoe

Slider Shoe

27

Ring Gear

Ring Gear

28

Hex. Flange Screw M8 X 16, Scotch Grip

Hex. Flange Screw M8 X 16, Scotch Grip

29

Крышка

Крышка

30

Hex. Flange Screw M6 X 12, Scotch Grip

Hex. Flange Screw M6 X 12, Scotch Grip

31

Пружинная шайба

Пружинная шайба

32

Drive Pulley Bolt

Drive Pulley Bolt

33

Drive Pulley Bolt Decal

Drive Pulley Bolt Decal

34

Driven Pulley Ass´y. Includes 34 To 54

Driven Pulley Ass´y. Includes 34 To 54

35

Fixed Flange Ass'y. Includes 35 To 39

Fixed Flange Ass'y. Includes 35 To 39

36

Ролик

Ролик

37

Шпилька

Шпилька

38

Lock Washer M8

Lock Washer M8

39

Spring Pin M3 X 30

Spring Pin M3 X 30

40

Sliding Flange Ass'y. Includes 40 To 42

Sliding Flange Ass'y. Includes 40 To 42

41

Втулка

Втулка

42

Пружинное стопорное кольцо

Пружинное стопорное кольцо

43

Cam Ass'y (47/44º). Includes 43 To 45

Cam Ass'y (47/44º). Includes 43 To 45

44

Втулка

Втулка

45

Пружинное стопорное кольцо

Пружинное стопорное кольцо

46

Spring (green, 800-1350n / 179-303lbs)

Spring (green, 800-1350n / 179-303lbs)

47

Swivel Abutment

Swivel Abutment

48

Button Head Torx Screw M8 X 25

Button Head Torx Screw M8 X 25

49

Pulley Adjuster Ass'y. Includes 49 To 52

Pulley Adjuster Ass'y. Includes 49 To 52

50

Socket Hd Screw M5 X 25

Socket Hd Screw M5 X 25

51

Flat Washer M5

Flat Washer M5

52

Elastic Stop Nut M5

Elastic Stop Nut M5

53

Шайба

Шайба

54

Подшипник

Подшипник

55

Ремень

Ремень

56

Belt Guard

Belt Guard

57

Belt Guard Security Label

Belt Guard Security Label

58

Спинка

Спинка

59

заклёпка

заклёпка

60

Направляющая

Направляющая

61

Cvt Air Duct

Cvt Air Duct

62

Pop Rivet 3/16"

Pop Rivet 3/16"

63

Стопор

Стопор

64

заклёпка

заклёпка

65

Front Support

Front Support

66

Pop Rivet 3/16"

Pop Rivet 3/16"

67

Шайба

Шайба

68

Спинка

Спинка

69

заклёпка

заклёпка

70

Belt Guard Bracket

Belt Guard Bracket

71

Torx Truss Screw M5 X 14

Torx Truss Screw M5 X 14

72

Hair Pin

Hair Pin
