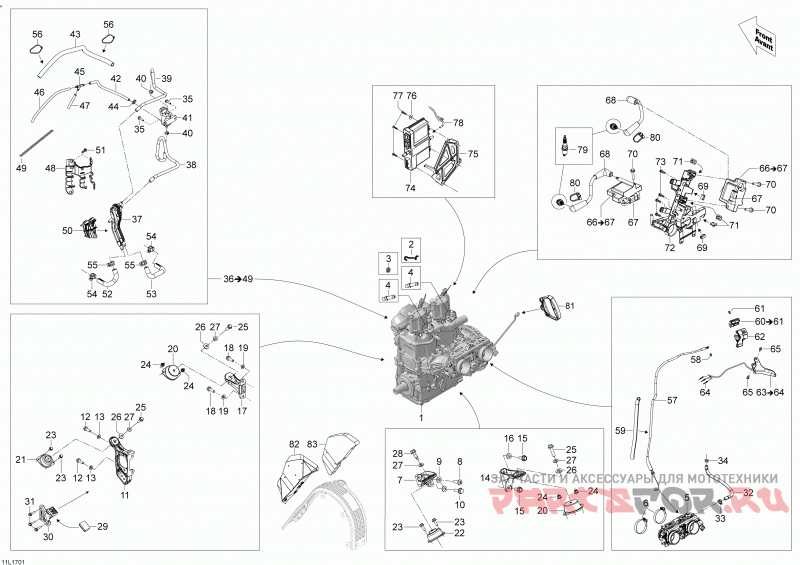

Двигатель и крепление для снегоходов Lynx (Bombardier) Rave (2-Stroke) (2017)

Москва и регионы России

Двигатель и крепление

Lynx (Bombardier) Rave (2-Stroke)

Двигатель и крепление

#

oem код

название

цена

1

Engine 600ho E-tec

Engine 600ho E-tec

2

Lock

Lock

3

Push Nut

Push Nut

4

Hose Nipple

Hose Nipple

5

Корпус Дросселя

Корпус Дросселя

6

Зажим

Зажим

7

Rear Support (pto)

Rear Support (pto)

8

Torx Screw M8 X 25, Scotch Grip

Torx Screw M8 X 25, Scotch Grip

9

Conical Spring Washer M8

Conical Spring Washer M8

10

Hex. Flange Screw M8 X 25, Scotch Grip

Hex. Flange Screw M8 X 25, Scotch Grip

11

Front Support (pto)

Front Support (pto)

12

Hex. Flange Screw M8 X 25, Scotch Grip

Hex. Flange Screw M8 X 25, Scotch Grip

13

Conical Spring Washer M8

Conical Spring Washer M8

14

Rear Support (mag)

Rear Support (mag)

15

Hex. Flange Screw M8 X 20, Scotch Grip

Hex. Flange Screw M8 X 20, Scotch Grip

16

Conical Spring Washer M8

Conical Spring Washer M8

17

Front Support (mag)

Front Support (mag)

18

Hex. Flange Screw M8 X 25, Scotch Grip

Hex. Flange Screw M8 X 25, Scotch Grip

19

Conical Spring Washer M8

Conical Spring Washer M8

20

Rubber Mount

Rubber Mount

21

Rubber Mount

Rubber Mount

22

Rubber Mount

Rubber Mount

23

Hex. Flange Screw M6 X 16, Scotch Grip

Hex. Flange Screw M6 X 16, Scotch Grip

24

Hex. Flange Elastic Nut M6

Hex. Flange Elastic Nut M6

25

Hex. Flange Screw M8 X 30

Hex. Flange Screw M8 X 30

26

Шайба

Шайба

27

Conical Spring Washer M8

Conical Spring Washer M8

28

Hex. Screw M8

Hex. Screw M8

29

Стопор

Стопор

30

Stopper Support

Stopper Support

31

Hex. Flange Screw M6 X 25, Scotch Grip

Hex. Flange Screw M6 X 25, Scotch Grip

32

Шланг

Шланг

33

Зажим

Зажим

34

Зажим

Зажим

35

Hex. Flange Screw K50 X 16

Hex. Flange Screw K50 X 16

36

Manifold Ass´y. Includes 36 To 49

Manifold Ass´y. Includes 36 To 49

37

Manifold

Manifold

38

Hose (275mm)

Hose (275mm)

39

Hose (410mm)

Hose (410mm)

40

Crimp Clamp

Crimp Clamp

41

Solenoid Valve

Solenoid Valve

42

Hose (220mm)

Hose (220mm)

43

Tubing

Tubing

44

Tie Rap 94mm

Tie Rap 94mm

45

T-fitting

T-fitting

46

Hose (180mm)

Hose (180mm)

47

Hose (50mm)

Hose (50mm)

48

Clip Ass´y

Clip Ass´y

49

Пружина

Пружина

50

Суппорт

Суппорт

51

Hex. Hd Forming Screw M5 X 11

Hex. Hd Forming Screw M5 X 11

52

Шланг

Шланг

53

Шланг

Шланг

54

Spring Clamp

Spring Clamp

55

Crimp Clamp

Crimp Clamp

56

Tie Rap 94mm

Tie Rap 94mm

57

Throttle Cable

Throttle Cable

58

Пружинное стопорное кольцо

Пружинное стопорное кольцо

59

Tubing 9mm

Tubing 9mm

60

Upper Housing. Includes 60 To 61

Upper Housing. Includes 60 To 61

61

Set Screw M8 X 10

Set Screw M8 X 10

62

Lower Housing

Lower Housing

63

Throttle Handle Ass'y. Includes 63 To 64

Throttle Handle Ass'y. Includes 63 To 64

64

Male Terminal

Male Terminal

65

Shoulder Screw

Shoulder Screw

66

Ignition Coil. Includes 66 To 67

Ignition Coil. Includes 66 To 67

67

Male Housing, 3 Circuits

Male Housing, 3 Circuits

68

Ignition Cable

Ignition Cable

69

Зажим

Зажим

70

Hex. Flange Screw M6 X 30

Hex. Flange Screw M6 X 30

71

Гайка

Гайка

72

Суппорт

Суппорт

73

Hex. Flange Screw K50 X 16

Hex. Flange Screw K50 X 16

74

Calibrated Module 600 E-tec

Calibrated Module 600 E-tec

75

Calibrated Module Support

Calibrated Module Support

76

Шайба

Шайба

77

Truss Head Torx Screw K50 X 20

Truss Head Torx Screw K50 X 20

78

Шланг

Шланг

79

Spark Plug (pzfr6f)

Spark Plug (pzfr6f)

80

Зажим

Зажим

81

Starter Grip

Starter Grip

82

Noise Shield

Noise Shield

83

Noise Foam

Noise Foam
