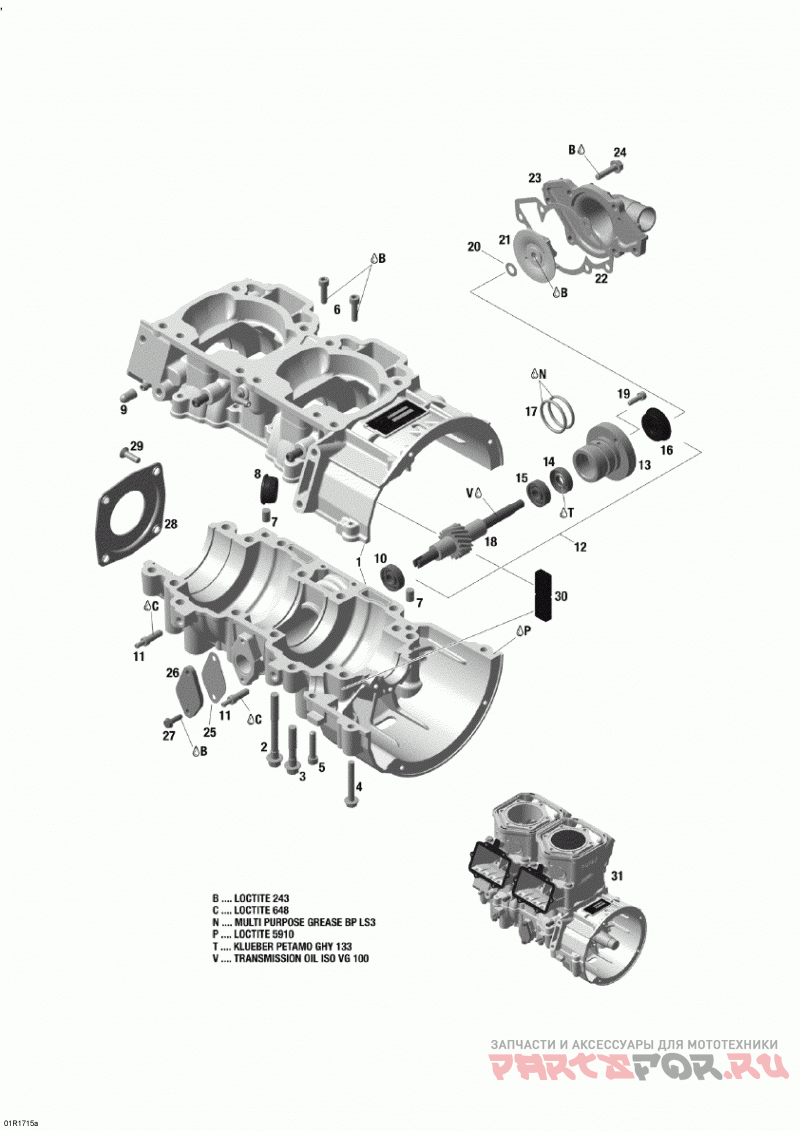

01- Crankcase And Water Pump - 600 E-TEC

Lynx (Bombardier) Rave (2-Stroke)

Lynx (Bombardier)
#oem кодцена
1
420890229
Crankcase Ass'y. Includes 1 To 10
2
420640836
Hex. Collar Screw M8 X 75. Tightening Torque 28-30 Nm
3
420640431
Hex. Collar Screw M8 X 45. Tightening Torque 28-30 Nm
4
420640311
Hex. Collar Screw M6 X 45. Tightening Torque 8-10 Nm
5
205063044
Socket Head Screw M6 X 30. Tightening Torque 8-10 Nm
6
420840401
Socket Head Screw M6 X 22. Tightening Torque 8-10 Nm
7
420632010
Pin 8 X 12
8
420660890
Cable Grommet
9
420960770
Крышка
10
420232100
Подшипник
11
420956070
Обратный клапан
12
420837421
Water Pump/oil Pump Ass'y. Includes 12 To 18
13
XXX
Step Collar
14
420230195
Oil Seal. Included In Gasket Kit
15
420232100
Подшипник
16
420650370
Oil Seal. Included In Gasket Kit
17
420950890
O-ring. Included In Gasket Kit
18
XXX
Water Pump Shaft
19
420840511
Allen Screw M5 X 16. Tightening Torque 5-6 Nm
20
420227945
Шайба
21
420222505
Water Impeller. Tightening Torque 4-5 Nm
22
420931810
Gasket. Included In Gasket Kit
23
420922630
Корпус водяной помпы
24
420240034
Hex. Screw M6 X 25. Tightening Torque 12-14 Nm
25
420931566
Gasket. Included In Gasket Kit
26
420810827
Cover Plate
27
420941925
Tapping Screw M5 X 16. Tightening Torque 5-6 Nm
28
420812420
Oil Seal Cover
29
420941436
Socket Head Screw M6 X 20. Tightening Torque 10-12 Nm
30
420960925
Резиновые стопоры
31
300059354
Short Block 593 Ho E-tec
B
XXX
Loctite 243
C
XXX
Loctite 609
N
XXX
Multipurpose Grease Bp Ls3
P
XXX
Loctite 5910
T
XXX
Grease
V
XXX
Transmission Oil
