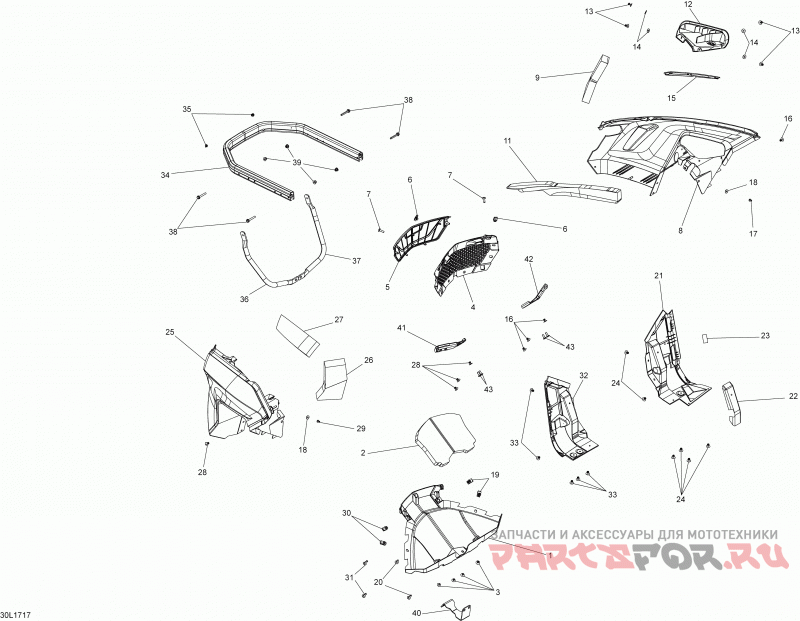

Защита и бампер

Lynx (Bombardier) Commander Touratech

Lynx (Bombardier)
#oem кодцена
1
502007184
Black Bottom Pan Front
2
502007002
Изолятор
3
293150103
Black Pop Rivet 3/16"
4
502007145
Grill
5
502007393
Front Grill With Mesh
6
250000048
Panel Nut M6 X 1.0
7
250000722
Torx Screw M6 X 20
8
502007553
Black Rh Bottom Pan Ass´y. Includes 8 To 11
9
502007526
Изолятор
11
517305977
Изолятор
12
517305975
Bottom Pan Air Vent Rh
13
293150104
Pop Rivet 3/16"
14
250200025
Washer M5
15
517305976
Bottom Pan Grill Rh
16
293150104
Pop Rivet 3/16"
17
390402200
Pop Rivet 3/16"
18
234052450
Шайба
19
250000048
Panel Nut M6 X 1.0
20
250000722
Torx Screw M6 X 20
21
502007191
Black Bottom Pan Rear Ass'y Rh. Includes 21 To 23
22
502007038
Фольга аллюминевая
23
44110
Aluminum Foil
24
293150104
Pop Rivet 3/16"
25
502007667
Black Lh Bottom Pan Ass´y. Includes 25 To 27
26
502007003
Изолятор
27
502007185
Изолятор
28
293150104
Pop Rivet 3/16"
29
390402200
Pop Rivet 3/16"
30
250000048
Panel Nut M6 X 1.0
31
250000722
Torx Screw M6 X 20
32
502007195
Black Bottom Pan Rear Ass'y Lh
33
293150104
Pop Rivet 3/16"
34
502007685
Black Bumper
35
293730047
Black Dart 8 Mm
36
502007014
Lh Bumper Support
37
502007015
Rh Bumper Support
38
207664044
Hex. Flanged Screw M6 X 40
39
233261414
Hex. Flanged Elastic Nut M6
40
502007558
Front Bumper Center Bracket
41
502007559
Front Bumper Bracket Lh
42
502007560
Front Bumper Bracket Rh
43
250000717
Torx Head Screw M6 X 16
