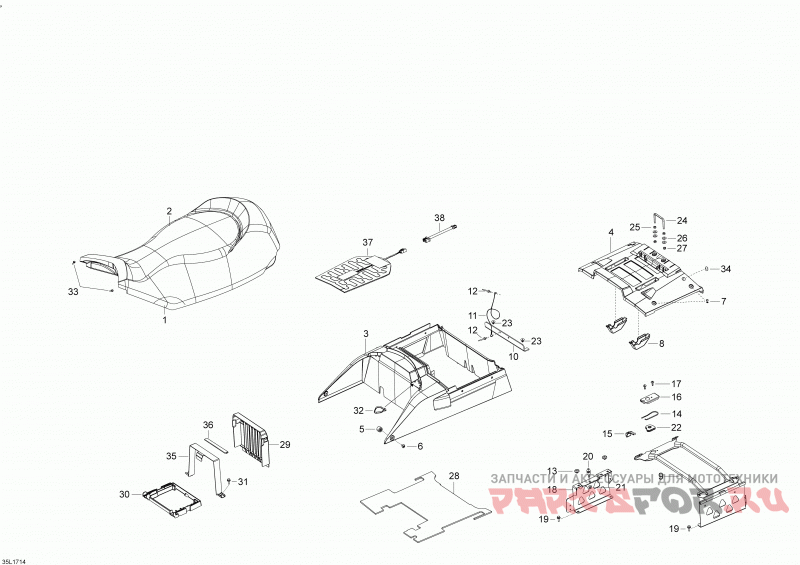

Сидение для снегоходов Lynx (Bombardier) Commander STD (2017)

Москва и регионы России

Сидение

Lynx (Bombardier) Commander STD

Сидение

#

oem код

название

цена

1

Front Seat Foam

Front Seat Foam

2

Front Seat Cover

Front Seat Cover

3

Black Storage Box

Black Storage Box

4

Black Storage Box Cover

Black Storage Box Cover

5

Втулка

Втулка

6

Torx Truss Screw M6 X 12

Torx Truss Screw M6 X 12

7

Pop Rivet 3/16

Pop Rivet 3/16

8

Крышка

Крышка

9

Fastening Tube

Fastening Tube

10

Cable Support Plate

Cable Support Plate

11

Seat Retainer Cable

Seat Retainer Cable

12

Pop Rivet 3/16

Pop Rivet 3/16

13

Rubber Plug

Rubber Plug

14

Latch Spring

Latch Spring

15

Puller

Puller

16

Lock Pin Cover

Lock Pin Cover

17

Forming Screw M5 X 16

Forming Screw M5 X 16

18

Видимая пластина

Видимая пластина

19

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 16

20

Lock Pin

Lock Pin

21

Elastic Flange Nut M6

Elastic Flange Nut M6

22

Lock Pin Guide

Lock Pin Guide

23

Pop Rivet 3/16

Pop Rivet 3/16

24

Fastener Pin

Fastener Pin

25

Nut M6

Nut M6

26

Шайба

Шайба

27

Elastic Stop Nut M6

Elastic Stop Nut M6

28

Foam

Foam

29

Battery Cover

Battery Cover

30

Battery Support

Battery Support

31

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 16

32

Tie Rap

Tie Rap

33

Forming Screw M5 X 16

Forming Screw M5 X 16

34

Крышка

Крышка

35

Battery Strap

Battery Strap

36

Strap Cover

Strap Cover

37

Non Applicable

Non Applicable

38

Non Applicable

Non Applicable
