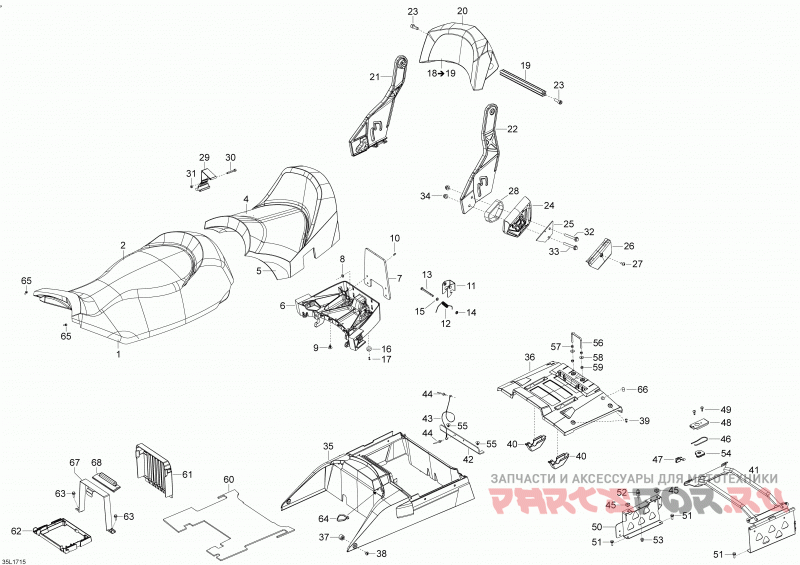

09- Seat 2 UP

Lynx (Bombardier) Commander LTD

Lynx (Bombardier)
#oem кодцена
1
510005999
Front Seat Foam
2
510006032
Front Seat Cover
4
510006042
Rear Seat Cover
5
510006094
Rear Seat Foam
6
510004816
Seat Base
7
510005330
Пластина
8
234062410
Шайба
9
414644300
Dart
10
293150067
заклёпка
11
708000144
Lock
12
708000369
Пружина
13
207068044
Hex. Cap Screw M6 X 80
14
732610072
Push Nut
15
234061410
Шайба
16
510006005
Stopper Rubber
17
293150015
Pop Rivet 1/8"
18
510006205
Backrest Foam. Includes 18 To 19
19
XXX
Backrest Axle
20
510006049
Backrest Cover
21
510005420
Rh Arm
22
510005419
Lh Arm
23
250000553
Forming Screw M10 X 25
24
510005409
Руль
25
510005936
Support Plate
26
510005444
Handle Cover
27
250000676
Forming Screw M5 X 16
28
510005613
Адаптер
29
510005139
Security Lock
30
205065044
Socket Hd Screw M6 X 50
31
232561414
Elastic Stop Nut M6
32
207689044
Hex. Flange Screw M8 X 90
33
207688544
Hex. Flange Screw M8 X 85
34
233281414
Elastic Flange Nut M8
35
510006243
Black Storage Box
36
510006244
Black Storage Box Cover
37
510005147
Втулка
38
250000675
Torx Truss Screw M6 X 12
39
293150104
Pop Rivet 3/16"
40
510004999
Крышка
41
510005714
Fastening Tube
42
510005156
Cable Support Plate
43
293750070
Seat Retainer Cable
44
293150163
Pop Rivet 3/16"
45
605452114
Rubber Plug
46
269700017
Latch Spring
47
510005072
Puller
48
510005698
Lock Pin Cover
49
250000676
Forming Screw M5 X 16
50
510005845
Видимая пластина
51
207561644
Hex. Flange Screw M6 X 16
52
605452035
Lock Pin
53
233261416
Elastic Flange Nut M6
54
510005044
Lock Pin Guide
55
293150104
Pop Rivet 3/16"
56
510004876
Fastener Pin
57
250000135
Nut M6
58
20117
Шайба
59
232561414
Elastic Stop Nut M6
60
510005043
Foam
61
510005079
Battery Cover
62
515176804
Battery Support
63
207561644
Hex. Flange Screw M6 X 16
64
605627000
Tie Rap
65
250000676
Forming Screw M5 X 16
66
572051500
Крышка
67
510005143
Battery Strap (18ah Battery)
68
510005146
Strap Cover (18ah Battery)
