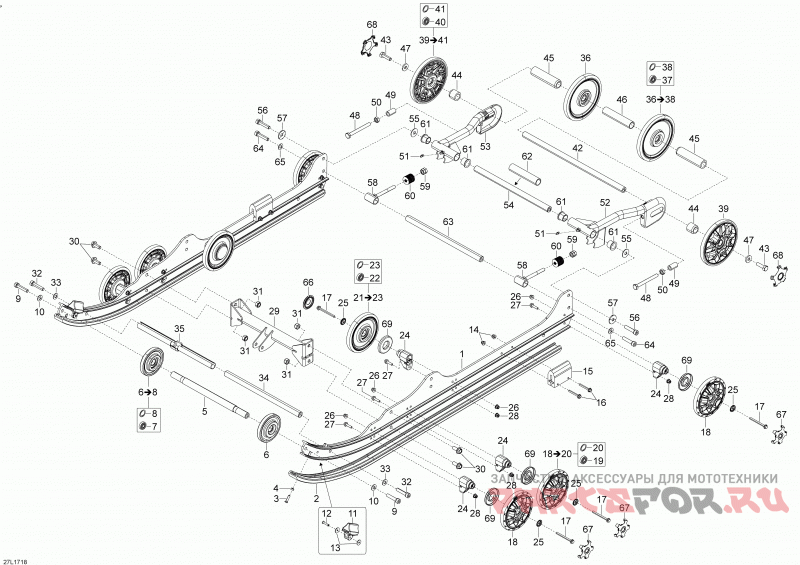

Задняя подвеска

Lynx (Bombardier) Commander Grand Tourer

Lynx (Bombardier)
#oem кодцена
1
503194374
Red Runner
2
503192843
Slider Shoe
3
208562531
Screw M6 X 25
4
232561414
Elastic Stop Nut M6
5
503192889
Front Wheel Shaft
6
503192611
Wheel 100mm. Includes 6 To 8
7
503190396
Подшипник
8
XXX
Пружинное стопорное кольцо
9
205504544
Socket Screw M10 X 45
10
234001410
Flat Washer M10
11
503192106
Резиновые стопоры
12
293150142
Pop Rivet 3/16"
13
503191273
Шайба
14
233261466
Elastic Flange Nut M6
15
570023100
Резиновые стопоры
16
207664554
Hex. Flange Screw M6 X 45
17
207667056
Hex. Flange Screw M6 X 70
18
503193734
Wheel 141mm. Includes 18 To 20
19
503190396
Подшипник
20
XXX
Пружинное стопорное кольцо
21
503191316
Wheel 141mm. Includes 21 To 23
22
503190396
Подшипник
23
415129371
Пружинное стопорное кольцо
24
503193894
Support Cast.
25
503191820
Шайба
26
233261466
Elastic Flange Nut M6
27
207662556
Hex. Flange Screw M6 X 25
28
233261466
Elastic Flange Nut M6
29
503193182
Center Shock Lower Support
30
207602587
Hex. Flange Screw M10 X 25
31
232500416
Elastic Stop Nut M10
32
205504544
Socket Screw M10 X 45
33
234001410
Washer Flat M10
34
503192927
Вал
35
605355263
Limiter Strap Retainer
36
503192140
Wheel 165mm. Includes 36 To 38
37
503190396
Подшипник
38
415129371
Пружинное стопорное кольцо
39
503193809
Wheel 165mm. Includes 39 To 41
40
503190396
Подшипник
41
415129371
Пружинное стопорное кольцо
42
503191408
Axle Rear
43
250000019
Hex. Screw M10 X 35
44
503192048
Проставка
45
503192671
Проставка
46
605448429
Support Pipe
47
503190439
Шайба
48
230100044
Hex. Cap Screw M10 X 100
49
503192696
Проставка
50
232006414
Nut M10
51
408200700
Grease Fitting
52
503194586
Lh Extension Swing
53
503194589
Rh Extension Swing
54
5347713
Вал
55
20116
Регулировочная прокладка
56
205505087
Socket Screw M10 X 45
57
512056700
Washer Lock
58
503192695
Adjustment Screw
59
232006414
Nut M10
60
25004
Cup Spring
61
31024
Подушка
62
605448429
Support Pipe
63
503192927
Вал
64
205504587
Socket Screw M10 X 45
65
234001410
Flat Washer M10
66
503192771
Black Cap
67
503193735
Black Cap
68
503193810
Black Cap
69
N/A
Seal Labyrinth. Non Applicable
1
503193092
Front Arm
2
408200700
Grease Fitting
3
250200131
Washer Spring Conical M12
4
250000555
Hex. Cap Screw M12 X 60
5
605354157
Вал
6
503193700
Втулка
7
207007044
Hex. Cap Screw M10 X 70
8
605355801
Шайба
9
232500416
Elastic Stop Nut M10
10
503183300
Шайба
11
5347719
Upper Shaft
12
31024
Подушка
13
250000549
Hex. Cap Screw M10 X 45
14
232500416
Elastic Stop Nut M10
15
XXX
Center Shock Ass'y. Includes 15 To 20
16
503193517
Shock. Model-std
16
503193521
Shock. Model-ecs
17
503192788
Spring (237mm - 70n/mm). Model-std
17
503193279
Spring (255mm - 30n/mm). Model-ecs
18
230078
Spring Seat
19
230076
Spring Seat
20
31094
Glide Bearing
21
207004544
Hex. Cap Screw M10 X 45
22
232500416
Elastic Stop Nut M10
23
503192344
Middle Beam. Model-std
23
503194092
Middle Beam. Model-ecs
24
250000556
Hex. Cap Screw M8 X 25
25
503192494
Шайба
26
233281414
Elastic Flange Nut M8
27
503193780
Limiter Strap. Model-std
27
605355116
Limiter Strap. Model-ecs
28
605455335
Гильца
29
207084544
Hex. Cap Screw M8 X 45
30
232581414
Elastic Stop Nut M8
31
503194194
Rear Shock Ass'y. Model-ecs
31
XXX
Rear Shock Ass'y. Includes 31 To 36, Model-std
32
503193859
Shock
33
605625009
Spring (280mm - 65n/mm)
34
230078
Spring Seat
35
230076
Spring Seat
36
31094
Glide Bearing
37
408200700
Grease Fitting
38
205004544
Socket Screw
39
205004544
Socket Screw. Model-std
39
231080044
Socket Hd Screw M10 X 100. Model-ecs
40
232500416
Elastic Stop Nut M10
41
5446652
Втулка
42
5446652
Bushing. Model-std
43
503194584
Rear Arm. Model-std
43
503194585
Rear Arm. Model-ecs
44
503194181
Track Support. Model-ecs
45
503194203
Sleeve. Model-ecs
46
503191926
Washer. Model-ecs
47
503193852
Idler Wheel 133mm
48
605454461
Гильца
49
207084544
Hex. Cap Screw M8 X 45
50
20077
Шайба
51
233281414
Elastic Flange Nut M8
52
503193700
Втулка
53
605354157
Вал
54
250000560
Socket Hd Screw M10 X 65
55
503191926
Шайба
56
232500416
Elastic Stop Nut M10
57
605355801
Шайба
58
31024
Подушка
59
572043500
Idler Wheel
60
503193330
Гильца
61
207083544
Hex. Cap Screw M8 X 35
62
20077
Шайба
63
232581414
Elastic Stop Nut M8
64
503192397
Вал
65
503192346
Rear Swing
66
503192341
Rear Swing Shaft
67
234001410
Washer Flat M10
68
205006044
Socket Hd Screw M10 X 60
69
233201414
Elastic Flange Nut M10
70
234001410
Flat Washer M10
71
207204044
Hex. Cap Screw M10 X 45
72
503194001
Cable Cover. Model-ecs
73
250000721
Trorx Truss Screw M6 X 16. Model-ecs
74
250000807
Torx Truss Screw M6 X 25. Model-ecs
75
503194033
Cable Cover. Model-ecs
76
518321570
Open Clamp. Model-ecs
77
210261040
Hex. Flange Screw M6 X 10. Model-ecs
78
250000807
Torx Truss Screw M6 X 25. Model-ecs
