Защита и бампер

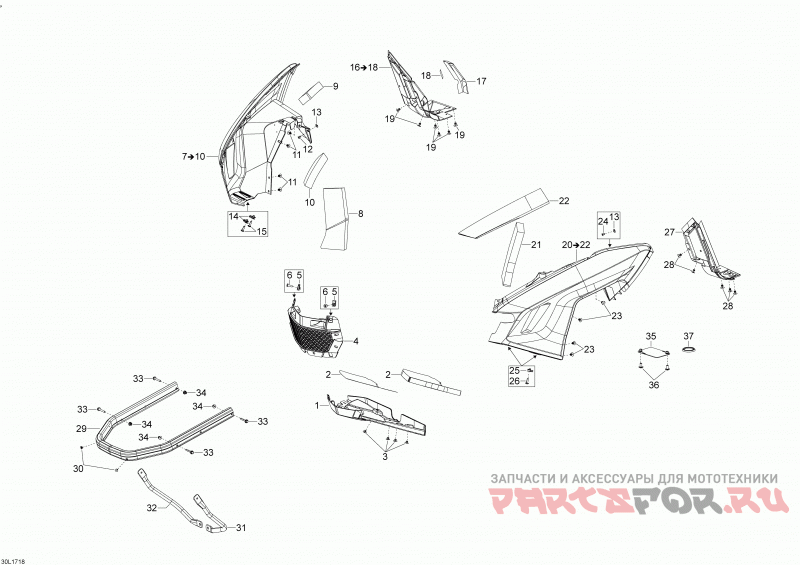

Lynx (Bombardier) Commander Grand Tourer

Lynx (Bombardier)
#oem кодцена
1
502007184
Black Front Bottom Pan
2
508000840
Heat Shield. Model-900 Ace
2
502007002
Insulator. Model-1200 4-tec
3
293150103
Pop Rivet 3/16"
4
502007145
Передняя решетка
5
250100113
Panel Nut M6
6
250000722
Torx Truss Screw M6 X 20
7
502007188
Black Rh Bottom Pan Ass´y. Includes 7 To 10
8
502007526
Изолятор
9
502007008
Изолятор
10
502007009
Изолятор
11
293150104
Pop Rivet 3/16"
12
390402200
Pop Rivet 3/16"
13
234052450
Flat Washer M5
14
250000048
Panel Nut M6
15
250000722
Torx Truss Screw M6 X 20
16
502007193
Black Rh Rear Bottom Pan Ass´y. Includes 16 To 18
17
502007038
Фольга аллюминевая
18
44110
Al-tape
19
293150104
Pop Rivet 3/16"
20
502007665
Black Lh Bottom Pan Ass´y. Includes 20 To 22
21
502007003
Изолятор
22
502007185
Изолятор
23
293150104
Pop Rivet 3/16"
24
390402200
Pop Rivet 3/16"
25
250000048
Panel Nut M6
26
250000722
Torx Truss Screw M6 X 20
27
502007195
Black Lh Rear Bottom Pan
28
293150104
Pop Rivet 3/16"
29
502007686
Red Bumper
30
293730047
Black Dart
31
502007014
Lh Bumper Support Tube
32
502007015
Rh Bumper Support Tube
33
207664044
Hex. Flange Screw M6 X 40
34
233261414
Elastic Flange Nut M6
35
518328317
Oil Plate. Model-900 Ace
36
250000767
Torx Truss Screw M6 X 12. Model-900 Ace
37
518329102
Oil Plate Cover. Model-1200 4-tec
