01- Engine And Engine Support 1200 4-TEC для снегоходов Lynx (Bombardier) Commander Grand Tourer (2017)

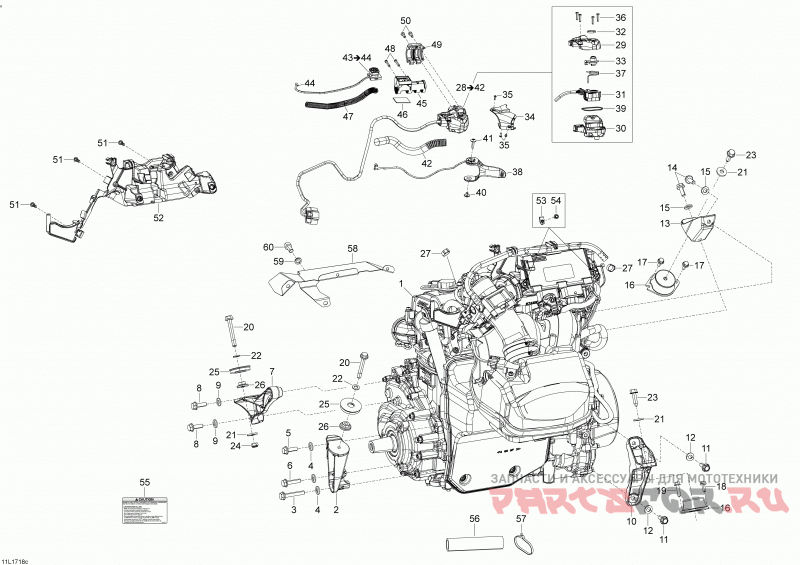

01- Engine And Engine Support 1200 4-TEC

Lynx (Bombardier) Commander Grand Tourer

01- Engine And Engine Support 1200 4-TEC

oem код

название

цена

XXX

Engine 1200 4-tec

512060591

Rear Support (pto)

207585086

Hex. Flange Screw M8 X 50, Scotch Grip

234281474

Conical Spring Washer M8

207582586

Hex. Flange Screw M8 X 25, Scotch Grip

207583586

Hex. Flange Screw M8 X 35, Scotch Grip

512060593

Front Support (pto)

207582586

Hex. Flange Screw M8 X 25, Scotch Grip

234281474

Conical Spring Washer M8

512060594

Rear Support (mag)

207582044

Hex. Flange Screw M8 X 20, Scotch Grip

234281474

Conical Spring Washer M8

512060596

Front Support (mag)

207582044

Hex. Flange Screw M8 X 20, Scotch Grip

234281474

Conical Spring Washer M8

512060729

Rubber Mount

207561644

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Hex. Flange Screw M6 X 16, Scotch Grip

207562534

Hex. Flange Screw M6 X 25, Scotch Grip

207586044

Hex. Flange Screw M8 X 60, Scotch Grip

Шайба

Шайба

Cone Screw M8 X 30

Hex. Elastic Nut M8

Стопор

Проставка

Crimp Clamp

Housing Ass'y. Includes 28 To 42

Кожух

Кожух

Датчик

Shaft Seal

Swivel

Крышка

Torx Screw 2.9 X 9.5

Torx Screw

Пружина

Руль

Кольцо

Винт

Torx Screw M5 X 20

Protector Tube

Kill Switch. Includes 43 To 44

Male Terminal

Суппорт

Friction Tape

Protector Tube

Torx Screw #8-18

Front Housing

Torx Screw M5 X 14

Hex. Flange Screw K50 X 16

512061012

Ecu Support

250000079

Panel Nut M5

207552044

Hex. Flange Screw M5 X 20

516005521

Engine Oil Level Caution Decal

Aluminum Coated Tube

Tie-rap 180mm

Heat Shield

Шайба

Socket Hd Screw M10 X 16
