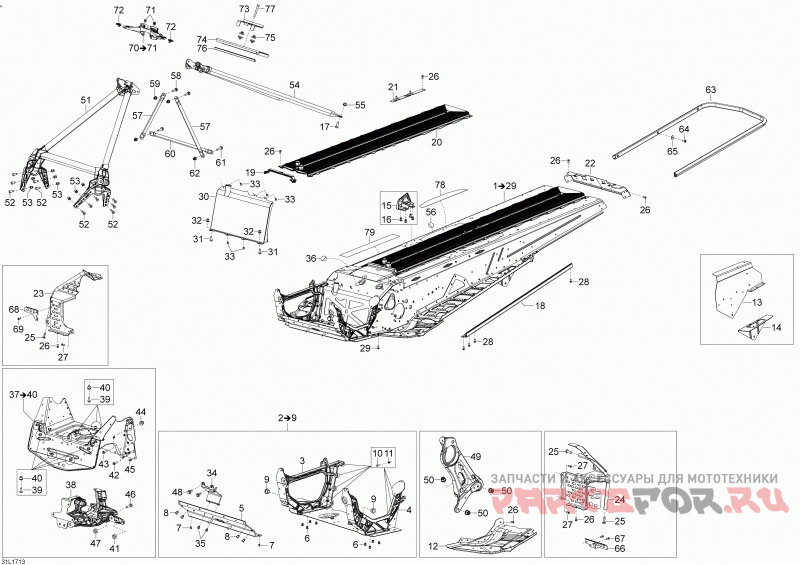

Рама

Lynx (Bombardier) BoonDocker DS

Lynx (Bombardier)
#oem кодцена
1
518328866
Green Frame 3900. Includes 1 To 29, Model-3900
1
518328863
Green Frame 4100. Includes 1 To 29, Model-4100
1
518329158
Black Frame 3900. Includes 1 To 29, Model-3900
1
518329159
Black Frame 4100. Includes 1 To 29, Model-4100
2
518327646
E Module. Includes 2 To 9
3
518326795
Rh Member
4
518326796
Lh Member
5
518326198
Front Member
6
390909100
заклёпка
7
293150120
заклёпка
8
293150119
заклёпка
9
505072690
Подушка
10
207662044
Hex. Flange Screw M6 X 20
11
233261414
Elastic Flange Nut M6
12
XXX
Lh Front Tunnel
13
518328718
Lh Rear Arm Support. Model-3900
13
518328944
Lh Rear Arm Support. Model-4100
13
518328719
Rh Rear Arm Support. Model-3900
13
518328945
Rh Rear Arm Support. Model-4100
14
XXX
Lh Rear Support
15
518328436
Rh Rear Base
15
518328435
Lh Rear Base
16
293150147
заклёпка
17
207182086
Hex. Cap Screw M8 X 20
18
518328898
Side Profile
19
518326656
Уплотнение
20
518326692
Rear Radiator 154". Model-3900
20
518326735
Rear Radiator 163". Model-4100
21
XXX
Battery Support
22
518327240
Rear Cap
23
518328940
Rh Stirrup
24
518328528
Lh Stirrup
25
250000752
Pan Hd Torx Screw M8 X 25
26
390909200
заклёпка
27
390909100
заклёпка
28
293150119
заклёпка
29
293150096
заклёпка
30
518326485
Front Radiator
31
207662044
Hex. Flange Screw M6 X 20
32
233261414
Elastic Flange Nut M6
33
390909200
заклёпка
34
518325943
Mag Support
35
293150119
заклёпка
36
518325560
Adhesive Patch
37
518328394
Cross Member. Includes 37 To 40
38
518327487
Суппорт
39
207662044
Hex. Flange Screw M6 X 20
40
233261414
Elastic Flange Nut M6
41
233281414
Elastic Flange Nut M8
42
210262050
Forming Screw M6 X 20
43
207662544
Hex. Flange Screw M6 X 25. Model-std
43
207563034
Hex. Flange Screw M6 X 30. Model-air Radiator
44
233261414
Elastic Flange Nut M6
45
293150179
заклёпка
46
207662044
Hex. Flange Screw M6 X 20
47
233261414
Elastic Flange Nut M6
48
207661644
Hex. Flange Screw M6 X 16
49
518327460
Pulley Support
50
233281414
Elastic Flange Nut M8
51
518327565
Front Member
52
207662044
Hex. Flange Screw M6 X 20
53
233261414
Elastic Flange Nut M6
54
518327237
Black Rear Member. Black Edition
54
518328982
Yellow Rear Member. Std
55
233281414
Elastic Flange Nut M8
56
518325560
Adhesive Patch
57
518325114
Суппорт
58
207662056
Hex. Flange Screw M6 X 20
59
233261416
Elastic Flange Nut M6
60
518325115
Upper Column
61
207662556
Hex. Flange Screw M6 X 25
62
233261416
Elastic Flange Nut M6
63
518327555
Black Rear Bumper
64
250000779
Torx Truss Screw M6 X 18
65
224061201
Шайба
66
518327613
Lh Spring Support Plate
67
293150103
Pop Rivet 3/16"
68
518327614
Rh Spring Support Plate
69
390909200
заклёпка
70
518327145
Support. Includes 70 To 71
71
XXX
Втулка
72
250000079
Panel Nut M5
73
513033746
Upper Support Plate
74
513033747
Lower Support Plate
75
605452114
Rubber Plug
76
XXX
Sealing List
77
205065044
Socket Hd Screw M6 X 50
78
516006448
Fuel Tank Protection Decal
79
516007041
Fuel Tank Protection Decal
