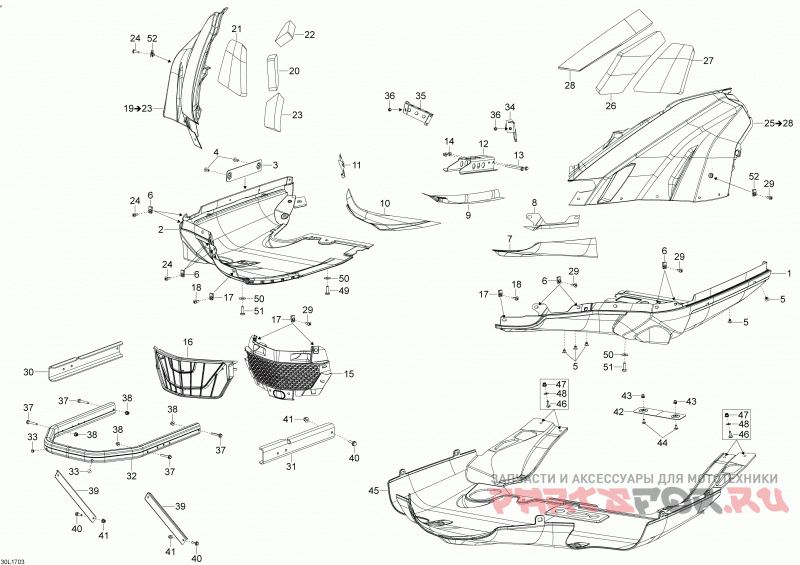

Защита и бампер

Lynx (Bombardier) 69 YETI ARMY

Lynx (Bombardier)
#oem кодцена
1
502007447
Black Lh Lower Bottom Pan
2
502007446
Black Rh Lower Bottom Pan
3
502007255
Heat Insulation Plate
4
293150211
заклёпка
5
293150108
Pop Rivet 3/16"
6
250000048
Extruded Panel Nut M6
7
508000832
Heat Shield
8
508000835
Heat Shield
9
508000837
Heat Shield
10
508000833
Heat Shield
11
508000836
Heat Shield
12
502007688
Суппорт
13
207667056
Hex. Flange Screw M6 X 70
14
233261414
Hex. Flange Elastic Nut M6
15
502007140
Передняя решетка
17
250000048
Extruded Panel Nut M6
18
250000722
Torx Truss Screw M6 X 20
19
502007292
Black Rh Bottom Pan Ass'y. Includes 19 To 23
20
502007133
Изолятор
21
502007132
Изолятор
22
508000828
Heat Shield
23
502007009
Изолятор
24
250000722
Torx Truss Screw M6 X 20
25
502007294
Black Lh Bottom Pan Ass'y. Includes 25 To 28
26
502007088
Изолятор
27
502007131
Изолятор
28
502007185
Изолятор
29
250000722
Torx Truss Screw M6 X 20
30
502007379
Rh Bumper Support
31
502007380
Lh Bumper Support
32
502007484
Desert Sand Bumper (short)
33
293730047
Black Dart
34
502007535
Lh Bottom Pan Fastener
35
502007536
Rh Bottom Pan Fastener
36
605636003
Clinch Nut Hexsert M6
37
207664044
Hex. Flange Screw M6 X 40
38
233261414
Elastic Flange Nut M6
39
502007382
Bumper Support
40
207662044
Hex. Flange Screw M6 X 20
41
233261414
Elastic Flange Nut M6
42
518329004
Oil Plate
43
605636003
Clinch Nut Hexsert M6
44
250000722
Torx Screw M6 X 20
45
502007511
Skid Plate
46
250000807
Torx Screw M6 X 20
47
233261494
Hex. Elastic Flange Nut M6
48
20117
Washer M6
49
250000752
Torx Screw M8 X 25
50
234082410
Шайба
51
250000722
Torx Screw M6 X 20
52
250000048
Extruded Panel Nut M6
