02- Air Intake Manifold And Throttle Body - 1200 4-TEC для снегоходов Lynx (Bombardier) 69 Ranger Alpine (2017)

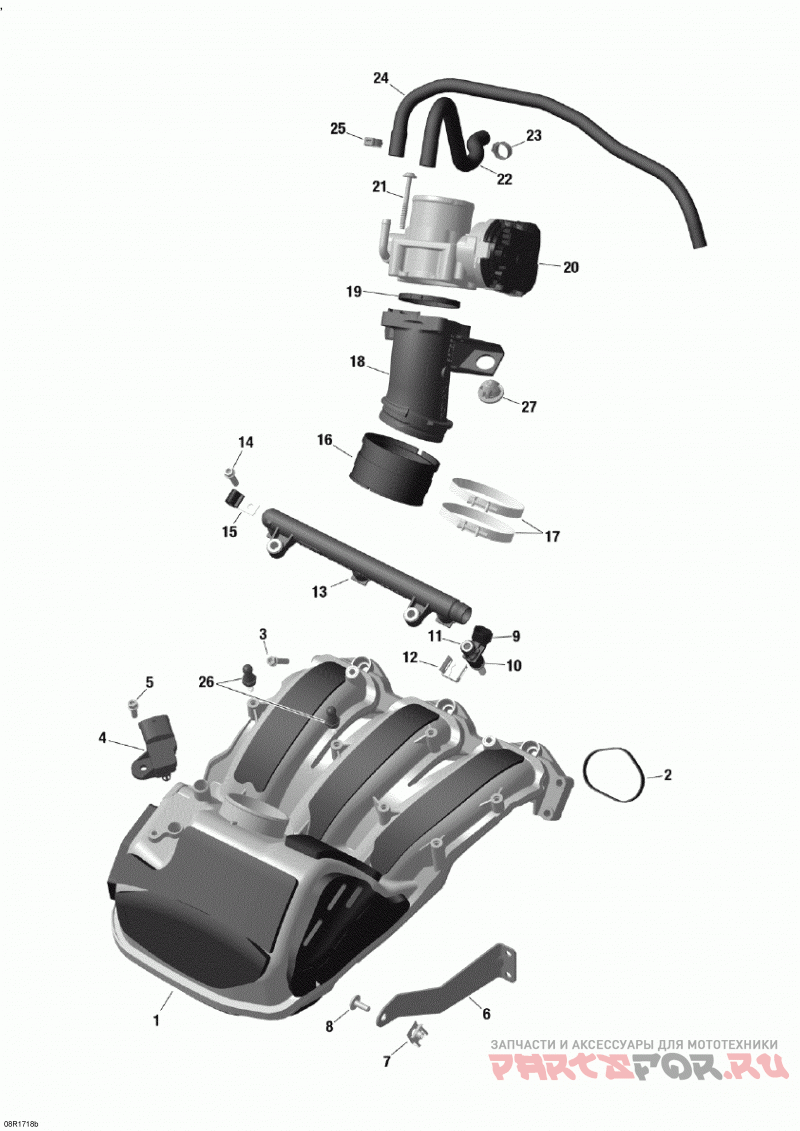

02- Air Intake Manifold And Throttle Body - 1200 4-TEC

Lynx (Bombardier) 69 Ranger Alpine

02- Air Intake Manifold And Throttle Body - 1200 4-TEC

oem код

название

цена

420667446

Air Intake Manifold. Includes 1 To 2

420950745

Gasket. Included In Gasket Kit

420440647

Flange Torx Screw M6 X 30. Tightening Torque 11 Nm

707000995

Pressure And Temperature Sensor

420440162

Flange Torx Screw M6 X 16. Tightening Torque 5,5 Nm

420951011

Суппорт

420942108

Nut M6

420241524

Torx Screw M6 X 16. Tightening Torque 9 Nm

420874841

Injection Valve. Includes 12 To 14

420431890

O-ring. Included In Gasket Kit

420631220

O-ring. Included In Gasket Kit

420853030

Зажим

420874810

Fuel Rail

420440234

Flange Torx Screw M6 X 25. Tightening Torque 11 Nm

Cable Clamp

Connecting Socket

Зажим

Connecting Tube

Прокладка

Корпус Дросселя

Torx Screw M6 X 50. Tightening Torque 9 Nm

Molded Hose

Зажим

Molded Hose

Зажим

Distance Screw. Tightening Torque 5 Nm

420201630

Rubber Cap
